CRANK BALANCER (MODEL P/R/S/T)

DR650RSEU 1992 (N) GERMANY (E22)

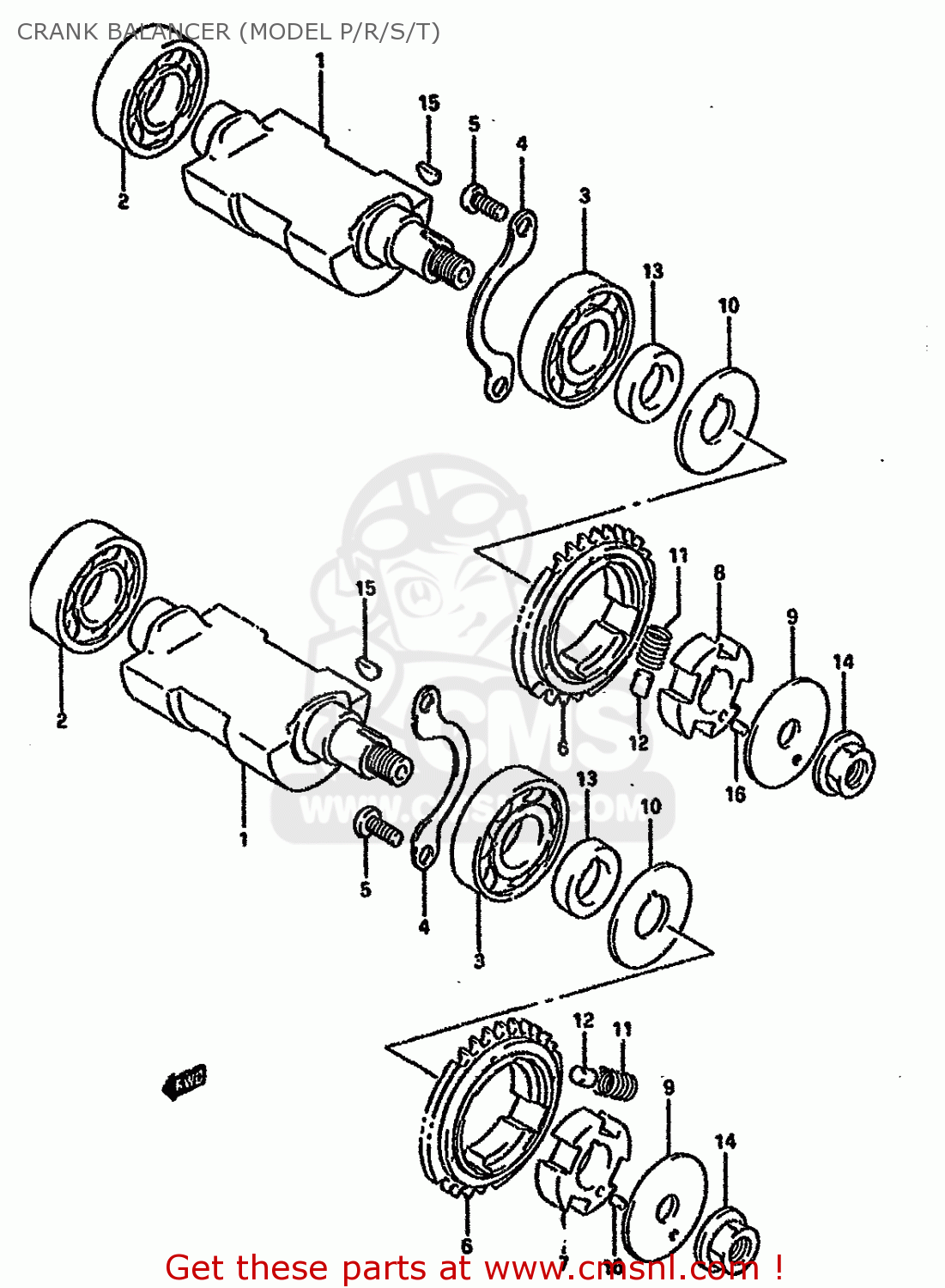

Crank balancer (model p/r/s/t) diagram DR650RSEU 1992 (N) GERMANY (E22)

CRANK BALANCER (MODEL P/R/S/T) DR650RSEU 1992 (N) GERMANY (E22)
CRANK BALANCER (MODEL P/R/S/T) DR650RSEU 1992 (N) GERMANY (E22)
CRANK BALANCER (MODEL P/R/S/T) DR650RSEU 1992 (N) GERMANY (E22)
prices are in EUR
ref
part #
description
quantity
1-1
1265112D11
ref: 1-1
MODEL P/R/S
BALANCER,CRANK
1265112D11
€ 119.50
1-2
1265112D20
ref: 1-2
MODEL T
BALANCER,CRANK
€ 0.00
2
0926220106
ref: 2
BEARING(20X42X12)
0926220106
€ 20.50
3
0926220122
ref: 3
BEARING(20X47X12)
0926220122
€ 27.00
4
1265937400
ref: 4
RETAINER,CRANK BAL BEARING
1265937400
€ 2.00
5
0211206123
ref: 5
SCREW
0211206123
€ 1.50
6
1266512D01
ref: 6
-12665-12D00
SPROCKET,CRANK BAL DRIVEN
1266512D01
€ 96.50
7
1266612E00
ref: 7
-12666-12D00
RACE,BALANCER DRIVER SPOCKET,INNER
€ 80.50
8
1266612E00
ref: 8
-12676-12D00
RACE,BALANCER DRIVER SPOCKET,INNER
€ 80.50
9-1
0916610003
ref: 9-1
MODEL P/R/S
WASHER (10X39X1.6)
0916610003
€ 6.50
9-2
0916612009
ref: 9-2
MODEL T
WASHER,DRIVEN SPROCKET
€ 0.00
10
0916616019
ref: 10
WASHER
0916616019
€ 6.50
11
0944009036
ref: 11
SPRING
0944009036
€ 3.50
12
0926106004
ref: 12
PIN(6X8.8)
0926106004
€ 1.50
13
0918016047
ref: 13
SPACER (16X26X7.5)
€ 10.00
14-1
0915910046
ref: 14-1
MODEL P/R/S
NUT (M10X1.25X9)
0915910046
€ 2.00
14-2
0915912048
ref: 14-2
MODEL T
NUT
€ 6.00
15
0834131039
ref: 15
KEY
0834131039
€ 2.00
16
0926103018
ref: 16
MODEL P/R/S
PIN(3X11.3)
0926103018
€ 2.00
