REAR SWINGING ARM
DR650RSEU 1992 (N) GERMANY (E22)

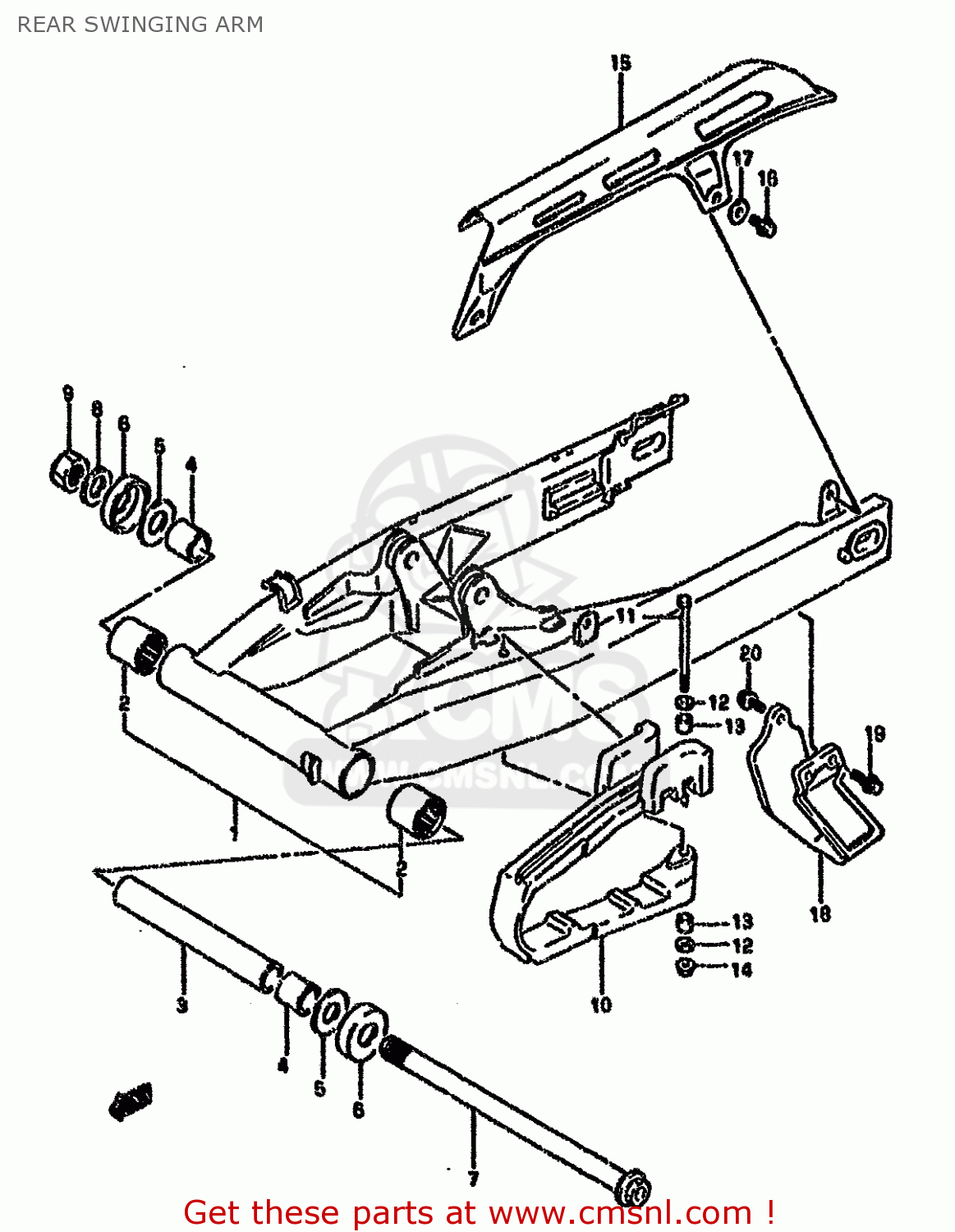

Rear swinging arm diagram DR650RSEU 1992 (N) GERMANY (E22)
REAR SWINGING ARM DR650RSEU 1992 (N) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
6100014A7013L
ref: 1-1
MODEL M/N-61000-12D3
SWING ARM ASSEMBLY,REAR
€ 476.50
1-2
6100012D3013L
ref: 1-2
MODEL P/R/S/T
SWING ARM ASSEMBLY,REAR
€ 476.50
2
0926322022
ref: 2
BEARING(22X29X20)
€ 27.00
3
6128214A00
ref: 3
SPACER,RR SWGARM PIVOT CTR
€ 15.00
4
6125132410
ref: 4
SPACER,RR SWGARM PIVOT
€ 8.50
5
0821116341
ref: 5
WASHER
€ 2.00
6
6126214A00
ref: 6
SEAL,RR SWGARM PIVOT DUST
€ 7.50
7-1
6121112D00
ref: 7-1
MODEL M/N
SHAFT,REAR SWING ARM
€ 39.00
7-2
6121112D10
ref: 7-2
MODEL P/R/S/T
SHAFT,RR SWINGINGARM PIVOT
€ 39.00
8-1
0832211165
ref: 8-1
MODEL M/N
WASHER (BLACK)
€ 2.00
8-2
0832211168
ref: 8-2
MODEL P
WASHER
€ 2.00
8-3
0832201163
ref: 8-3
MODEL R/S/T
WASHER, FIXED DRIVE FACE
€ 2.00
9-1
0831921165
ref: 9-1
MODEL M/N
NUT (BLACK)
€ 5.00
9-2
0831921168
ref: 9-2
MODEL P/R/S/T
NUT 16MM
€ 5.00
10
6127312D20
ref: 10
BUFFER,CHAIN TOUCH DEFENSE
€ 40.00
11
6127544B00
ref: 11
BOLT,TOUCH DEFENSE FTG
€ 4.50
12
0916005036
ref: 12
WASHER (5.5X14X1.2)
€ 2.00
13
0918006165
ref: 13
SPACER (6.6X9X6.5)
€ 2.50
14
0831931053
ref: 14
NUT
€ 3.00
15
6131014A00
ref: 15
CASE,CHAIN
€ 49.00
16-1
0151706105
ref: 16-1
MODEL M/N/P
BOLT
€ 2.50
16-2
0155006103
ref: 16-2
MODEL R/S/T
BOLT
€ 2.50
17
0916906026
ref: 17
WASHER
€ 2.00
18
6134114A03
ref: 18
GUIDE,CHAIN
€ 25.00
19-1
0151706128
ref: 19-1
MODEL M/N/P
BOLT
€ 2.50
19-2
0155006123
ref: 19-2
MODEL R/S/T
BOLT
€ 2.50
20-1
0151706167
ref: 20-1
MODEL M/N/P
BOLT 6X16
€ 1.50
20-2
0155006163
ref: 20-2
MODEL R/S/T
BOLT
€ 2.50
