CRANKCASE COVER
DR650RSEU 1992 (N) GERMANY (E22)

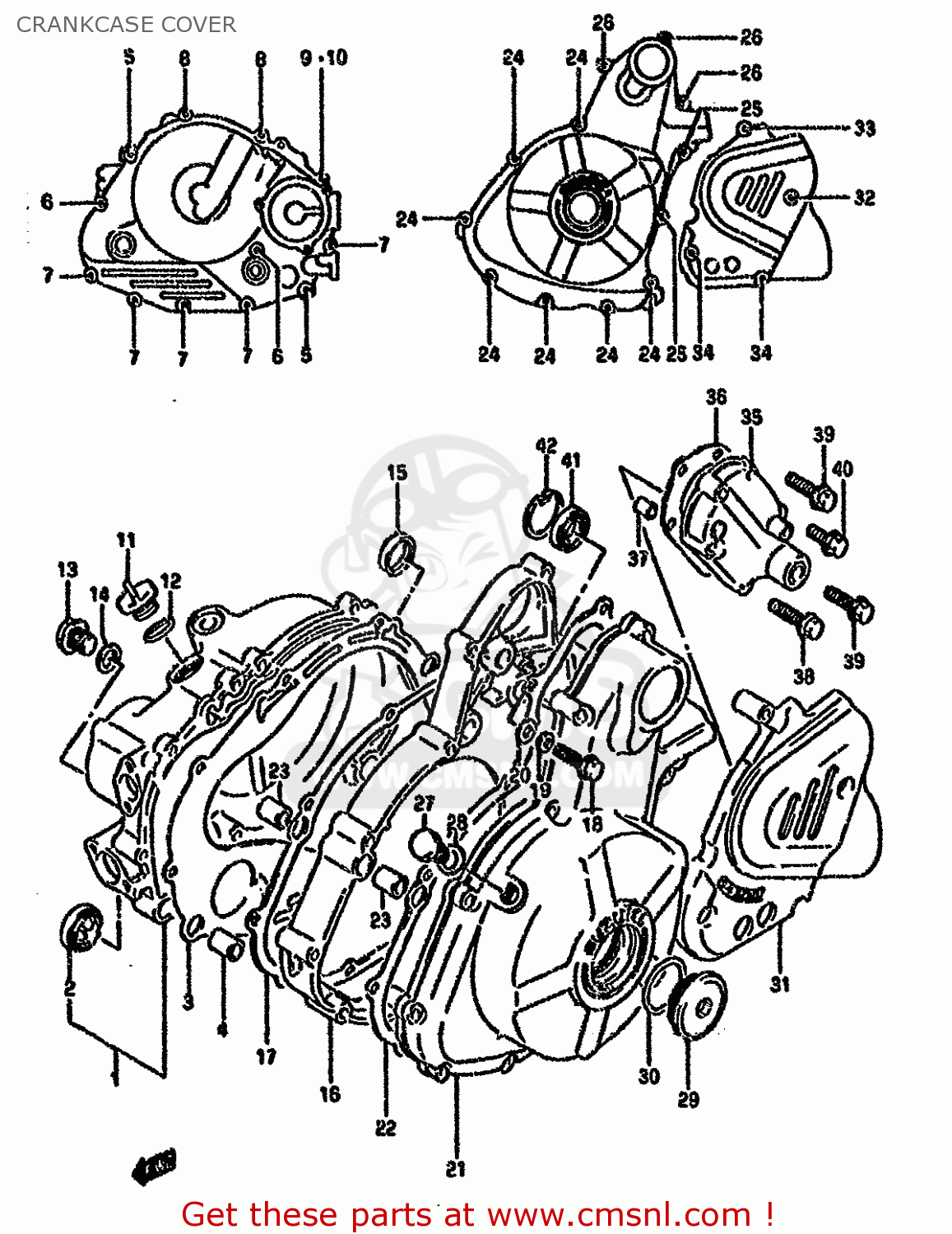

Crankcase cover diagram DR650RSEU 1992 (N) GERMANY (E22)
CRANKCASE COVER DR650RSEU 1992 (N) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
1134012D00
ref: 1-1
MODEL M/N/P
COVER,CLUTCH
€ 271.50
1-2
1134012D30
ref: 1-2
MODEL R/S/T
COVER,CLUTCH
€ 214.00
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
€ 13.50
3
1148212D01
ref: 3
GASKET,CLUTCH COVER (NAS)
€ 46.00
4
0421113189
ref: 4
-09206-13001
PIN
€ 2.50
5-1
0154706505
ref: 5-1
MODEL M/N/P
BOLT 6X50
€ 3.50
5-2
0154706507
ref: 5-2
MODEL R/S/T
BOLT
€ 2.50
6-1
0154706404
ref: 6-1
MODEL M/N/P
BOLT 6X40
€ 3.00
6-2
0154706407
ref: 6-2
MODEL R/S/T
BOLT
€ 2.50
7-1
0154706354
ref: 7-1
MODEL M/N/P
BOLT 6X35
€ 3.00
7-2
0154706357
ref: 7-2
MODEL R/S/T
BOLT
€ 2.50
8-1
0154706254
ref: 8-1
MODEL M/N/P
BOLT 6X25
€ 2.50
8-2
0154706257
ref: 8-2
MODEL R/S/T
BOLT
€ 2.50
9-1
0910306141
ref: 9-1
MODEL M/N/P
BOLT 6X25
€ 1.50
9-2
0910306180
ref: 9-2
MODEL R/S/T
BOLT(6X25)
€ 5.00
10-1
0832221064
ref: 10-1
MODEL M/N/P
WASHER
€ 2.00
10-2
0832201063
ref: 10-2
MODEL R/S/T
WASHER
€ 2.00
11-1
0925920016
ref: 11-1
MODEL M/N/P
PLUG
€ 9.50
11-2
0925920008
ref: 11-2
MODEL R/S/T
PLUG
€ 6.50
12
0928017003
ref: 12
O RING(D:3.1,ID:16.8)
€ 2.00
13
0924714015
ref: 13
PLUG(14X12)
€ 2.50
14-1
0916814004
ref: 14-1
MODEL M/N/P
GASKET(14X19.2X2) (NAS)
€ 2.50
14-2
0916814002
ref: 14-2
MODEL R/S/T
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
15
1134215D00
ref: 15
PLUG,CLUTCH COVER KICK
€ 7.00
16-1
1133112D20
ref: 16-1
MODEL M/N/P
COVER,GENERATOR INNER
€ 317.00
16-2
1133112D30
ref: 16-2
MODEL R/S/T
COVER,GENERATOR,INNER
€ 153.50
17
1148312D10
ref: 17
GASKET,MAGNETO COVER (NAS)
€ 41.00
18-1
0154706304
ref: 18-1
MODEL M/N/P
BOLT 6X30
€ 2.50
18-2
0154706303
ref: 18-2
MODEL R/S/T
BOLT,G/S SWITC
€ 3.00
19
0832101063
ref: 19
LOCK WASHER
€ 2.00
20
0832201063
ref: 20
WASHER
€ 2.00
21-1
1135112D20
ref: 21-1
MODEL M/N/P
COVER,GENERATOR OUTER
€ 216.00
21-2
1135112D40
ref: 21-2
MODEL R/S/T
COVER,GENERATOR OUTER
€ 211.00
22
1148312D20
ref: 22
GASKET,GENERATOR OUTER COVER (NAS)
€ 62.00
23
0421113189
ref: 23
-09206-13001
PIN
€ 2.50
24-1
0154706603
ref: 24-1
MODEL M/N/P
BOLT
€ 3.50
24-2
0154706607
ref: 24-2
MODEL R/S/T
BOLT
€ 2.50
25-1
0154706555
ref: 25-1
MODEL M/N/P
BOLT (6X55)
€ 3.00
25-2
0154706557
ref: 25-2
MODEL R/S/T
BOLT
€ 2.50
26-1
0154706354
ref: 26-1
MODEL M/N/P
BOLT 6X35
€ 3.00
26-2
0154706357
ref: 26-2
MODEL R/S/T
BOLT
€ 2.50
27
0924712103
ref: 27
PLUG(12X9)
€ 3.50
28
0916812002
ref: 28
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
29-1
0925936016OML
ref: 29-1
MODEL M/N/P
PLUG
€ 0.00
29-2
092593601620H
ref: 29-2
MODEL R/S/T
PLUG(SILVER)
€ 10.50
30
0928033004
ref: 30
O RING(D:3.1,ID:32.7)
€ 2.50
31-1
1136112D20
ref: 31-1
MODEL M/N/P
COVER,ENGINE SPROCKET
€ 62.00
31-2
1136112D40
ref: 31-2
MODEL R/S/T
COVER,ENGINE SPROCKET
€ 70.00
32-1
0154706454
ref: 32-1
MODEL M/N/P
BOLT
€ 3.00
32-2
0154706457
ref: 32-2
MODEL R/S/T
BOLT
€ 2.50
33-1
0154706354
ref: 33-1
MODEL M/N/P
BOLT 6X35
€ 3.00
33-2
0154706357
ref: 33-2
MODEL R/S/T
BOLT
€ 2.50
34-1
0154706205
ref: 34-1
MODEL M/N/P
BOLT 6X20
€ 2.50
34-2
0154706207
ref: 34-2
MODEL R/S/T
BOLT
€ 2.50
35-1
1137137400
ref: 35-1
MODEL M/N/P
COVER,GEAR SHIFT
€ 37.00
35-2
1137112D30
ref: 35-2
MODEL R/S/T
COVER,GEAR SHIFT
€ 41.50
36
1148512D01
ref: 36
GASKET,GEAR SHIFT COVER (NAS)
€ 4.50
37
0421109129
ref: 37
PIN
€ 2.00
38-1
0154706354
ref: 38-1
MODEL M/N/P
BOLT 6X35
€ 3.00
38-2
0154706353
ref: 38-2
MODEL R/S/T
BOLT
€ 3.00
39-1
0154706304
ref: 39-1
MODEL M/N/P
BOLT 6X30
€ 2.50
39-2
0154706303
ref: 39-2
MODEL R/S/T
BOLT,G/S SWITC
€ 3.00
40-1
0154706205
ref: 40-1
MODEL M/N/P
BOLT 6X20
€ 2.50
40-2
0154706203
ref: 40-2
MODEL R/S/T
SCREW
€ 2.50
41
0926212001
ref: 41
-08110-60010
BEARING(12X28X8)
€ 15.00
42
0833141286
ref: 42
CIRCLIP
€ 3.50
