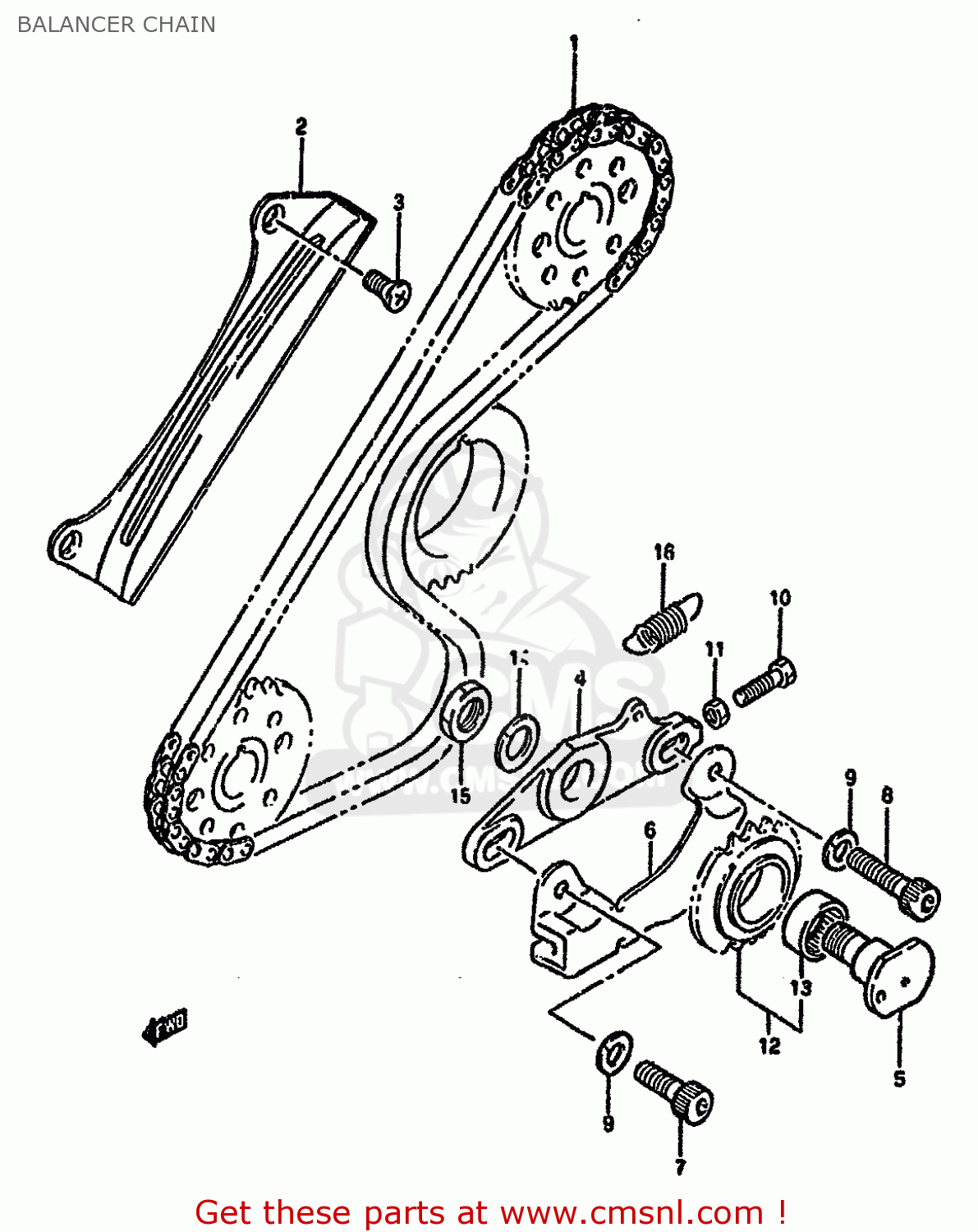

BALANCER CHAIN

ref

part #

description

quantity

1

1267012D00
ref: 1

CHAIN,BALANCER

€ 111.50

2

1269512D00
ref: 2

GUIDE,BALANCER CHAIN

€ 20.00

3

0212206163
ref: 3

SCREW ,6X16

€ 2.00

4

1268112D00
ref: 4

BRACKET,BALANCER CHAIN

€ 48.50

5

1268214A01
ref: 5

SHAFT,BALANCER CHAIN TENSIONER

€ 29.00

6

1269612D00
ref: 6

GUIDE,BALANCER CHAIN TNSN

€ 26.00

7

0910608005
ref: 7

BOLT(8X22)

€ 2.00

8-1

0711008305
ref: 8-1
MODEL N/P

BOLT, REAR (8X30)

€ 3.00

8-2

0713008303
ref: 8-2
MODEL R

BOLT

€ 3.00

9-1

0832121088
ref: 9-1
MODEL N/P

LOCK WASHER

€ 2.00

9-2

0832101083
ref: 9-2
MODEL R

LOCK WASHER

€ 2.50

10-1

0110705167
ref: 10-1
MODEL N/P

BOLT

€ 1.50

10-2

0150005163
ref: 10-2
MODEL R

BOLT

€ 1.50

11

0914005006
ref: 11

NUT

€ 2.00

12

1268544B00
ref: 12

SPRKT,BALANCER CHAIN TENSIONER

€ 75.00

13

0926317007
ref: 13

BEARING(17X23X12)

€ 13.00

14

0916212006
ref: 14

WASHER,LOCK

€ 2.50

15

0914012021
ref: 15

NUT

€ 2.50

16

0944310040
ref: 16

SPRING

€ 2.50
