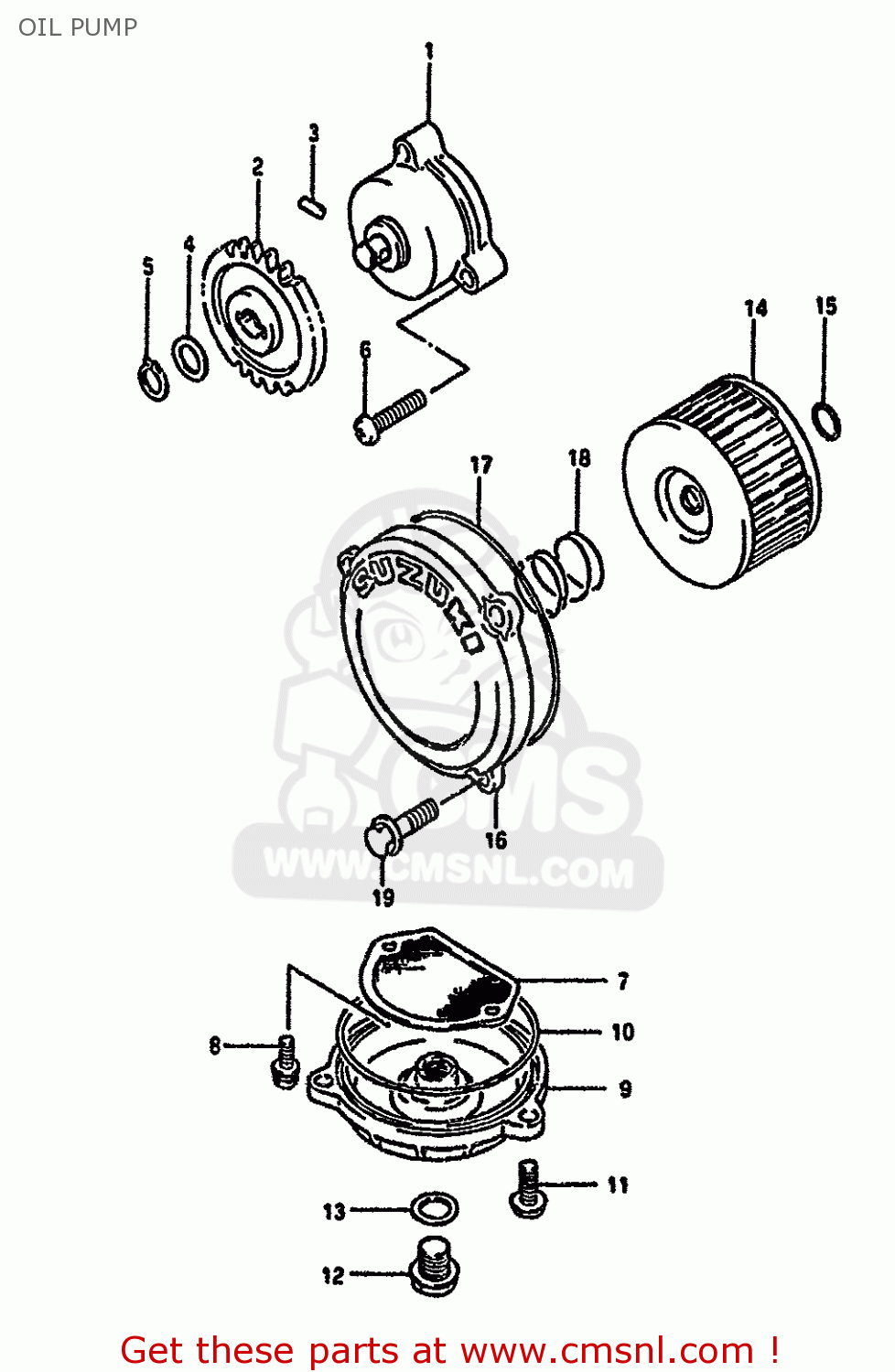

OIL PUMP

ref

part #

description

quantity

1

1640012D00
ref: 1

PUMP ASSY,ENGINE OIL

€ 156.50

2

1633112D10
ref: 2

GEAR,OIL PUMP DRIVEN

€ 23.50

3

0926104009
ref: 3

PIN(4X15.8)

€ 1.50

4

0822110185
ref: 4

SHIM

€ 2.00

5

0833131106
ref: 5

CIRCLIP,10MM

€ 2.00

6

0211206257
ref: 6

SCREW

€ 2.00

7

1652014A00
ref: 7

STRAINER,ENGINE OIL

€ 8.50

8

0211275126
ref: 8

SCREW

€ 2.50

9

1652337402
ref: 9

CAP,OIL STRAINER

€ 56.00

10

0928082001
ref: 10

O RING(D:2.4,ID:85)

€ 6.50

11-1

0151706207
ref: 11-1
MODEL N/P

BOLT 6X20

€ 2.50

11-2

0155006203
ref: 11-2
MODEL R

BOLT

€ 2.50

12

0924714001
ref: 12

PLUG

€ 5.00

13-1

0916814004
ref: 13-1
MODEL N/P

GASKET(14X19.2X2) (NAS)

€ 2.50

13-2

0916814002
ref: 13-2
MODEL R

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

14

1651037440
ref: 14

FILTER,ENGINE OIL

€ 7.50

15

0928016005
ref: 15

O RING(D:2.4,ID:15.8)

€ 1.50

16

1651212E00
ref: 16

CAP,OIL FILTER

€ 26.00

17

0928072001
ref: 17

O RING(D:2.4,ID:73)

€ 5.00

18

0944021004
ref: 18

SPRING

€ 13.00

19

0154706167
ref: 19

BOLT

€ 2.00

all assemblies
