FRONT FENDER

DR650RU 1993 (P) GERMANY (E22)

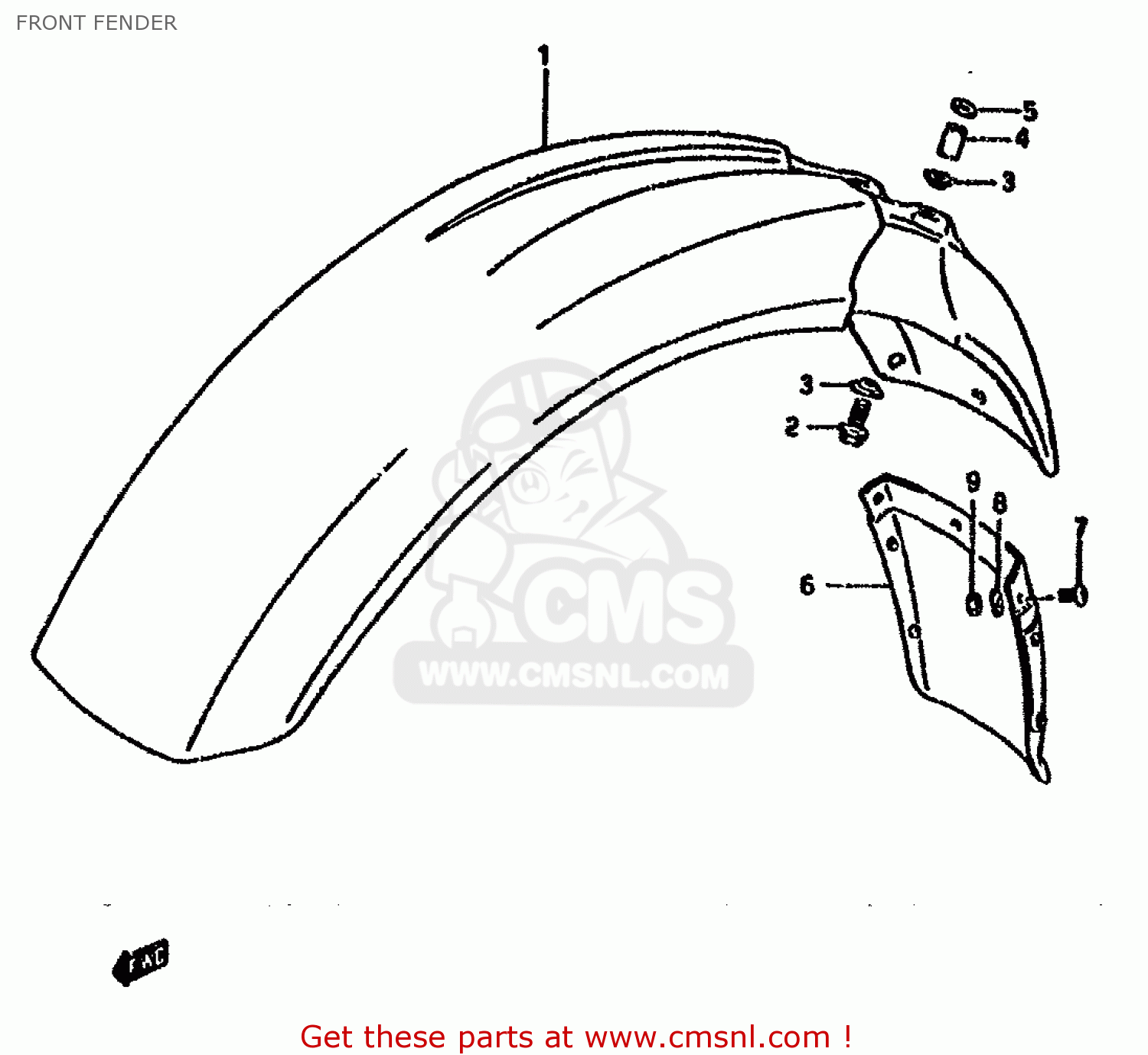

Front fender diagram DR650RU 1993 (P) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1-1

5311114D1130H
ref: 1-1
E2,E4,E21,E25,E34,E5

FENDER,FR

€ 81.50

1-2

5311114D2130H
ref: 1-2
E17,E18,E24

FENDER, FRONT (WHITE)

€ 77.00

1-3

5311114D3130H
ref: 1-3
E22

FENDER,FR

€ 77.00

1-4

5311114D11019
ref: 1-4
MODEL R FOR 019 E4,E

FENDER,FR

€ 55.00

1-5

5311114D31019
ref: 1-5
MODEL R FOR 019 E22

FENDER,FR

€ 77.00

2-1

0151706307
ref: 2-1
MODEL N/P

BOLT

€ 2.00

2-2

0155006303
ref: 2-2
MODEL R

BOLT

€ 2.50

0916906053
ref: 3

WASHER

€ 2.00

0918006110
ref: 4

SPACER (6.8X10X16)

€ 3.00

0916006006
ref: 5

WASHER

€ 2.00

5331014D00
ref: 6
E17,E18,E22,E24

MUD GUARD,FRONT FENDER

€ 38.50

0912505042
ref: 7
E17,E18,E22,E24

SCREW(5X10)

€ 2.50

0916005016
ref: 8
E17,E18,E22,E24

WASHER

€ 1.50

0914005006
ref: 9
E17,E18,E22,E24

NUT

€ 2.00
