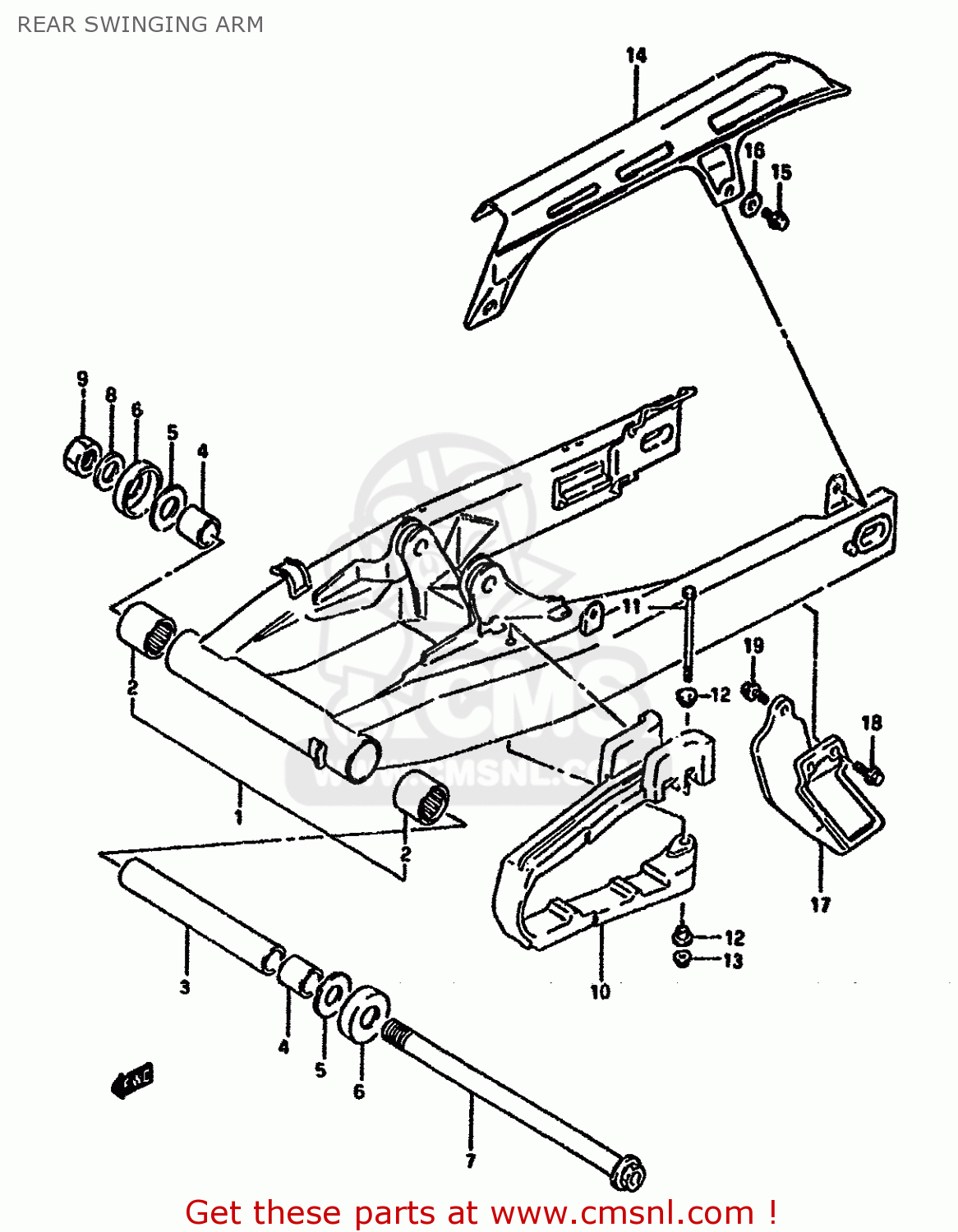

REAR SWINGING ARM

ref

part #

description

quantity

1

6100012D3013L
ref: 1

SWING ARM ASSEMBLY,REAR

€ 476.50

2

0926322022
ref: 2

BEARING(22X29X20)

€ 27.00

3

6128214A00
ref: 3

SPACER,RR SWGARM PIVOT CTR

€ 15.00

4

6125132410
ref: 4

SPACER,RR SWGARM PIVOT

€ 8.50

5

0821116341
ref: 5

WASHER

€ 2.00

6

6126214A00
ref: 6

SEAL,RR SWGARM PIVOT DUST

€ 7.50

7-1

6121112D00
ref: 7-1
MODEL N

SHAFT,REAR SWING ARM

€ 39.00

7-2

6121112D10
ref: 7-2
MODEL N/P/R

SHAFT,RR SWINGINGARM PIVOT

€ 39.00

8-1

0832211165
ref: 8-1
MODEL N

WASHER (BLACK)

€ 2.00

8-2

0832211168
ref: 8-2
MODEL N/P

WASHER

€ 2.00

8-3

0832201167
ref: 8-3
MODEL R

WASHER

€ 2.00

9-1

0831921165
ref: 9-1
MODEL N

NUT (BLACK)

€ 5.00

9-2

0831921168
ref: 9-2
MODEL N/P/R

NUT 16MM

€ 5.00

10

6127312D20
ref: 10

BUFFER,CHAIN TOUCH DEFENSE

€ 40.00

11

6127544B00
ref: 11

BOLT,TOUCH DEFENSE FTG

€ 4.50

12

0916905020
ref: 12

WASHER

€ 3.00

13-1

0831931056
ref: 13-1
-08319-31053

NUT

€ 3.00

13-2

0831931053
ref: 13-2

NUT

€ 3.00

14

6131014A00
ref: 14

CASE,CHAIN

€ 49.00

15-1

0151706105
ref: 15-1
MODEL N/P

BOLT

€ 2.50

15-2

0155006103
ref: 15-2
MODEL R

BOLT

€ 2.50

16

0916906026
ref: 16

WASHER

€ 2.00

17

6134114A03
ref: 17

GUIDE,CHAIN

€ 25.00

18-1

0151706128
ref: 18-1
MODEL N/P

BOLT

€ 2.50

18-2

0155006123
ref: 18-2
MODEL R

BOLT

€ 2.50

19-1

0151706167
ref: 19-1
MODEL N/P

BOLT 6X16

€ 1.50

19-2

0155006163
ref: 19-2
MODEL R

BOLT

€ 2.50
