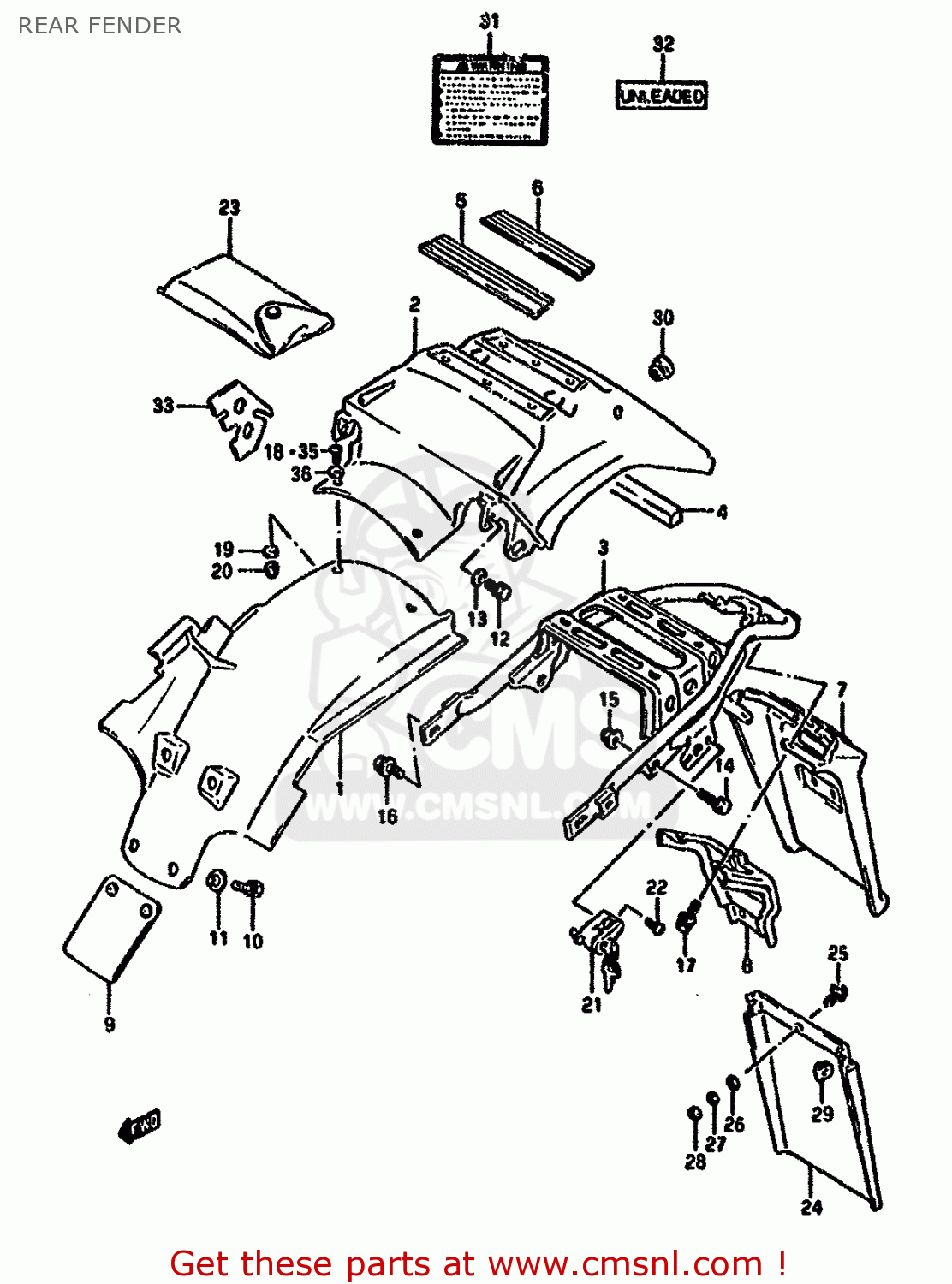

REAR FENDER

ref

part #

description

quantity

1

6311212E00
ref: 1

BODY,REAR FENDER,FRONT

€ 38.00

2-1

6311312E0030H
ref: 2-1

BODY, REAR FENDER REAR (WHITE)

€ 78.50

2-2

6311312E1030H
ref: 2-2
E22

BODY,REAR FEND

€ 78.50

2-3

6311312E00019
ref: 2-3
MODEL R,FOR 019 E4,E

BODY, REAR FENDER REAR (BLACK)

€ 73.00

2-4

6311312E10019
ref: 2-4
MODEL R,FOR 019 E22

BODY,RR FENDER RR

€ 73.00

3

6312012E00
ref: 3

REINFORCEMENT,REAR FENDER

€ 212.00

4

6319212E00
ref: 4

CUSHION,REAR FENDER &

€ 0.00

5

6319312E00
ref: 5

CUSHION,REAR FENDER,REAR

€ 0.00

6

6319312E10
ref: 6

CUSHION,REAR FENDER,REAR

€ 0.00

7-1

6331103D01
ref: 7-1

EXTENSION,RR FENDER

€ 24.00

7-2

6331103D11
ref: 7-2
E17,E18

EXTENSION, REAR FENDER

€ 27.50

7-3

6331103D30
ref: 7-3
E22

EXTENSION,RR FENDER

€ 33.00

8

6332003003
ref: 8

REINFORCEMENT,EXTENSION

€ 0.00

9

6341113700
ref: 9

GUARD,RR FENDER FR MUD

€ 10.00

10-1

0113706167
ref: 10-1
MODEL N/P

BOLT

€ 2.50

10-2

0157006163
ref: 10-2
MODEL R

BOLT

€ 2.50

11

0916906016
ref: 11

WASHER

€ 1.50

12-1

0113706128
ref: 12-1
MODEL N/P

BOLT

€ 2.50

12-2

0157006123
ref: 12-2
MODEL R

BOLT

€ 1.50

13

0916906028
ref: 13

WASHER

€ 2.00

14-1

0113708255
ref: 14-1
MODEL N/P

BOLT,REINF,RH

€ 2.00

14-2

0157008253
ref: 14-2
MODEL R

BOLT

€ 2.50

15

0831931087
ref: 15

NUT

€ 2.50

16

0911808128
ref: 16

BOLT(8X16)

€ 2.00

17

0911606152
ref: 17

BOLT(6X20)

€ 2.00

18

0214205128
ref: 18
MODEL N/P

SCREW

€ 1.50

19

0916005017
ref: 19

WASHER (5.5X16X1.2)

€ 2.50

20

0831921057
ref: 20

NUT

€ 1.50

21

9570003810
ref: 21

LOCK SET,HELMET

€ 59.50

22-1

0211205125
ref: 22-1
MODEL N/P

SCREW

€ 1.50

22-2

0211205123
ref: 22-2
MODEL R

SCREW

€ 1.50

23-1

0980020051
ref: 23-1
-09800-21024

TOOL ASSY

€ 55.00

23-2

0980021024
ref: 23-2

TOOL ASSY

€ 55.00

24-1

6333103D00
ref: 24-1
E17,E18

MUDGUARD,RR FENDER RR

€ 15.50

24-2

6333103D30
ref: 24-2
E22

MUDGUARD,RR FENDER RR

€ 27.50

25

0214215165
ref: 25
E17,E18,E22

SCREW, LOWER

€ 2.50

26

0916005016
ref: 26
E17,E18,E22

WASHER

€ 1.50

27

0832121056
ref: 27
E17,E18,E22

LOCK WASHER

€ 3.00

28

0914005006
ref: 28
E17,E18,E22

NUT

€ 2.00

29

0914805023
ref: 29
E17,E18,E22

NUT

€ 1.50

30

0925012006
ref: 30
E24

CAP(OD:20)

€ 3.00

31-1

6831915D00
ref: 31-1

LABEL

€ 8.00

31-2

6831915D20
ref: 31-2
E18,E22

LABEL, WARNING

€ 8.00

31-3

6831915D30
ref: 31-3
E4,E21

LABEL, WARNING

€ 8.50

31-4

6831915D40
ref: 31-4
E34

LABEL, WARNING

€ 8.00

31-5

6831915D51
ref: 31-5
E53

LABEL, WARNING SAFETY (SPANISH)

€ 8.00

32-1

6862317D00
ref: 32-1
E2

LABEL,CAUTION

€ 4.00

32-2

8693273060
ref: 32-2
E24

LABEL,FUEL CAUTION

€ 4.00

33

6311612E01
ref: 33

SHIELD,REAR FENDER,REAR

€ 4.00

34-1

6833214A60
ref: 34-1
WITH OUT DRAWING

LABEL,TIRE AIR PRESSURE

€ 5.50

34-2

6833214A70
ref: 34-2
E22,WITH OUT DRAWING

LABEL, TIRE AIR PRESSURE

€ 0.00

35

0214205167
ref: 35
MODEL R

SCREW

€ 1.50

36

0916005017
ref: 36
MODEL R

WASHER (5.5X16X1.2)

€ 2.50
