CAM SHAFT - VALVE (MODEL N/P)
DR650SE 1995 (S) USA (E03)

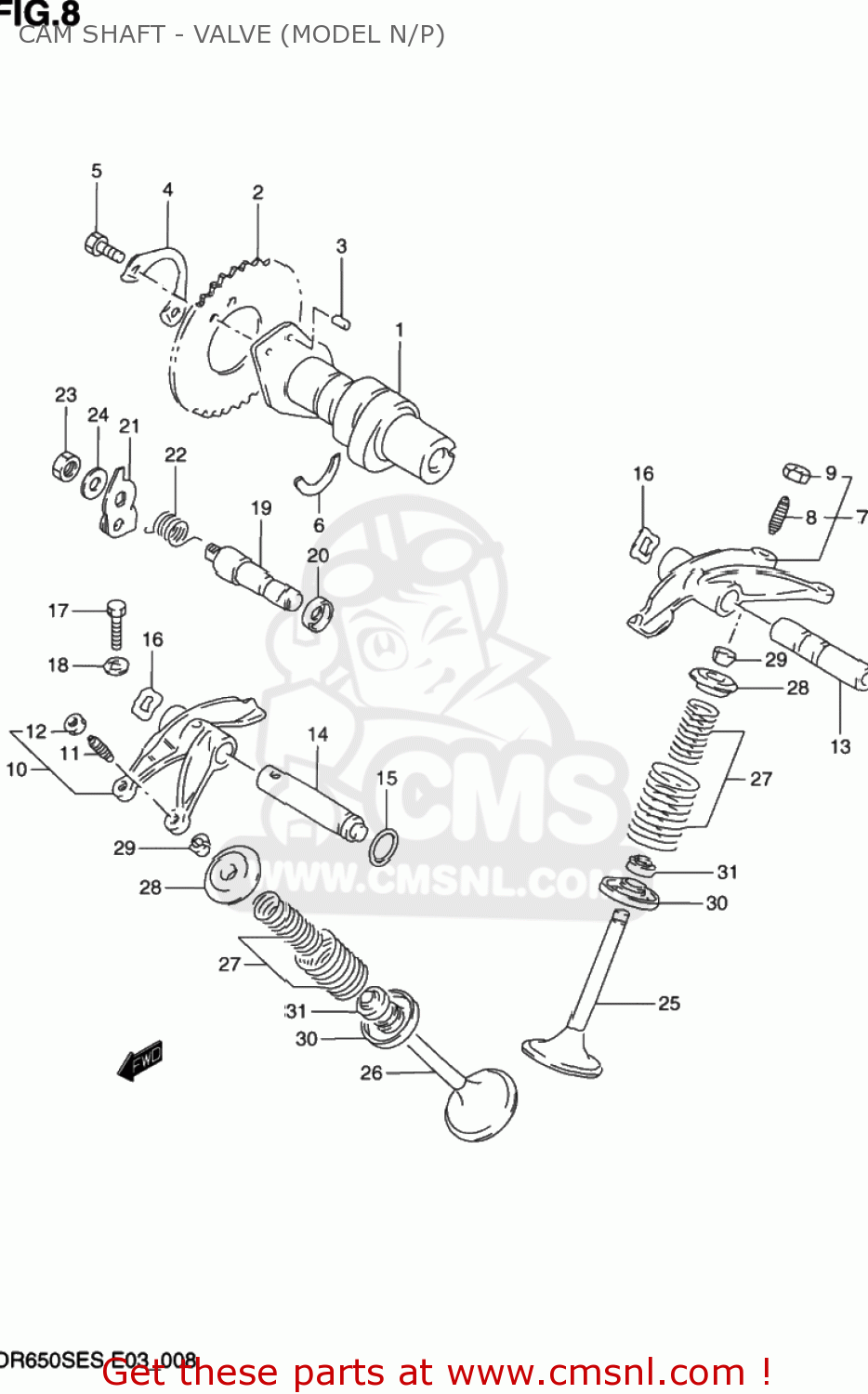

Cam shaft - valve (model n/p) diagram DR650SE 1995 (S) USA (E03)
CAM SHAFT - VALVE (MODEL N/P) DR650SE 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1271112D00
ref: 1
CAMSHAFT
€ 428.50
2
1274137400
ref: 2
SPROCKET,CAMSHAFT(NT:42)
€ 34.50
3
0422105109
ref: 3
PIN
€ 1.50
4
1274744000
ref: 4
12747-44001
WASHER,CAM CHAIN SPROCKET
€ 2.00
5
0911106027
ref: 5
BOLT(6X12.5)
€ 1.50
6
0939025003
ref: 6
C RING
€ 2.50
7
1284012D00
ref: 7
ARM,VALVE ROCKER INTAKE
€ 112.00
8
1284232411
ref: 8
SCREW,TAPPET ADJUSTING
€ 5.00
9
1284332400
ref: 9
NUT,ADJUSTING SCREW
€ 2.50
10
1285037401
ref: 10
ARM,VALVE ROCKER EXHAUST
€ 123.00
11
1284232411
ref: 11
SCREW,TAPPET ADJUSTING
€ 5.00
12
1284332400
ref: 12
NUT,ADJUSTING SCREW
€ 2.50
13
1286112D00
ref: 13
SHAFT,VALVE ROCKER ARM INTAKE
€ 19.50
14
1287114A00
ref: 14
SHAFT,EXHAUST VALVE ROCKER ARM
€ 20.00
15
0928009005
ref: 15
O RING(D:1.9,ID:8.6)
€ 4.00
16
0916412018
ref: 16
WASHER
€ 1.50
17
0151706305
ref: 17
01550-0630A
BOLT 6X30
€ 2.50
18
0916806023
ref: 18
GASKET(5.8X13X1.2) (NAS)
€ 2.00
19
1294112D00
ref: 19
SHAFT,DECOMPRESSION
€ 19.50
20
0928210014
ref: 20
SEAL,OIL(10X17X6)
€ 6.50
21
1294212D00
ref: 21
LEVER,DECOMP SHAFT
€ 7.00
22
0944817028
ref: 22
09448-17028-XC0
SPRING,DECOMPRESSION SHAFT LEVER
€ 5.50
23
0831022085
ref: 23
09140-08021
NUT 8MM
€ 2.00
24
0832211084
ref: 24
08322-0108A
WASHER
€ 1.50
25
1291112D00
ref: 25
VALVE,INTAKE
€ 28.50
26
1291237400
ref: 26
VALVE,EXHAUST
€ 61.00
27
1292037402
ref: 27
SPRING SET,VALVE
€ 12.50
28
1293145000
ref: 28
12931-45001
RETAINER,VALVE SPRING
€ 6.00
29
1293245010
ref: 29
COTTER VALVE
€ 2.50
30
1293337400
ref: 30
SEAT,VALVE SPRING
€ 3.50
31
0928907002
ref: 31
SEAL,OIL(7X14.4X9)
€ 3.00
