ELECTRICAL (MODEL N/P)
DR650SE 1995 (S) USA (E03)

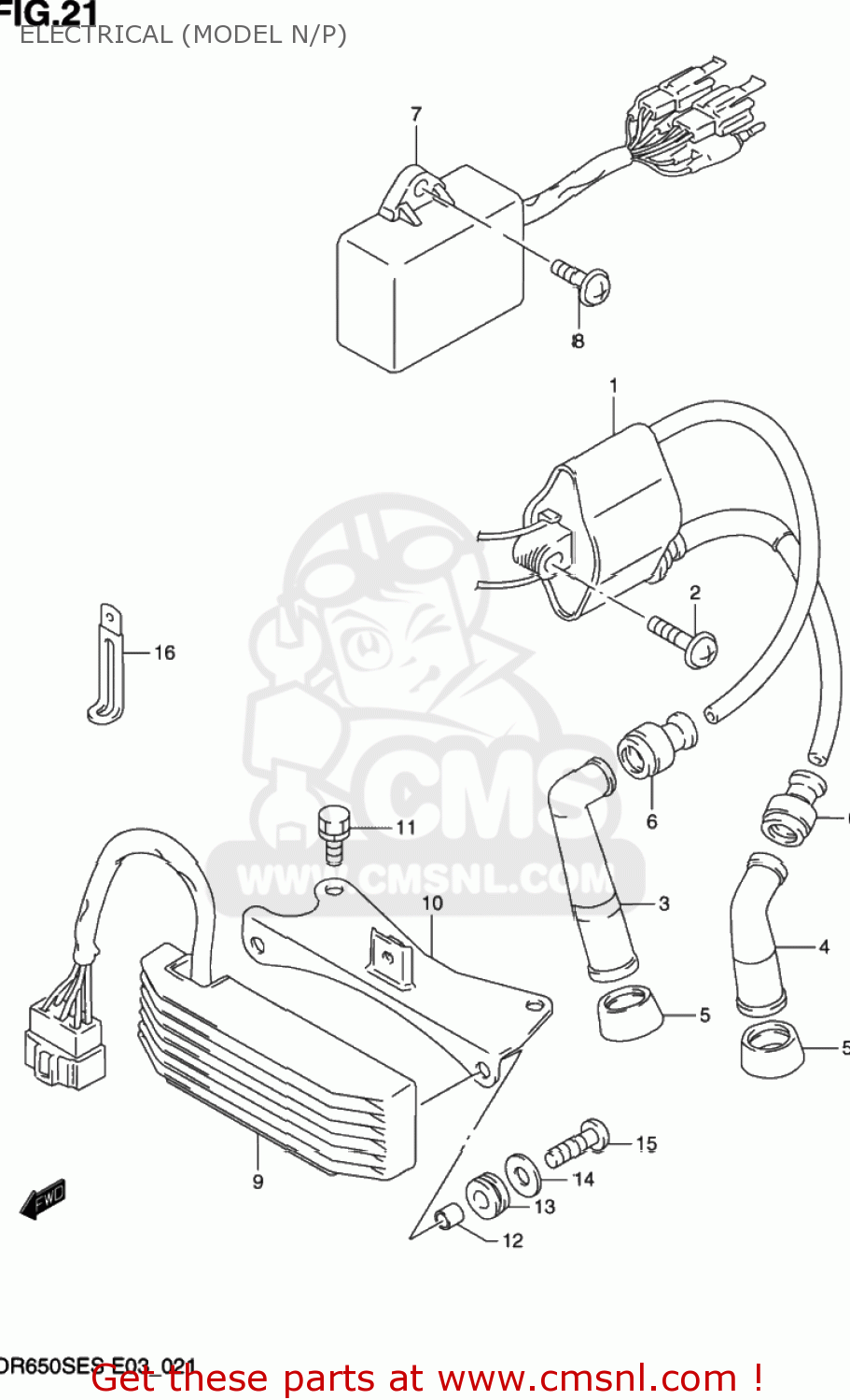

Electrical (model n/p) diagram DR650SE 1995 (S) USA (E03)
ELECTRICAL (MODEL N/P) DR650SE 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3341012D00
ref: 1
COIL ASSY,IGNITION
€ 161.50
2
0211216256
ref: 2
02142-0625A
SCREW
€ 1.50
3
3351045010
ref: 3
CAP ASSY,SPARK PLUG
€ 23.00
4
3351043010
ref: 4
CAP,SPARK PLUG
€ 11.50
5
3354124510
ref: 5
33541-47D00
SEAL,SPARK PLUG CAP
€ 7.00
6
3354238B00
ref: 6
SEAL,HIGH TENSION CORD
€ 4.50
7
3290012D00
ref: 7
CDI UNIT
€ 352.50
8
0215206168
ref: 8
02112-16167
SCREW
€ 2.00
9
3280012E00
ref: 9
32800-12E01
RECTIFIER ASSEMBLY
€ 368.00
10
3283012E00
ref: 10
BRACKET,RECTIFIER
€ 21.00
11
0151706125
ref: 11
01550-0612A
BOLT 6X12
€ 2.50
12
0918006044
ref: 12
09180-06248
SPACER (6.1X8X9.5)
€ 2.50
13
0932008048
ref: 13
09320-08501
CUSHION
€ 3.00
14
0916006056
ref: 14
WASHER(6.5X18X1)
€ 2.00
15
0214206205
ref: 15
02142-0620A
SCREW, CENTER
€ 2.00
16
0940406402
ref: 16
09404-06432
CLAMP
€ 2.50
