HANDLEBAR
DR650SE 1995 (S) USA (E03)

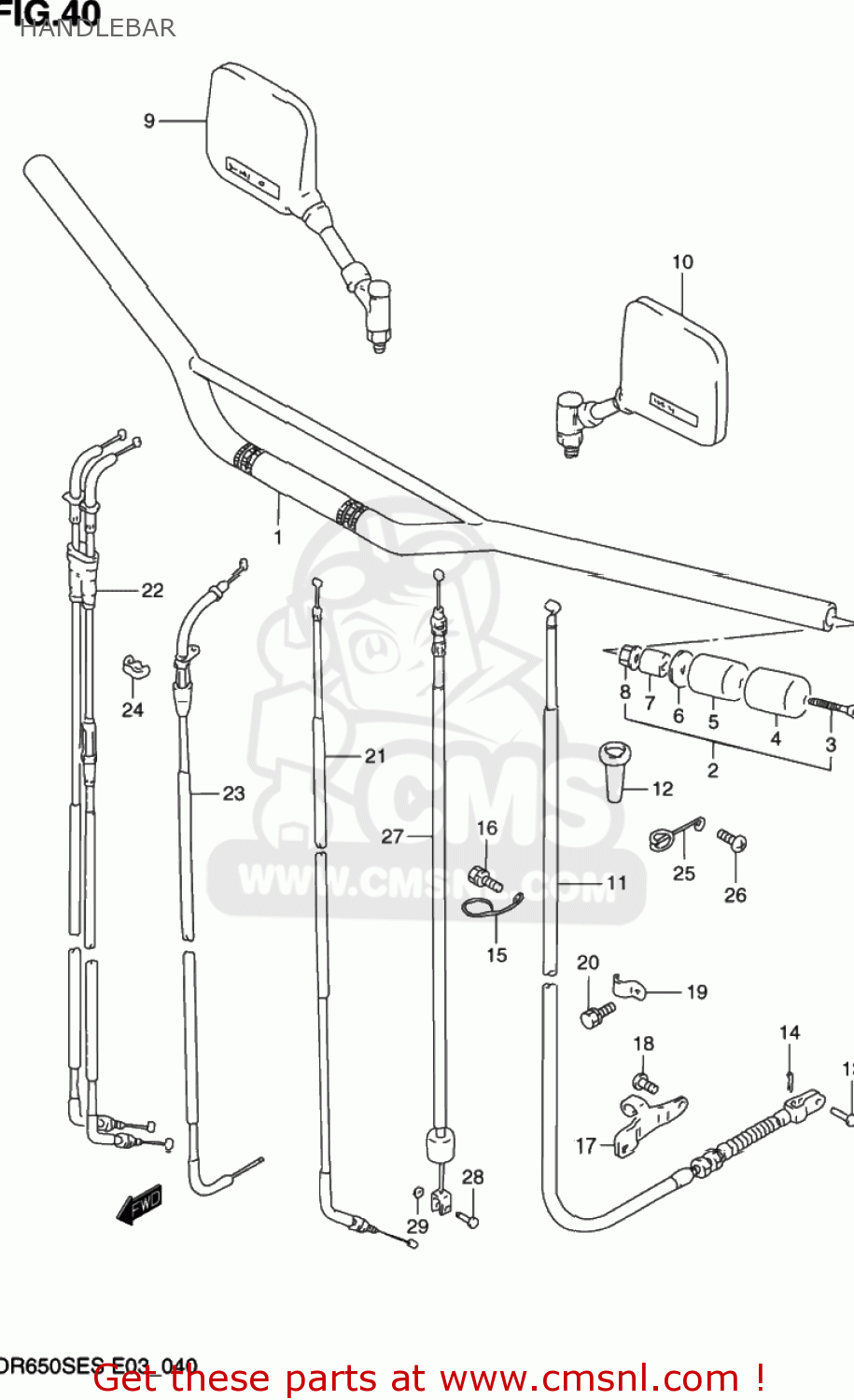

Handlebar diagram DR650SE 1995 (S) USA (E03)
HANDLEBAR DR650SE 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5611012E10291
ref: 1-1
56110-12E01-291
HANDLEBAR
€ 116.50
1-1
5611012E10291
ref: 1-1
56110-12E01-291
HANDLEBAR
€ 116.50
1-2
5611012E00291
ref: 1-2
56110-12E01-291
HANDLEBAR
€ 116.50
1-2
5611012E00291
ref: 1-2
56110-12E01-291
HANDLEBAR
€ 116.50
1-3
5611012E01291
ref: 1-3
HANDLEBAR
€ 116.50
2-1
5620036810
ref: 2-1
56200-12813
BALANCER SET,HANDLEBAR
€ 88.00
2-2
5620012810
ref: 2-2
56200-12813
BALANCER SET,HANDLEBAR
€ 88.00
2-3
5620012811
ref: 2-3
56200-12813
BALANCER SET,HANDLEBAR
€ 88.00
3-1
0213206655
ref: 3-1
02122-0665B
SCREW 6X65
€ 2.50
3-2
0212206653
ref: 3-2
02122-0665B
SCREW
€ 2.50
4-1
5627405350
ref: 4-1
56274-31300
CAP,BALANCER
€ 223.50
4-1
5627405350
ref: 4-1
56274-31300
CAP,BALANCER
€ 223.50
4-2
5627431300
ref: 4-2
CAP,BALANCER
€ 223.50
5
5627149420
ref: 5
BALANCER,HANDLE
€ 19.50
6-1
5627534400
ref: 6-1
56275-34401
SPACER,BALANCER
€ 2.50
6-2
5627534401
ref: 6-2
SPACER,BALANCER
€ 2.50
7
5627244500
ref: 7
EXPANDER,HANDLE BALANCER
€ 3.00
8
0915906024
ref: 8
NUT
€ 2.00
9
5650012D02
ref: 9
56500-06G30
MIRROR ASSEMBLY,REAR VIEW
€ 101.50
10
5660012D02
ref: 10
56600-06G30
MIRROR ASSEMBLY,REAR VIEW
€ 102.50
11
5820012E00
ref: 11
CABLE ASSY,CLUTCH
€ 39.00
12
5827331000
ref: 12
BOOT,CLUTCH CABLE
€ 2.50
13
0920006004
ref: 13
PIN(L:13)
€ 1.50
14
0411120158
ref: 14
04111-2015A
PIN
€ 1.50
15
5862117200
ref: 15
GUIDE
€ 5.50
16-1
0113706165
ref: 16-1
01570-0616A
BOLT
€ 2.50
16-2
0157006163
ref: 16-2
01570-0616A
BOLT
€ 2.50
16-3
0155006163
ref: 16-3
01550-0616A
BOLT
€ 2.50
17
5863437410
ref: 17
STOPPER,CLUTCH CABLE
€ 4.50
18-1
0211206125
ref: 18-1
02112-0612A
SCREW
€ 1.50
18-2
0154706123
ref: 18-2
01547-0612B
BOLT
€ 2.00
19
0940309306
ref: 19
CLAMP
€ 2.00
20-1
0151706125
ref: 20-1
01550-0612A
BOLT 6X12
€ 2.50
20-2
0155006123
ref: 20-2
01550-0612A
BOLT
€ 2.50
21
5890012E00
ref: 21
CABLE ASSY,DECOMP
€ 33.50
22
5830012E01
ref: 22
CABLE ASSY,THROTTLE
€ 97.50
23-1
5841012E00
ref: 23-1
58410-12E02
CABLE,STARTER
€ 39.00
23-2
5841012E02
ref: 23-2
CABLE,STARTER
€ 39.00
24
0940800066
ref: 24
CLIP
€ 1.50
25
5829427C00
ref: 25
GUIDE,CLUTCH CABLE
€ 8.00
26-1
0215206125
ref: 26-1
02112-0612A
SCREW
€ 1.50
26-2
0215206127
ref: 26-2
02112-06127
SCREW
€ 2.00
26-3
0211216123
ref: 26-3
02112-1612B
SCREW
€ 2.00
27
5890012D11
ref: 27
CABLE ASSY,DECOMP
€ 24.50
28
0920904020
ref: 28
PIN(4X12.5)
€ 5.50
29
0833211033
ref: 29
E RING
€ 1.50
