CRANKCASE
DR650SE 1995 (S) USA (E03)

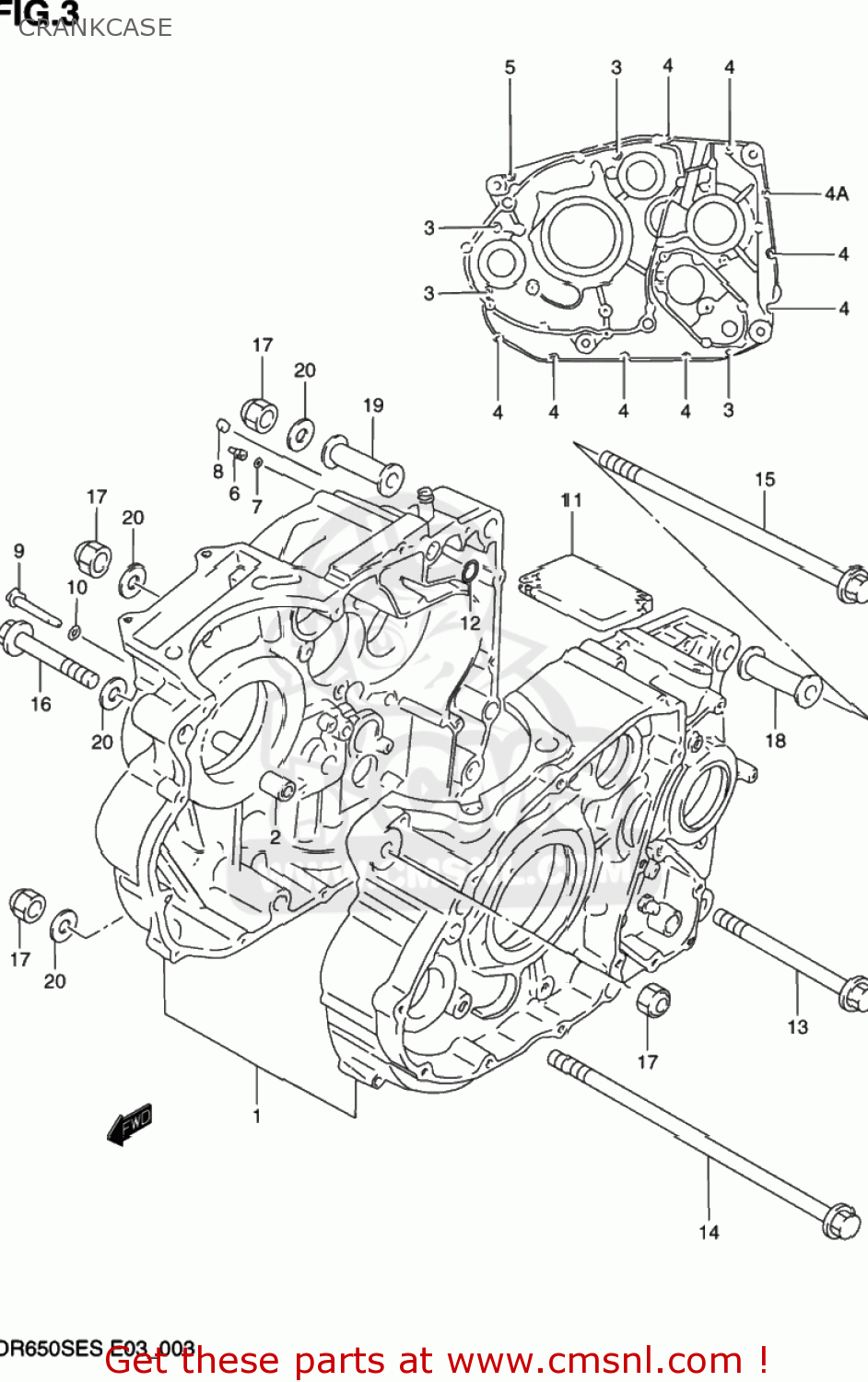

Crankcase diagram DR650SE 1995 (S) USA (E03)
CRANKCASE DR650SE 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130112850
ref: 1
11301-12851
CRANKCASE SET
€ 1,043.00
2
0421113189
ref: 2
PIN
€ 2.50
3-1
0154706607
ref: 3-1
BOLT
€ 2.50
3-2
0154706603
ref: 3-2
01547-0660B
BOLT
€ 3.50
4A
0154706407
ref: 4A
BOLT
€ 2.50
4-1
0154706407
ref: 4-1
BOLT
€ 2.50
4-2
0154706403
ref: 4-2
01547-0640B
BOLT
€ 3.00
5-1
0154706307
ref: 5-1
BOLT
€ 2.50
5-2
0154706303
ref: 5-2
01547-0630B
BOLT,G/S SWITC
€ 3.00
6
0949324012
ref: 6
JET(12)
€ 10.50
7
0928004004
ref: 7
O RING(D:1.2,ID:4)
€ 2.00
8
1118043410
ref: 8
JET,OIL GALLERY
€ 10.50
9
1139012D01
ref: 9
PIPE,PISTON COOLING
€ 20.00
10-1
0928008016
ref: 10-1
09280-08012
O-RING
€ 4.00
10-2
0928008012
ref: 10-2
O RING(D:1.9,ID:7.8)
€ 4.00
11-1
1132814A02
ref: 11-1
11328-14A03
SEPARATOR,OIL BREATHER
€ 4.50
11-2
1132814A03
ref: 11-2
SEPARATOR,OIL BREATHER
€ 4.50
12-1
0928009004
ref: 12-1
09280-09005
O-RING
€ 4.00
12-2
0928009005
ref: 12-2
O RING(D:1.9,ID:8.6)
€ 4.00
13
0910310237
ref: 13
BOLT(10X130)
€ 5.50
14
0910310238
ref: 14
09103-10238-XC0
BOLT 10X230
€ 17.00
15
0910310239
ref: 15
BOLT(10X235)
€ 12.00
16
0910310240
ref: 16
BOLT(10X80)
€ 7.00
17-1
0915910044
ref: 17-1
09159-10115
NUT (10MM)
€ 4.00
17-2
0915910058
ref: 17-2
09159-10115
NUT
€ 4.00
18
1161014A00
ref: 18
SPACER,ENG MTG(L:55)
€ 9.00
19
1161045410
ref: 19
SPACER,ENGINE MOUNT(L:65)
€ 11.50
20-1
0832211104
ref: 20-1
08322-0110A
WASHER 10MM
€ 2.50
20-2
0832201103
ref: 20-2
08322-0110A
WASHER
€ 2.50
