LEFT HANDLE SWITCH (MODEL R/S)
DR650SE 1995 (S) USA (E03)

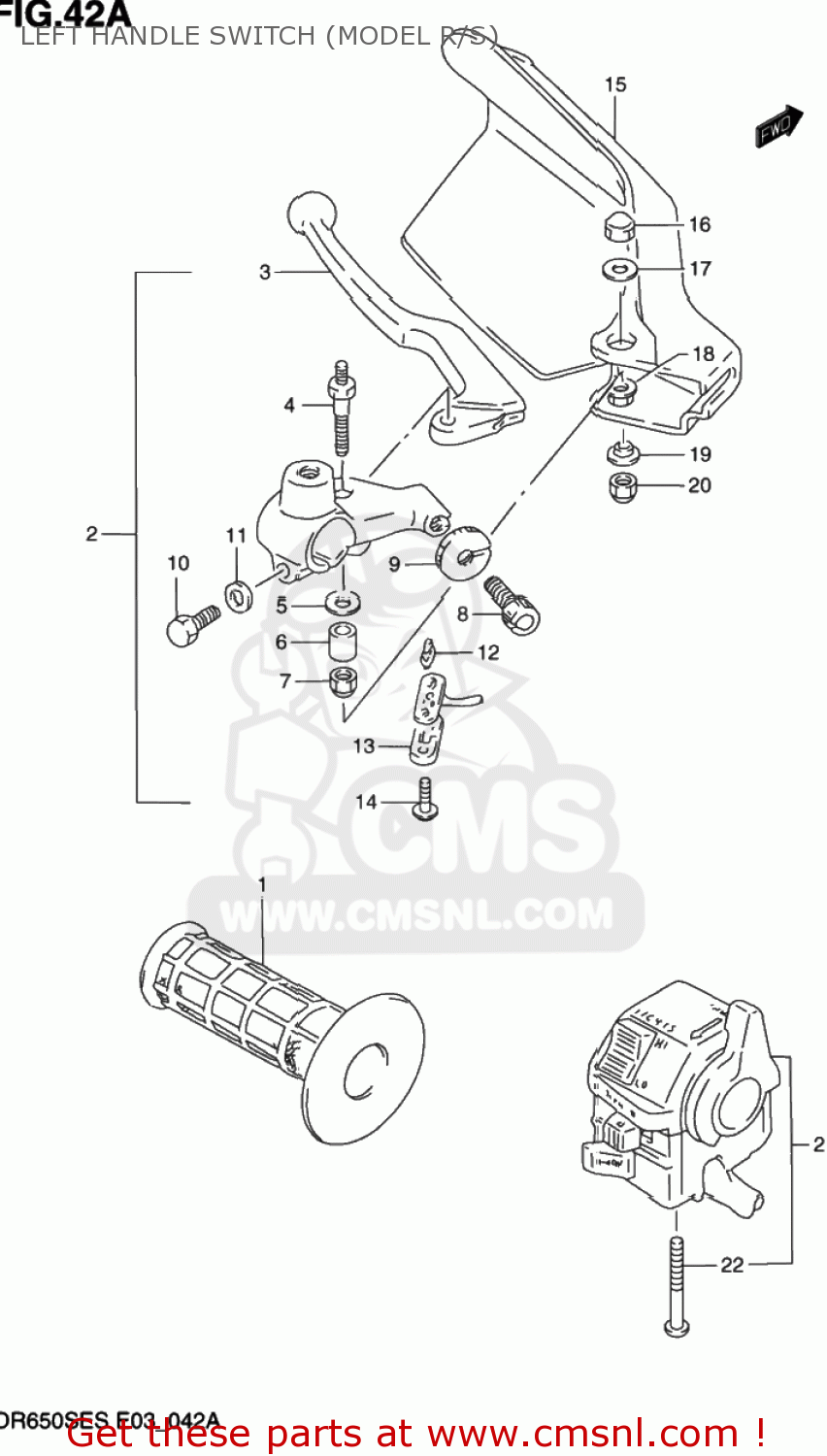

Left handle switch (model r/s) diagram DR650SE 1995 (S) USA (E03)
LEFT HANDLE SWITCH (MODEL R/S) DR650SE 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5721112D00
ref: 1
GRIP,L
€ 14.50
2
5750012E11
ref: 2
LEVER ASSEMBLY,CLUTCH
€ 101.00
3
5762020A02
ref: 3
LEVER,CLUTCH
€ 26.50
4
5753144B00
ref: 4
57531-44B01
BOLT,LEVER SET
€ 6.50
5
0832221064
ref: 5
08322-0106B
WASHER
€ 2.00
6
5753244B00
ref: 6
SPACER,LEVER SET
€ 3.50
7
0831921065
ref: 7
08319-2106B
NUT
€ 2.50
8
5744144400
ref: 8
ADJUSTER,CABLE
€ 5.50
9
5744211010
ref: 9
NUT,CABLE ADJUSTER
€ 4.00
10
0120406204
ref: 10
BOLT
€ 2.00
11
0832221064
ref: 11
08322-0106B
WASHER
€ 2.00
12
5746518601
ref: 12
CONTACT,SWITCH
€ 4.50
13
5748133010
ref: 13
COVER,FR BK TERMINAL BASE
€ 19.50
14
5748449110
ref: 14
SCREW
€ 1.50
15
5754131D000NF
ref: 15
57541-31D30-0NF
COVER,KNUCKLE,LEFT
€ 25.50
16
0831310063
ref: 16
08313-1006A
NUT
€ 2.00
17
0916006088
ref: 17
WASHER(6.5X20X1.6)
€ 2.00
18
0916006019
ref: 18
WASHER(6.5X16X1.2)
€ 1.50
19
0916906055
ref: 19
WASHER
€ 2.00
20
0831921068
ref: 20
08319-2106A
NUT 6MM
€ 2.00
21
3740012E11
ref: 21
SWITCH ASSEMBLY,HANDLE,LEFT
€ 58.00
22
0211205455
ref: 22
02112-0545B
SCREW, 5X45
€ 4.00
