HANDLEBAR
DR650SE 1997 (V) USA (E03)

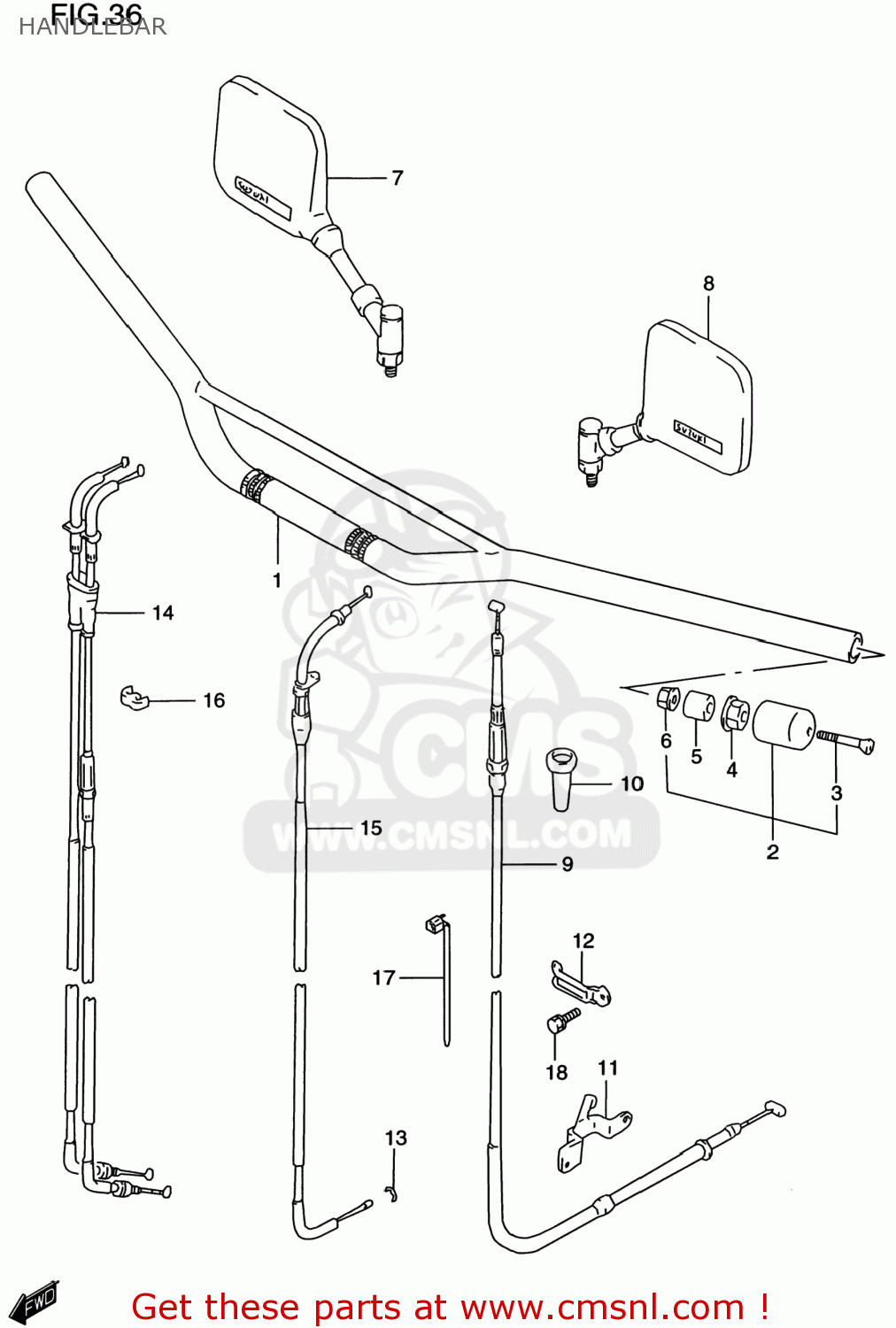

Handlebar diagram DR650SE 1997 (V) USA (E03)
HANDLEBAR DR650SE 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5611032E00291
ref: 1
HANDLEBAR(BLACK)
€ 63.00
2
5620032821
ref: 2
56200-32822
BALANCER SET,HANDLEBAR
€ 21.00
3
0212206803
ref: 3
02122-0680B
SCREW
€ 2.50
4
0831610083
ref: 4
08316-1008B
NUT
€ 3.00
5
5627244500
ref: 5
EXPANDER,HANDLE BALANCER
€ 3.00
6
0915906024
ref: 6
NUT
€ 2.00
7
5650012D02
ref: 7
56500-06G30
MIRROR ASSEMBLY,REAR VIEW
€ 101.50
8
5660012D02
ref: 8
56600-06G30
MIRROR ASSEMBLY,REAR VIEW
€ 102.50
9-1
5820032E00
ref: 9-1
58200-32E01
CABLE ASSEMBLY,CLUTCH
€ 40.50
9-2
5820032E01
ref: 9-2
CABLE ASSY,CLUTCH
€ 40.50
10
5827331000
ref: 10
BOOT,CLUTCH CABLE
€ 2.50
11
5863432E00
ref: 11
STOPPER,CLUTCH CABLE
€ 9.50
12
0940309307
ref: 12
CLAMP
€ 2.50
13
0833211033
ref: 13
E RING
€ 1.50
14
5830032E00
ref: 14
CABLE ASSY,THROTTLE
€ 82.00
15
5841032E00
ref: 15
CABLE,STARTER
€ 25.50
16
0940800066
ref: 16
CLIP
€ 1.50
17
0940725401
ref: 17
CLAMP(L:235)
€ 4.00
18
0155006123
ref: 18
01550-0612A
BOLT
€ 2.50
19
5652428600
ref: 19
56524-28601
CAP
€ 4.00
