MAGNETO
DR650SE 1997 (V) USA (E03)

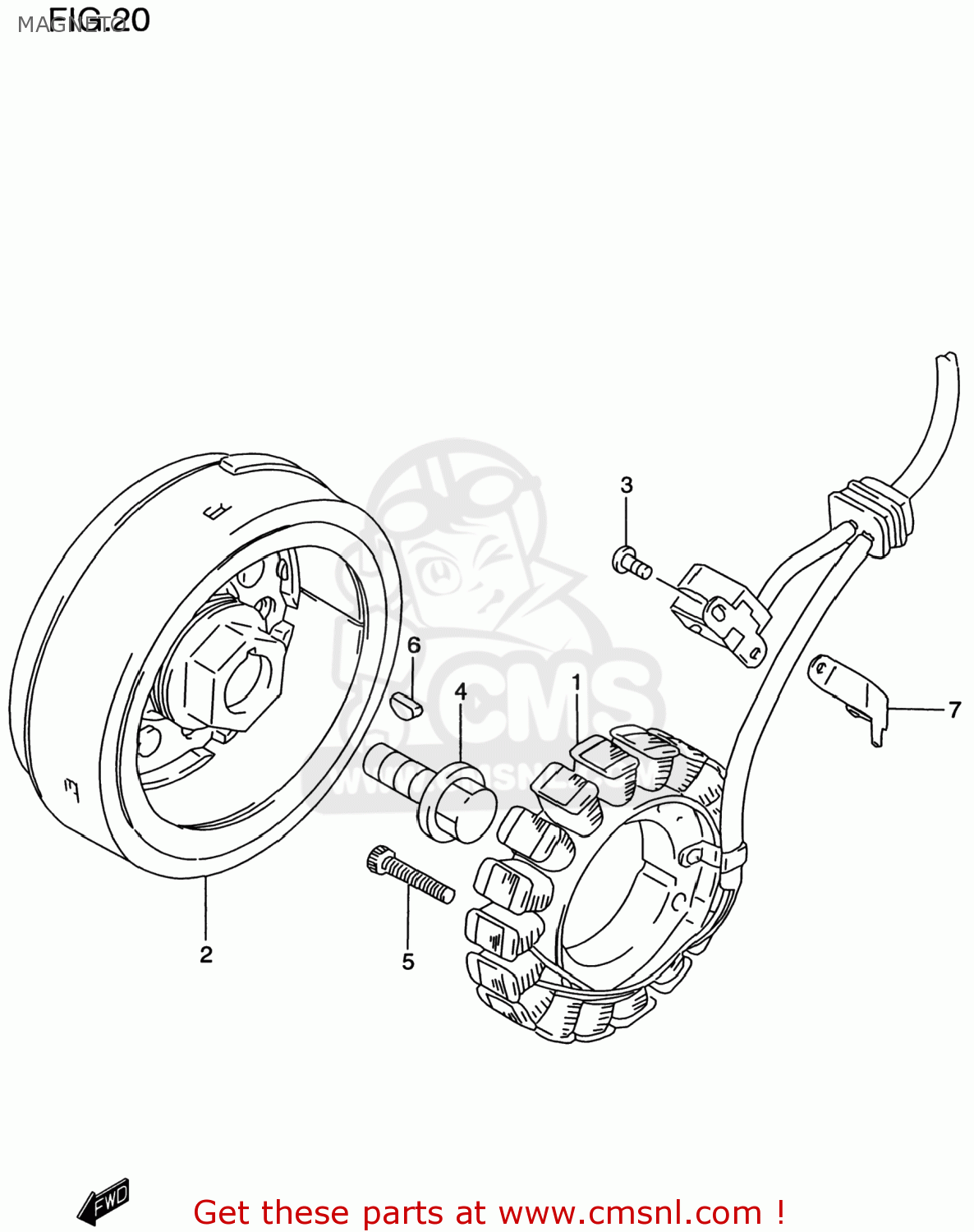

Magneto diagram DR650SE 1997 (V) USA (E03)
MAGNETO DR650SE 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3210132E00
ref: 1
STARTER ASSY
€ 703.00
2
3210232E00
ref: 2
ROTOR ASSY
€ 599.00
3
0211205103
ref: 3
02112-0510A
SCREW
€ 2.00
4
0910314001
ref: 4
BOLT(14X43)
€ 7.00
5
0713006303
ref: 5
07130-0630B
BOLT
€ 3.00
6
0942005007
ref: 6
KEY
€ 3.00
7
3237132E00
ref: 7
CLAMP,MAGNETO LEAD
€ 4.00
