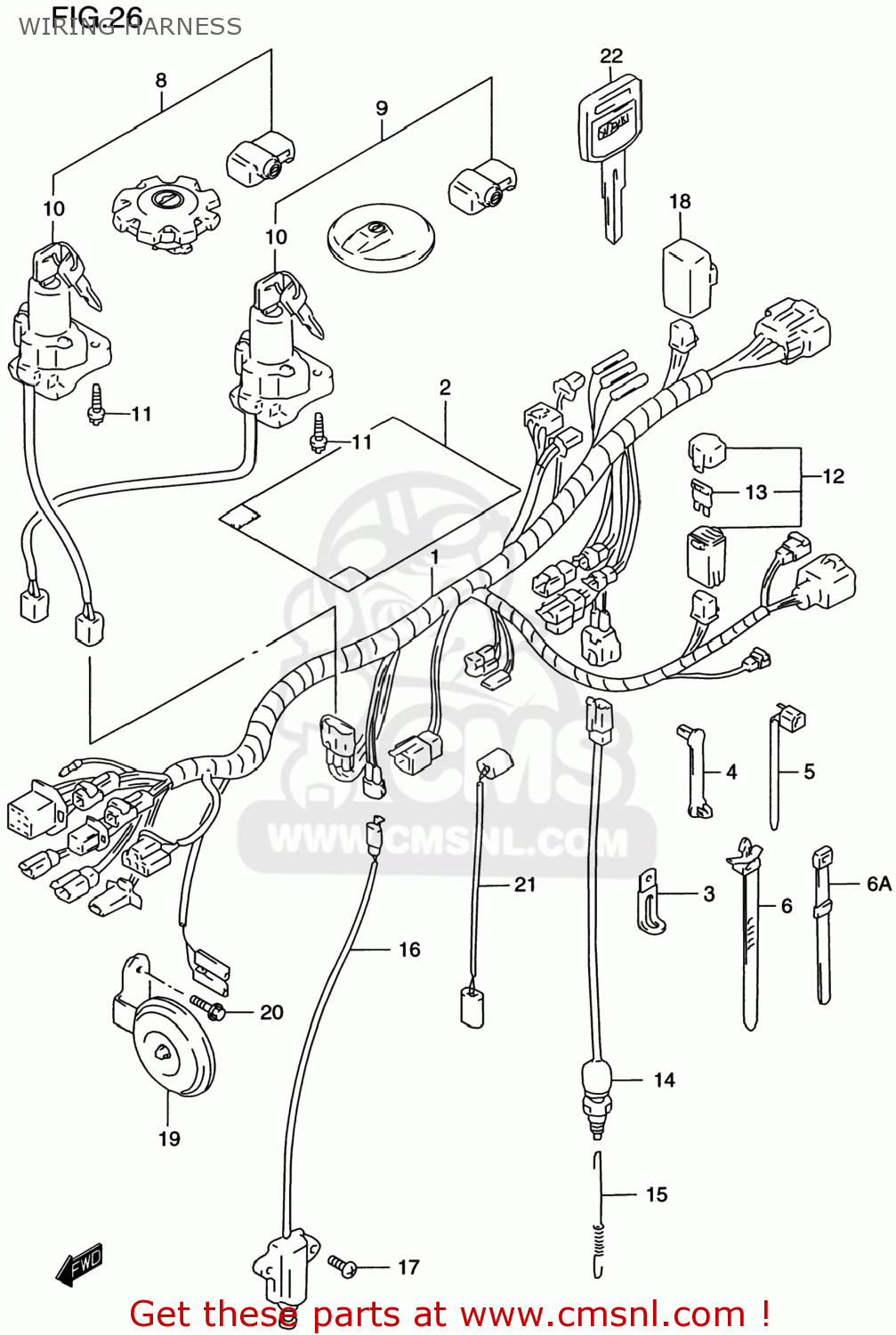

WIRING HARNESS

ref

part #

description

quantity

1-1

3661032E00
ref: 1-1

HARNESS,WIRING

€ 418.00

1-2

3661032E30
ref: 1-2

HARNESS,WIRING

€ 450.00

2

3661815D20
ref: 2

COVER,WIRING HARNESS

€ 12.00

3-1

0940406429
ref: 3-1

CLAMP(L:45)

€ 2.50

3-2

0940408419
ref: 3-2

CLAMP(L:80)

€ 2.00

4

0940703401
ref: 4

CLAMP(L:33)

€ 3.50

5-1

0940711401
ref: 5-1

CLAMP(L:95)

€ 2.50

5-2

0940714403
ref: 5-2

CLAMP(L:125)

€ 2.50

5-3

0940718402
ref: 5-3

CLAMP(L:165)

€ 2.50

5-4

0940725401
ref: 5-4

CLAMP(L:235)

€ 4.00

6

0940711402
ref: 6

CLAMP(L:90)

€ 2.50

6A

0940712402
ref: 6A

CLAMP(L:120)

€ 3.00

7-1

3710032E00
ref: 7-1
37100-32E01

LOCK ASSEMBLY,STEERING

€ 156.50

7-2

3710032E01
ref: 7-2

LOCK ASSY,STEERING

€ 156.50

8

3700004810
ref: 8
37000-04811

LOCK SET

€ 247.00

9

3700004820
ref: 9
37000-04821

LOCK SET

€ 250.50

10

3710004F00
ref: 10

LOCK ASSY,STEERING

€ 143.00

11

0913908016
ref: 11

BOLT(8X20)

€ 3.50

12

3674032E00
ref: 12

BOX ASSY,FUSE

€ 19.50

13

0948110101
ref: 13

FUSE(10A)

€ 2.50

14

3774032E00
ref: 14

SWITCH ASSY,STOP LAMP

€ 21.50

15

0944306016
ref: 15

SPRING

€ 2.50

16

3784044X50
ref: 16

SWITCH ASSY,SIDE STAND

€ 75.50

17

0211206163
ref: 17
02112-0616A

SCREW 6X16

€ 2.00

18

3874024X50
ref: 18

RELAY ASSY

€ 37.50

19

3850032E00
ref: 19

HORN ASSY

€ 54.50

20

0155006123
ref: 20
01550-0612A

BOLT

€ 2.50

21

3685132E00
ref: 21

WIRE,THROTTLE SENSOR

€ 6.50

22

3714646E00
ref: 22
37146-33E00

KEY,BLANK

€ 13.00
