SPEEDOMETER
DR650SE 1997 (V) USA (E03)

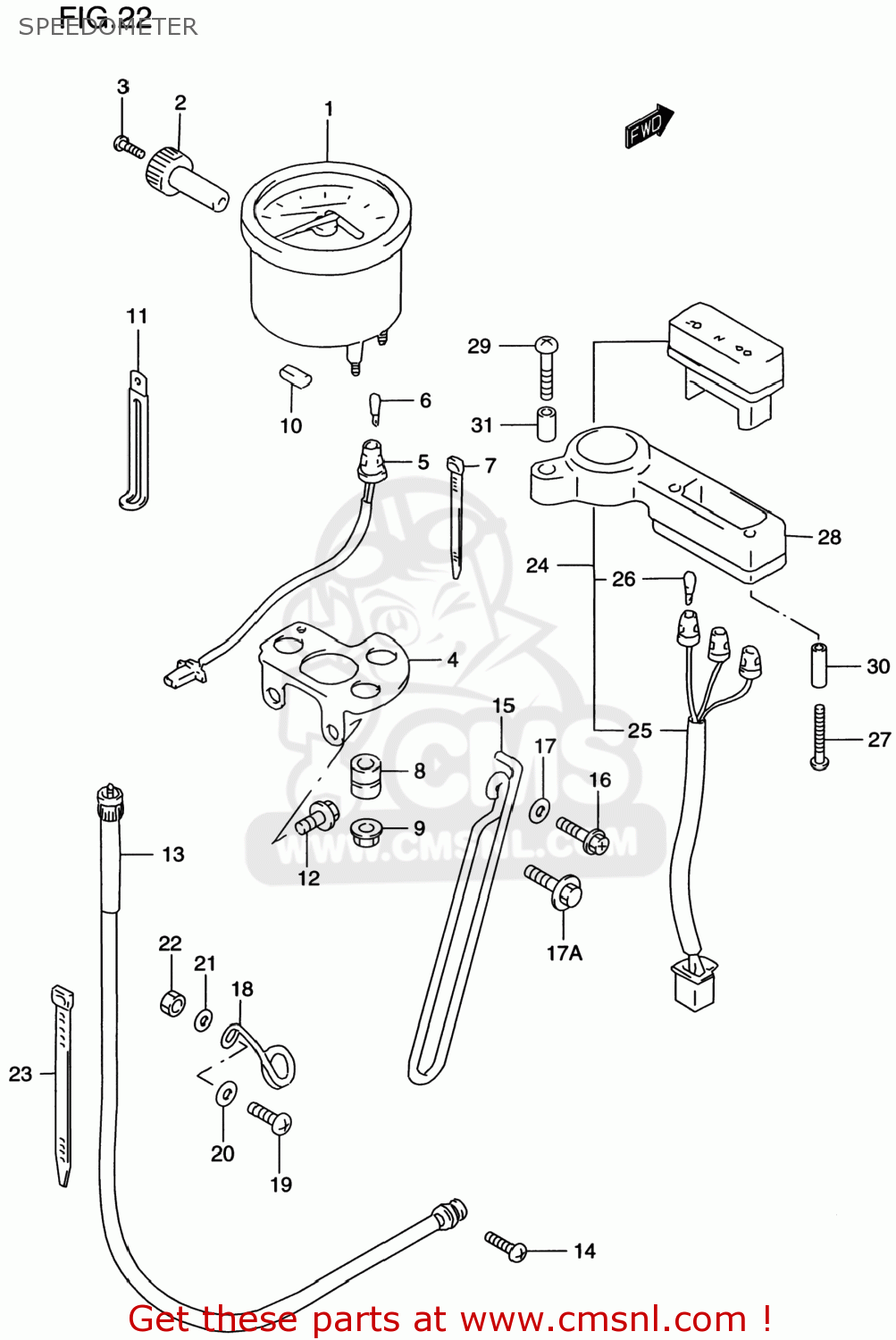

Speedometer diagram DR650SE 1997 (V) USA (E03)
SPEEDOMETER DR650SE 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3412032E00
ref: 1-1
34120-32E02
SPEEDOMETER (MILE/KILO)
€ 343.50
1-2
3412032E01
ref: 1-2
34120-32E02
SPEEDOMETER
€ 343.50
1-3
3412032E02
ref: 1-3
SPEEDOMETER
€ 343.50
1-4
3412032E10
ref: 1-4
SPEEDOMETER
€ 354.00
1-5
3412032E11
ref: 1-5
SPEEDOMETER
€ 354.00
1-6
3412032E12
ref: 1-6
SPEEDOMETER
€ 354.00
2
3412444B30
ref: 2
KNOB,TRIP
€ 7.00
3
3418412D00
ref: 3
SCREW,TRIP KNOB
€ 2.00
4
3495032E10
ref: 4
BRACKET,METER
€ 22.00
5-1
3417015D20
ref: 5-1
34170-15D21
SOCKET,METER
€ 15.00
5-2
3417015D21
ref: 5-2
SOCKET
€ 15.00
6-1
0947112085
ref: 6-1
BULB(12V3W,WB371,T7)
€ 3.00
6-2
0947112108
ref: 6-2
BULB(12V1.7W,T6.5)
€ 2.00
7
3495442A90
ref: 7
CLAMP
€ 3.50
8
3418930921
ref: 8
CUSHION
€ 3.00
9
0915906076
ref: 9
NUT
€ 3.00
10
3416103D00
ref: 10
CUSHION
€ 2.00
11
0940410417
ref: 11
CLAMP(L:97)
€ 2.50
12
0155006123
ref: 12
01550-0612A
BOLT
€ 2.50
13
3491032E00
ref: 13
CABLE ASSY,SPEEDOMETER
€ 29.00
14
0211205163
ref: 14
02112-0516A
SCREW
€ 2.00
15
3493814D30
ref: 15
GUIDE,METER CABLE NO.2
€ 8.00
16
0214206203
ref: 16
02142-0620A
SCREW
€ 2.00
17
0916006066
ref: 17
WASHER(6.5X20X1.6)
€ 2.00
17A
0911606167
ref: 17A
BOLT(6X20)
€ 2.00
18-1
3493814D20
ref: 18-1
34938-14D21
GUIDE,METER CABLE NO.3
€ 6.50
18-2
3493814D21
ref: 18-2
GUIDE,SPEEDOMETER CABLE
€ 6.50
19
0214206163
ref: 19
02142-0616A
SCREW
€ 2.50
20-1
0916006057
ref: 20-1
09160-06109
WASHER
€ 2.00
20-2
0916006109
ref: 20-2
WASHER(6.5X18X1.6)
€ 2.00
21
0916906054
ref: 21
09169-06053
WASHER
€ 2.00
22
0831000063
ref: 22
08310-0006A
NUT 6MM
€ 2.00
23
0940711401
ref: 23
CLAMP(L:95)
€ 2.50
24-1
3638032E20
ref: 24-1
BOX ASSY,PILOT LAMP
€ 0.00
24-2
3638032E10
ref: 24-2
BOX ASSY,PILOT LAMP
€ 80.00
25
3639432E00
ref: 25
SOCKET & CORD
€ 26.50
26
0947112118
ref: 26
BULB(13.5V,2W,A7427)
€ 2.00
27
0351114353
ref: 27
SCREW
€ 2.00
28
3638232E00
ref: 28
HOLDER,PILOT BOX
€ 12.00
29
0913906029
ref: 29
SCREW(6X25)
€ 5.00
30-1
0918004016
ref: 30-1
09180-04024
SPACER (4.5X6.5X25)
€ 3.50
30-2
0918004024
ref: 30-2
SPACER(4.5X6.5X25)
€ 3.50
31-1
0918006040
ref: 31-1
09180-06251
SPACER (6.1X8X15.5)
€ 2.00
31-2
0918006251
ref: 31-2
SPACER(6.1X8X15.5)
€ 2.00
