DR650SE 1997 (V) USA (E03)

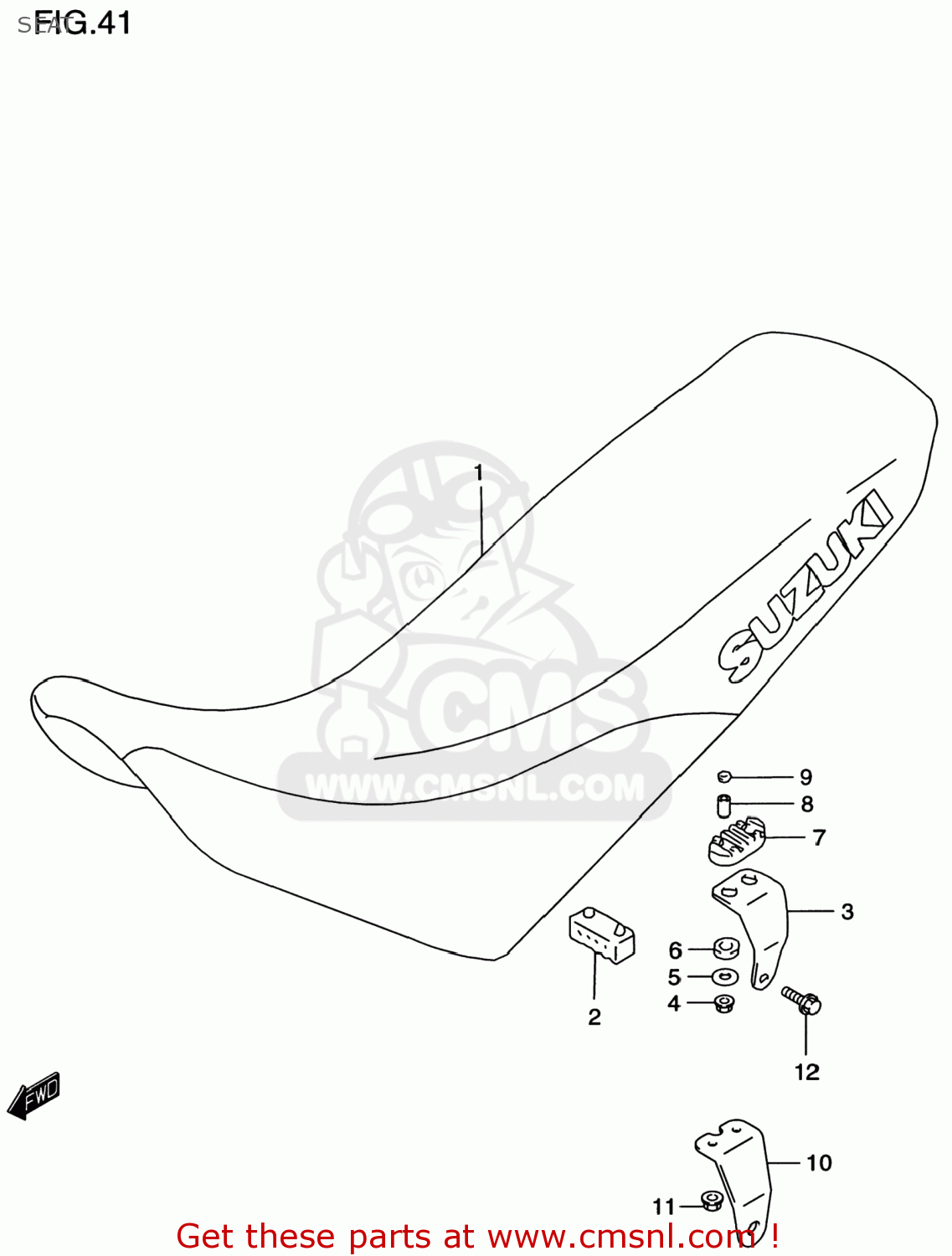

Seat diagram DR650SE 1997 (V) USA (E03)
SEAT DR650SE 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510032E00E8U
ref: 1-1
45100-32E01-E8U
SEAT SET
€ 289.00
1-2
4510032E01E8U
ref: 1-2
SEAT ASSY
€ 289.00
1-3
4510032E10L3R
ref: 1-3
SEAT SET
€ 0.00
1-4
4510032E20N9K
ref: 1-4
SEAT SET
€ 292.00
1-5
4510032E20N9M
ref: 1-5
SEAT SET
€ 276.50
2
4514931300
ref: 2
CUSHION,SEAT(40X20X15)
€ 2.00
3
4511732E00
ref: 3
BRACKET,SEAT
€ 0.00
4
0831610063
ref: 4
08316-1006B
NUT
€ 2.50
5
0916006088
ref: 5
WASHER(6.5X20X1.6)
€ 2.00
6
4514732E00
ref: 6
CUSHION,SEAT
€ 0.00
7
4514932E00
ref: 7
CUSHION,SEAT
€ 5.00
8
4521932E00
ref: 8
SPACER,SEAT
€ 0.00
9
0832201067
ref: 9
WASHER
€ 2.00
10
4511732E10
ref: 10
BRACKET
€ 13.00
11
0831610063
ref: 11
08316-1006B
NUT
€ 2.50
12
0155008123
ref: 12
01550-0812A
BOLT
€ 3.50
