CARBURETOR
DR650SE 1998 (W) USA (E03)

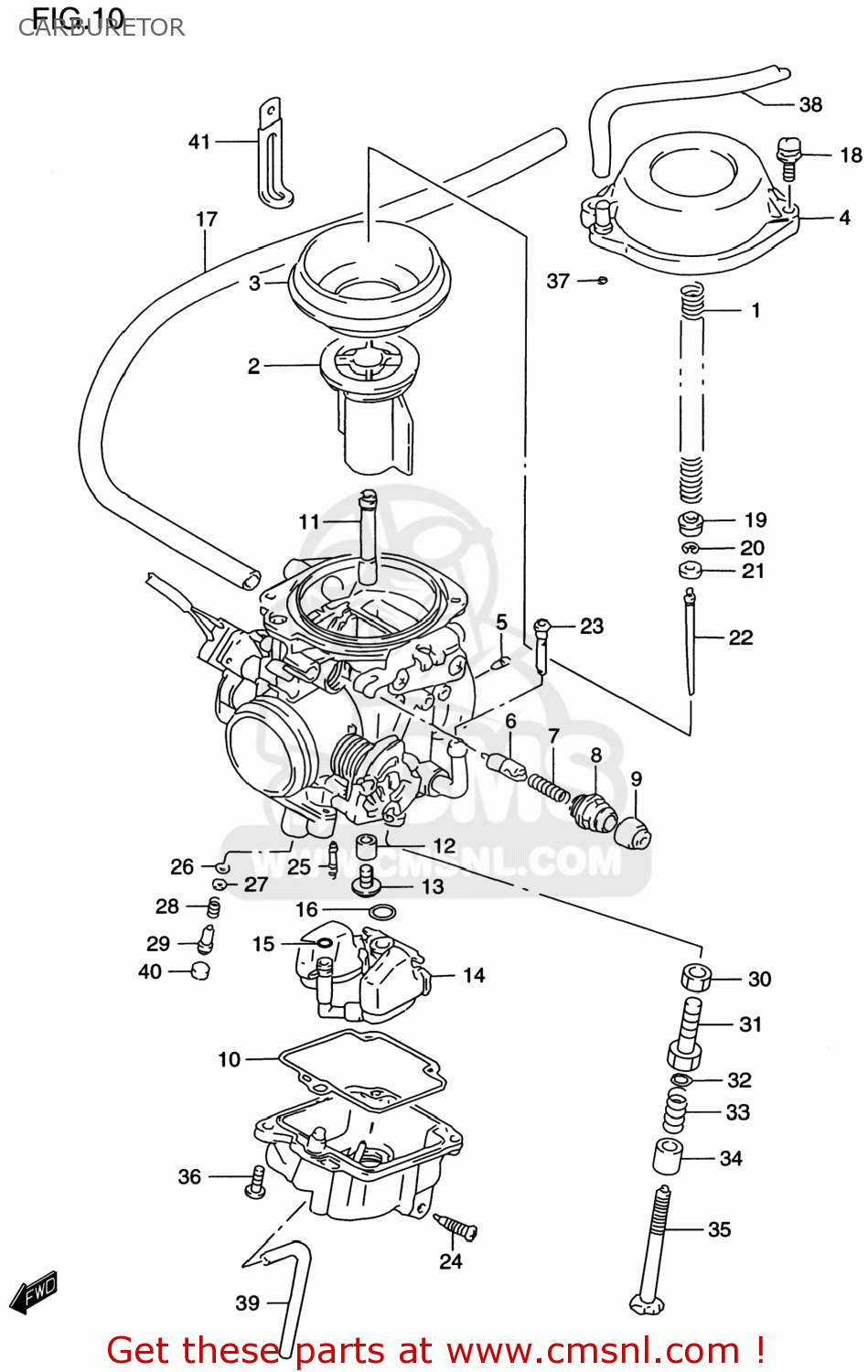

Carburetor diagram DR650SE 1998 (W) USA (E03)
CARBURETOR DR650SE 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1320032E10
ref:
13200-32E12
CARBURETOR ASSEMBLY
€ 355.00
1320032E11
ref:
13200-32E12
CARBURETOR ASSEMBLY
€ 355.00
1320032E50
ref:
CARBURETOR ASSY MODEL T E28
€ 0.00
1320032E60
ref:
13200-32E61
CARBURETOR ASSEMBLY
€ 274.00
1320032E61
ref:
CARBURETOR ASSY
€ 274.00
1
1341717D00
ref: 1
SPRING
€ 5.50
2
1350132E00
ref: 2
VALVE,PISTON
€ 57.00
3
1350707D01
ref: 3
DIAPHRAGM
€ 24.50
4
1350241C00
ref: 4
COVER,DIAPHRAGM
€ 31.50
5
0949320007
ref: 5
JET,AIR(1.0)
€ 10.00
6
1341112D00
ref: 6
PLUNGER
€ 18.00
7
1341722010
ref: 7
SPRING
€ 3.00
8
1341843410
ref: 8
HOLDER,GUIDE
€ 6.50
9
1368104010
ref: 9
CAP
€ 3.00
10
1325844B00
ref: 10
GASKET,FLOAT CHAMBER (NAS)
€ 8.50
11-1
0949400884
ref: 11-1
JET,NEEDLE(Y-5M)
€ 33.50
11-2
0949400882
ref: 11-2
JET,NEEDLE
€ 33.50
12
1333107D00
ref: 12
RING
€ 4.50
13
0949128010
ref: 13
JET,MAIN(140)
€ 8.50
14
1325012E00
ref: 14
13250-12EH0
FLOAT/NEEDLE VALVE ASSEMBLY
€ 79.50
15
1337446710
ref: 15
O RING
€ 4.50
16
1337444080
ref: 16
13374-35C00
O-RING,NEEDLE VALVE
€ 6.00
17
1368332E00
ref: 17
HOSE(6.5X10.5X275)
€ 12.50
18
0211275163
ref: 18
02112-7516A
SCREW
€ 2.50
19
1333112D00
ref: 19
RING
€ 4.50
20
1339431210
ref: 20
CLIP,NEEDLE
€ 3.50
21
1338707D00
ref: 21
RING
€ 4.50
22-1
1338332E10
ref: 22-1
NEEDLE,JET(6F23)
€ 13.50
22-2
1338332E00
ref: 22-2
NEEDLE,JET
€ 13.00
23
1323612C00
ref: 23
FILTER
€ 5.00
24
1324713A00
ref: 24
13247-02340
SCREW,DRAIN
€ 5.50
25
0949242010
ref: 25
JET,PILOT(42.5)
€ 8.50
26
1329529900
ref: 26
O RING,PILOT AIR SCREW
€ 4.00
27
1329129900
ref: 27
WASHER
€ 2.00
28
1326847070
ref: 28
SPRING
€ 5.00
29
1327947070
ref: 29
SCREW,PILOT
€ 11.50
30
1360737010
ref: 30
NUT
€ 2.00
31
1326731D00
ref: 31
ADJUSTER
€ 21.50
32
1361543010
ref: 32
WASHER,STARTER SHAFT
€ 2.50
33
1327133C00
ref: 33
SPRING
€ 4.50
34
1343295210
ref: 34
RING
€ 4.00
35
1326731D10
ref: 35
ADJUSTER
€ 12.00
36
1360105148
ref: 36
13601-05148-XC0
SCREW(5X14)
€ 3.00
37
1327802340
ref: 37
O RING
€ 1.50
38-1
0935445853600
ref: 38-1
09355-45855-600
HOSE (4.5X8.5X600)
€ 14.00
38-2
0935545855600
ref: 38-2
HOSE(4.5X8.5X600)
€ 14.00
39-1
1368432E00
ref: 39-1
HOSE (3X5X425)
€ 9.00
39-2
1368432E00
ref: 39-2
HOSE (3X5X425)
€ 9.00
39-2
1368432E00
ref: 39-2
HOSE (3X5X425)
€ 9.00
39-3
1368432E10
ref: 39-3
HOSE(3X5X450)
€ 9.00
39-3
1368432E10
ref: 39-3
HOSE(3X5X450)
€ 9.00
40
1328105A00
ref: 40
PLUG
€ 3.50
40
1328105A00
ref: 40
PLUG
€ 3.50
41-1
0940406431
ref: 41-1
09404-06432
CLAMP(L:65)
€ 2.50
41-2
0940406432
ref: 41-2
CLAMP(L:65)
€ 2.50
