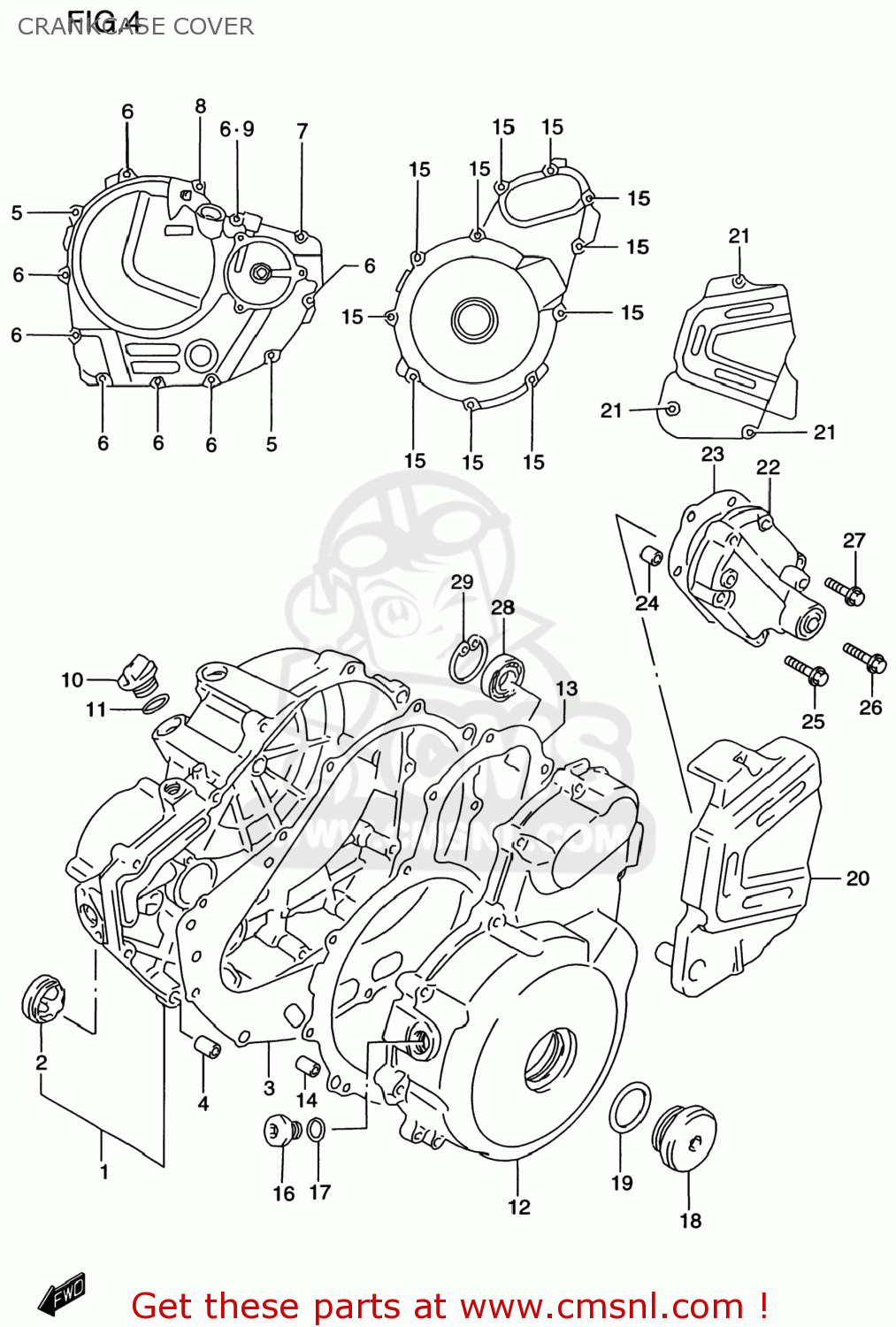

CRANKCASE COVER

ref

part #

description

quantity

1

1134032E00
ref: 1

COVER,CLUTCH

€ 192.50

2

1197133210
ref: 2

LENS,OIL LEVEL CHECK

€ 13.50

3

1148232E00
ref: 3

GASKET,CLUTCH COVER

€ 17.00

4

0421109149
ref: 4

PIN

€ 2.00

5

0154706457
ref: 5

BOLT

€ 2.50

6

0154706357
ref: 6

BOLT

€ 2.50

7

0154706307
ref: 7

BOLT

€ 2.50

8

0154706257
ref: 8

BOLT

€ 2.50

9-1

0916806024
ref: 9-1

GASKET(5.8X11X1.2) (NAS)

€ 2.00

9-2

0916806023
ref: 9-2

GASKET(5.8X13X1.2) (NAS)

€ 2.00

10

0925920019
ref: 10

PLUG

€ 9.50

11

0928017003
ref: 11

O RING(D:3.1,ID:16.8)

€ 2.00

12-1

1135132E00
ref: 12-1
11351-32E01

COVER,MAGNETO

€ 152.00

12-2

1135132E01
ref: 12-2

COVER,MAGNETO

€ 152.00

13

1148332E00
ref: 13

GASKET,MAGNETO COVER

€ 14.00

14

0421109149
ref: 14

PIN

€ 2.00

15

0154706307
ref: 15

BOLT

€ 2.50

16

0924814005
ref: 16

PLUG,14X12

€ 5.00

17

0916814002
ref: 17
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

18

092593601620H
ref: 18

PLUG(SILVER)

€ 10.50

19

0928033004
ref: 19

O RING(D:3.1,ID:32.7)

€ 2.50

20

1136132E00
ref: 20

COVER,ENGINE SPROCKET

€ 46.50

21

0154706357
ref: 21

BOLT

€ 2.50

22

1137112D30
ref: 22

COVER,GEAR SHIFT

€ 41.50

23

1148512D01
ref: 23

GASKET,GEAR SHIFT COVER (NAS)

€ 4.50

24

0421109129
ref: 24

PIN

€ 2.00

25

0154706353
ref: 25
01547-0635B

BOLT

€ 3.00

26

0154706303
ref: 26
01547-0630B

BOLT,G/S SWITC

€ 3.00

27

0154706203
ref: 27
01547-0620B

SCREW

€ 2.50

28-1

0926212001
ref: 28-1

BEARING(12X28X8)

€ 15.00

28-2

0926212001
ref: 28-2

BEARING(12X28X8)

€ 15.00

28-2

0926212001
ref: 28-2

BEARING(12X28X8)

€ 15.00

29-1

0833141286
ref: 29-1
08331-4128A

CIRCLIP

€ 3.50

29-2

0833141286
ref: 29-2
08331-4128A

CIRCLIP

€ 3.50

29-2

0833141286
ref: 29-2
08331-4128A

CIRCLIP

€ 3.50
