TURN SIGNAL LAMP
DR650SE 1998 (W) USA (E03)

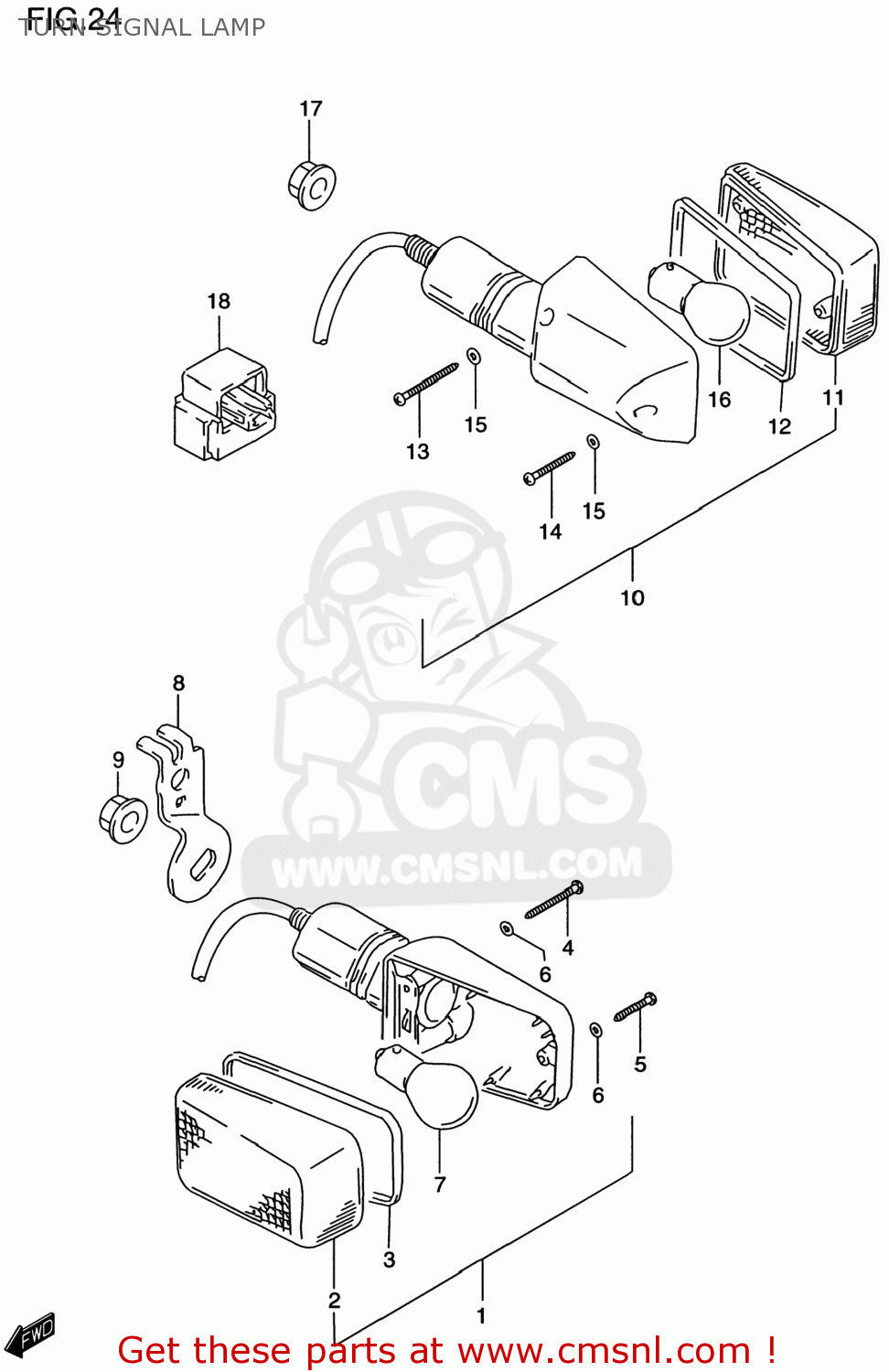

Turn signal lamp diagram DR650SE 1998 (W) USA (E03)
TURN SIGNAL LAMP DR650SE 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3560129E30
ref: 1
LAMP ASSY,FR TURN SIGNAL
€ 57.50
2
3561217C20
ref: 2
LENS
€ 6.50
3
3561327A00
ref: 3
GASKET (NAS)
€ 3.00
4
3562327A00
ref: 4
SCREW(3X30)
€ 1.50
5
3572540511
ref: 5
SCREW
€ 1.50
6
3562727A02
ref: 6
GASKET (NAS)
€ 1.50
7
0947112045
ref: 7
BULB(12V21W)
€ 5.00
8-1
3567132E00
ref: 8-1
BRACKET,FR TURNSIGNAL,R
€ 6.50
8-2
3568132E00
ref: 8-2
BRACKET,FR TURNSIGNAL,L
€ 6.50
9
0831610103
ref: 9
08316-1010B
NUT
€ 2.00
10
3560329E90
ref: 10
LAMP ASSY,RR TURNSIGNAL,R
€ 62.00
11
3565217C20
ref: 11
LENS
€ 6.50
12
3561327A00
ref: 12
GASKET (NAS)
€ 3.00
13
3562327A00
ref: 13
SCREW(3X30)
€ 1.50
14
3572540511
ref: 14
SCREW
€ 1.50
15
3562727A02
ref: 15
GASKET (NAS)
€ 1.50
16
0947112045
ref: 16
BULB(12V21W)
€ 5.00
17
0831610103
ref: 17
08316-1010B
NUT
€ 2.00
18-1
3861045D01
ref: 18-1
RELAY ASSY,TURNSIGNAL LAMP
€ 68.50
18-2
3861026E00
ref: 18-2
RELAY ASSY
€ 47.00
