CYLINDER HEAD
DR650SE 1998 (W) USA (E03)

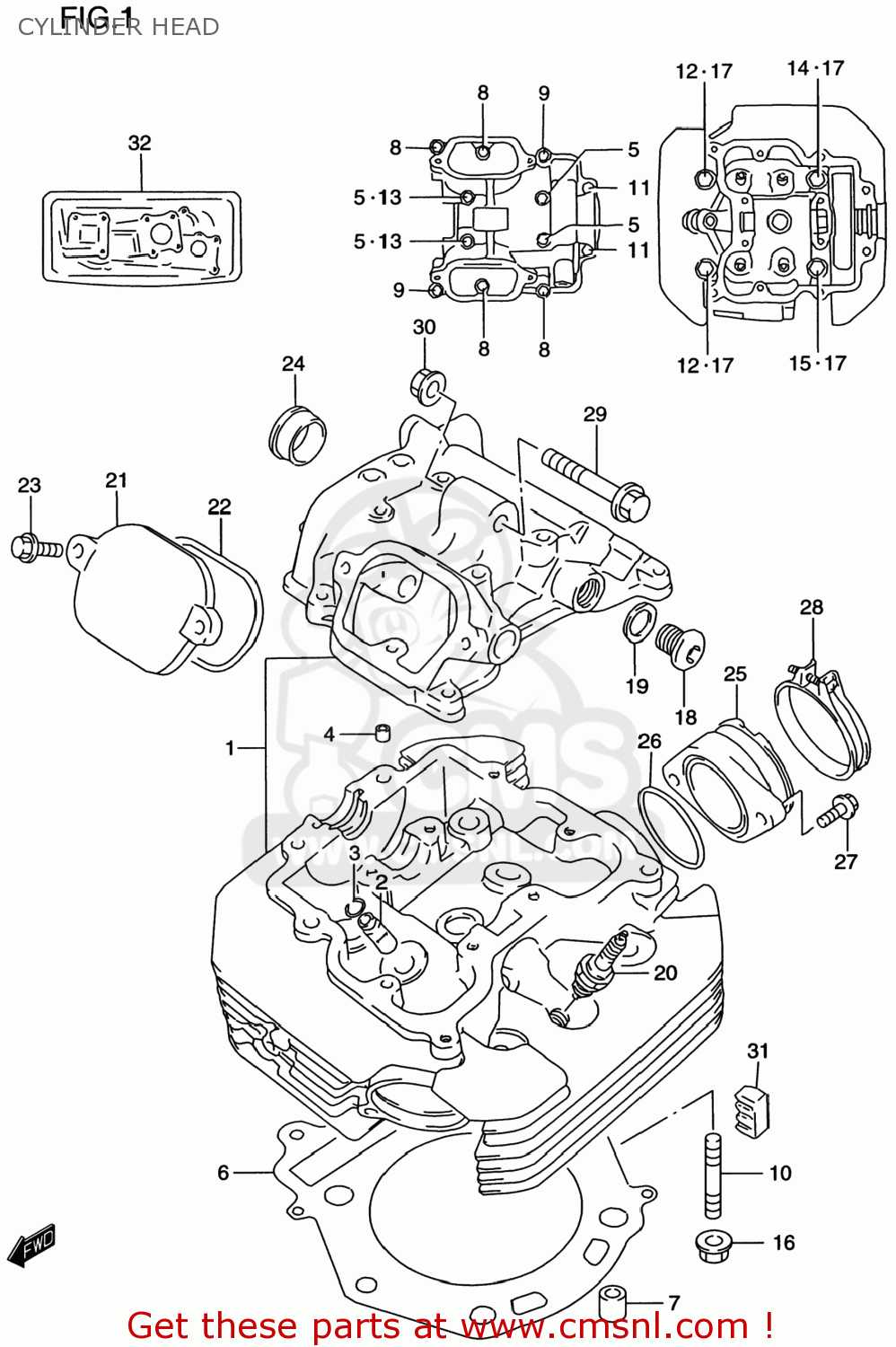

Cylinder head diagram DR650SE 1998 (W) USA (E03)
CYLINDER HEAD DR650SE 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1110032E00
ref: 1
HEAD ASSY,CYLINDER
€ 1,193.00
2
1111532E70
ref: 2
GUIDE,VALVE
€ 18.50
3
0938110004
ref: 3
RING,SNAP
€ 1.50
4
0920608001
ref: 4
PIN(6.2X8X11)
€ 2.00
5
0910306102
ref: 5
BOLT(6X55)
€ 2.50
6
1114132E00
ref: 6
GASKET,CYLINDER HEAD
€ 31.00
7
0421113189
ref: 7
PIN
€ 2.50
8
0155006253
ref: 8
01550-0625A
BOLT
€ 2.50
9
0155006303
ref: 9
01550-0630A
BOLT
€ 2.50
10
0910808142
ref: 10
BOLT,STUD
€ 3.00
11
0910306167
ref: 11
BOLT(6X115)
€ 4.50
12
0910310178
ref: 12
BOLT(10X180)
€ 12.50
13
0916806023
ref: 13
GASKET(5.8X13X1.2) (NAS)
€ 2.00
14
0910310179
ref: 14
BOLT(10X190)
€ 12.50
15
0910310180
ref: 15
BOLT(10X200)
€ 10.50
16
0831610083
ref: 16
08316-1008B
NUT
€ 3.00
17
0916810017
ref: 17
GASKET(10.5X22X2) (NAS)
€ 3.50
18
0924814005
ref: 18
PLUG,14X12
€ 5.00
19
0916814002
ref: 19
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
20-1
0948200460
ref: 20-1
PLUG,SPARK(CR10E)
€ 8.50
20-2
0948200461
ref: 20-2
PLUG,SPARK(U31ESR-N)
€ 8.50
20-3
0948200458
ref: 20-3
PLUG,SPARK(NGK CR9E)
€ 8.50
20-4
0948200459
ref: 20-4
PLUG,SPARK(U27ESR-N)
€ 8.50
21
1117544B00
ref: 21
CAP,INSPECTION
€ 14.50
22-1
1117744B00
ref: 22-1
11177-44B01
O-RING,INSPECTION CAP
€ 6.00
22-2
1117744B01
ref: 22-2
O RING,INSPECTION CAP
€ 6.00
23
0155006203
ref: 23
01550-0620A
BOLT
€ 2.50
24
0924125007
ref: 24
PLUG,OD:30
€ 6.00
25
1311032E00
ref: 25
PIPE,INTAKE
€ 29.00
26
0928046002
ref: 26
O RING(D:2.4,ID:45.7)
€ 9.50
27
0912606014
ref: 27
SCREW(6X16)
€ 2.00
28
0940258208
ref: 28
CLAMP
€ 5.50
29
0910308332
ref: 29
BOLT(8X53)
€ 3.50
30-1
0831931085
ref: 30-1
08319-3108A
NUT
€ 2.50
30-2
0831931083
ref: 30-2
08319-3108A
NUT
€ 2.50
31
1115132E00
ref: 31
PAD,CYLINDER HEAD RUBBER
€ 4.50
32-1
1140032870
ref: 32-1
11400-32874
GASKET SET (NAS)
€ 85.50
32-2
1140032871
ref: 32-2
11400-32874
GASKET SET (NAS)
€ 85.50
32-3
1140032872
ref: 32-3
11400-32874
GASKET SET (NA) (NAS)
€ 85.50
