FRONT MASTER CYLINDER
DR650SE 1998 (W) USA (E03)

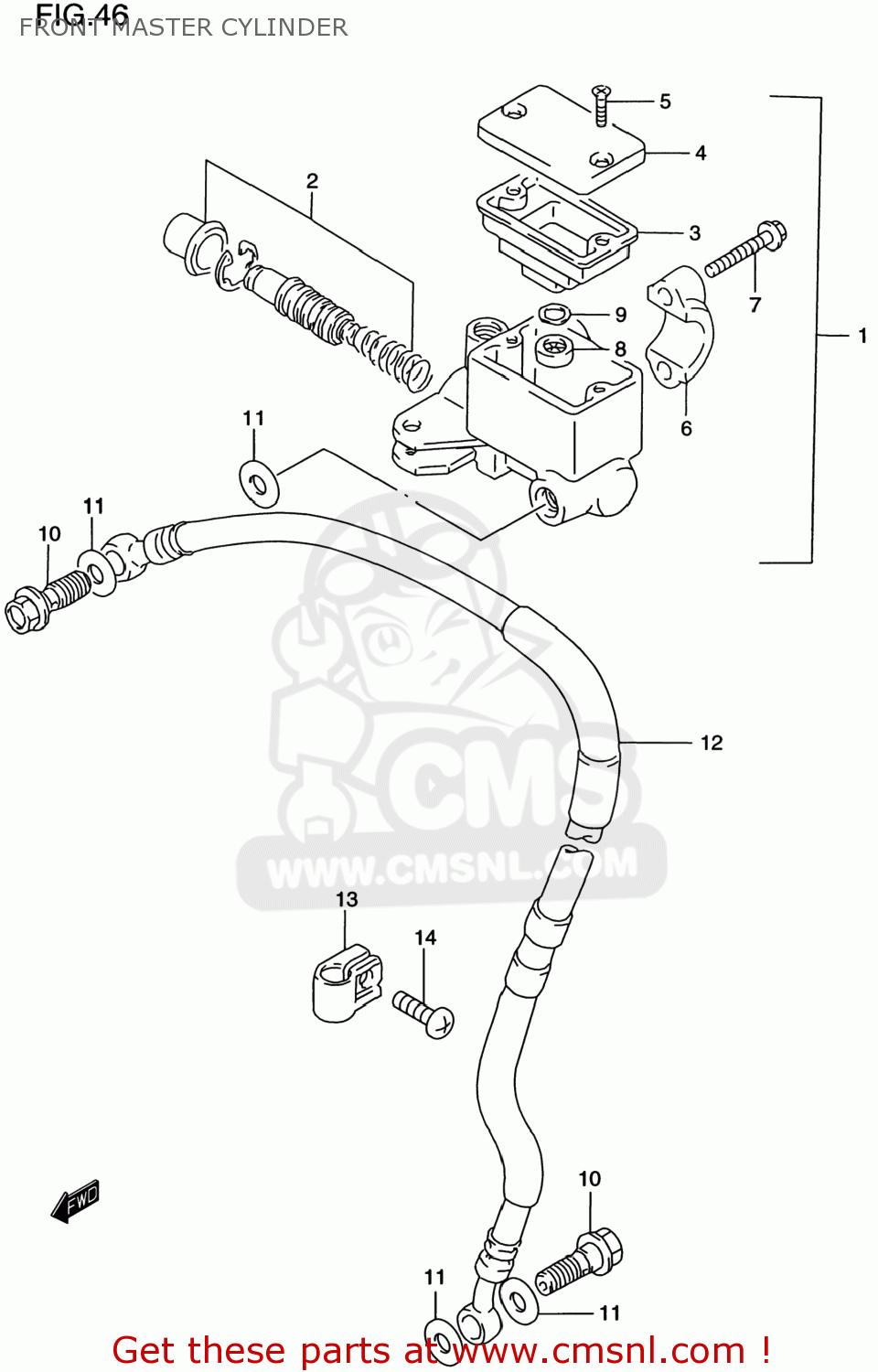

Front master cylinder diagram DR650SE 1998 (W) USA (E03)
FRONT MASTER CYLINDER DR650SE 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5960031D00
ref: 1
59600-31D01
CYLINDER ASSEMBLY,FRONT MASTER
€ 175.50
2
5960004810
ref: 2
PISTON/CUP SET
€ 37.50
3
5966744B00
ref: 3
DIAPHRAGM
€ 8.00
4
6966924A01
ref: 4
CAP
€ 12.00
5
6968949300
ref: 5
SCREW
€ 1.50
6
5967136500
ref: 6
HOLDER
€ 10.00
7
5967519C00
ref: 7
BOLT(6X25)
€ 3.00
8
5974815400
ref: 8
SEPERATOR
€ 7.50
9
5974915400
ref: 9
PLATE
€ 2.00
10
0936010042
ref: 10
09360-10062
BOLT UNION
€ 5.00
11
0916110009
ref: 11
WASHER(10X15X1.5)
€ 2.00
12
5948032E00
ref: 12
59480-32E01
HOSE COMP,FRONT BRAKE
€ 83.00
13
5862107A10
ref: 13
58621-07A20
CLAMP,BRAKE HOSE
€ 3.50
14
0214206203
ref: 14
02142-0620A
SCREW
€ 2.00
