CAM CHAIN

DR650SE 2007 (K7) USA (E03)

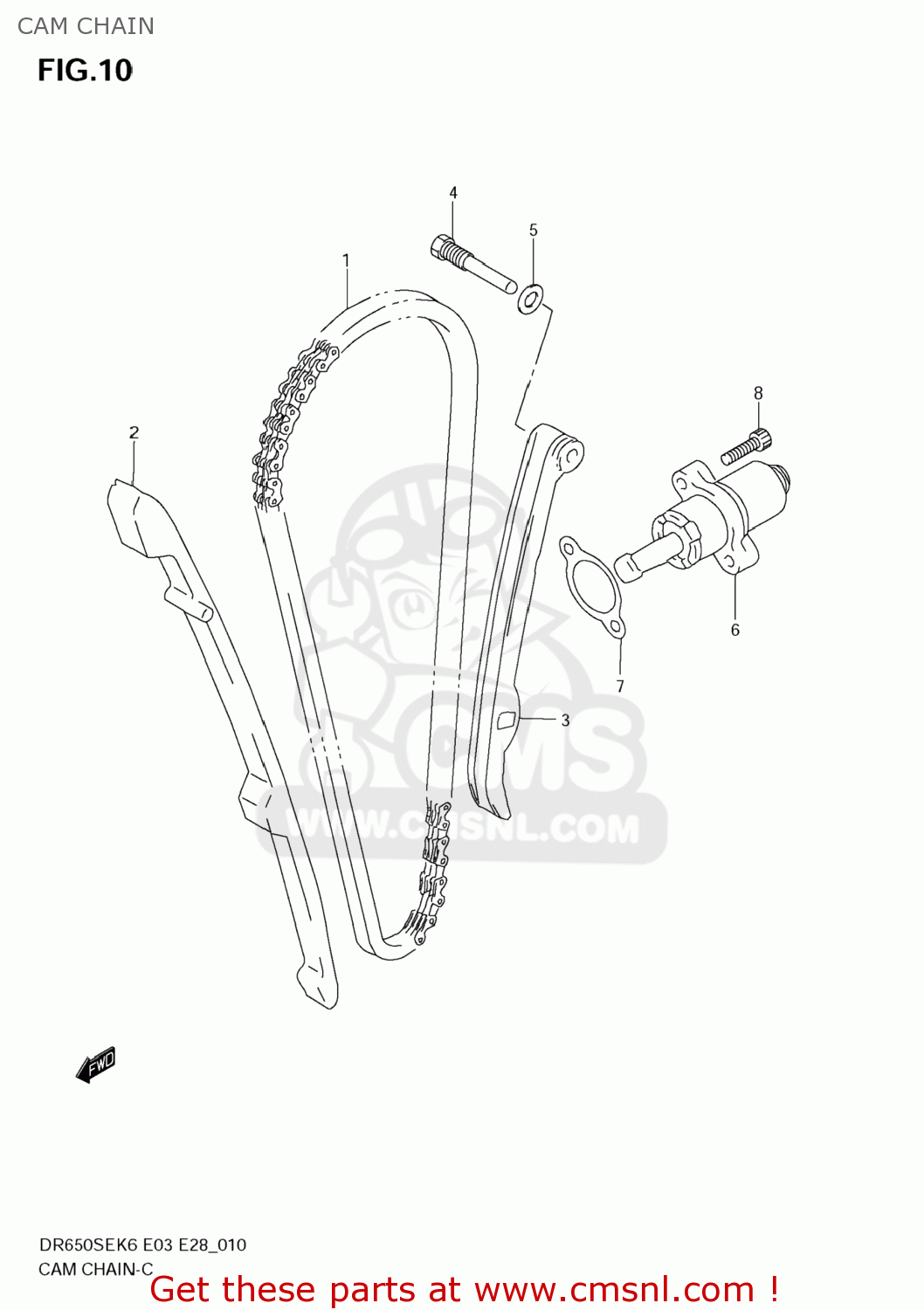

Cam chain diagram DR650SE 2007 (K7) USA (E03)

CAM CHAIN DR650SE 2007 (K7) USA (E03)

CAM CHAIN DR650SE 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1276032E00
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 94.50

2

1277132E00
ref: 2

GUIDE,CAM CHAIN

€ 36.50

3

1281132E00
ref: 3

TENSIONER,CAM CHAIN

€ 37.00

4

1281232410
ref: 4

BOLT,CAM CHAIN TENSIONER

€ 3.50

5

0916808016
ref: 5

GASKET(8.2X14X1) (NAS)

€ 1.00

6

1283032E00
ref: 6

ADJUSTER ASSY,TENSIONER

€ 63.00

7

1283724A10
ref: 7

GASKET,TENSIONER ADJUSTER (NAS)

€ 3.50

8

071300625B
ref: 8

BOLT

€ 3.00
