SEAT
DR650SE 2007 (K7) USA (E03)

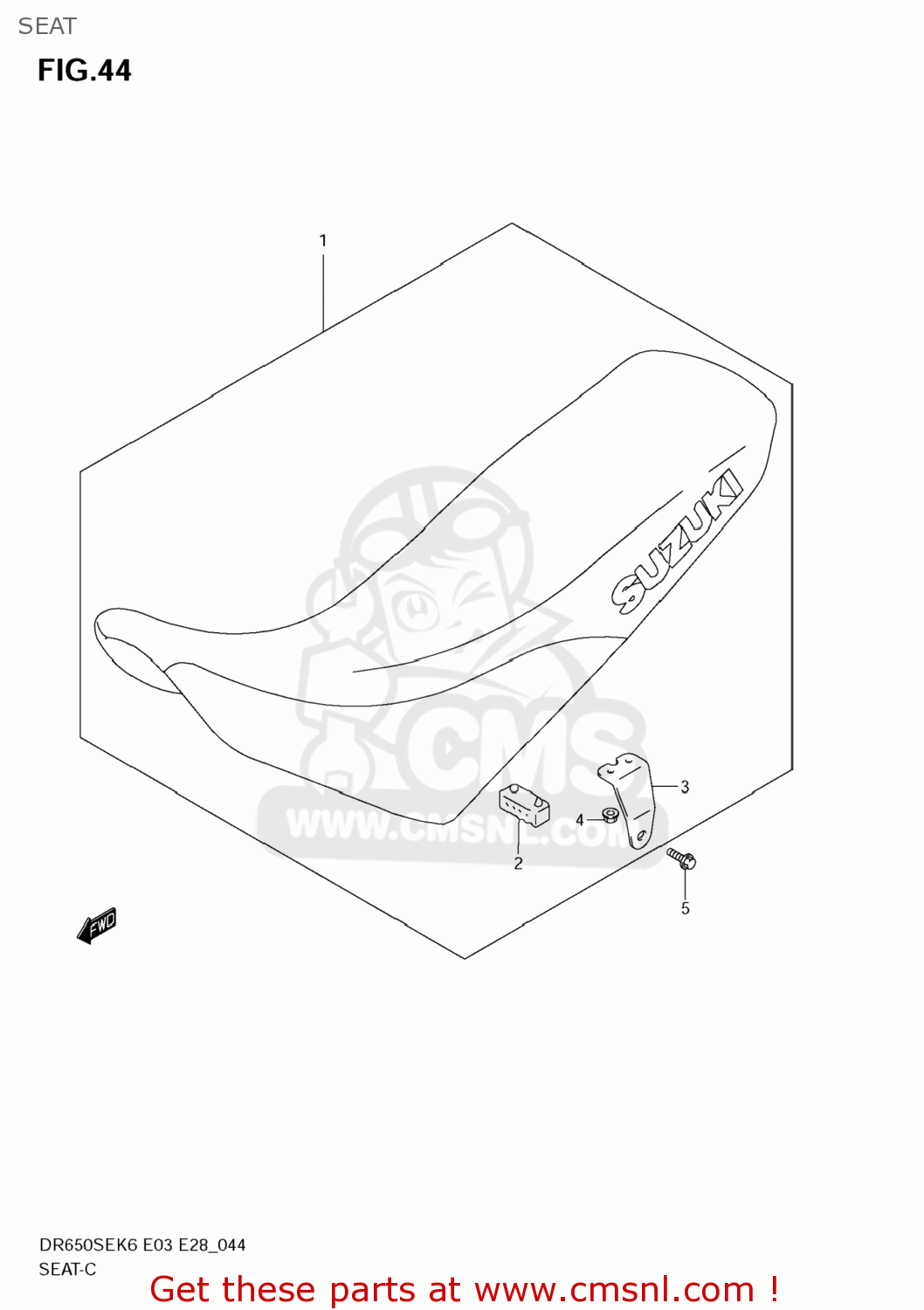

Seat diagram DR650SE 2007 (K7) USA (E03)
SEAT DR650SE 2007 (K7) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510032E40BDL
ref: 1-1
SEAT ASSY
€ 309.00
1-2
4510032E40CEP
ref: 1-2
SEAT SET
€ 0.00
1-3
4510032E40DUY
ref: 1-3
SEAT ASSY
€ 298.50
1-4
4510032E40BYD
ref: 1-4
SEAT ASSY
€ 279.00
1-4
4510032E40BYD
ref: 1-4
SEAT ASSY
€ 279.00
1-5
4510032E40DUZ
ref: 1-5
SEAT ASSY
€ 279.00
2
4514931300
ref: 2
CUSHION,SEAT(40X20X15)
€ 2.00
3
4511732E10
ref: 3
BRACKET
€ 13.00
4
083161006A
ref: 4
NUT
€ 2.50
5
015500812B
ref: 5
BOLT
€ 3.50
