HEADLAMP HOUSING (MODEL K9)

DR650SE 2007 (K7) USA (E03)

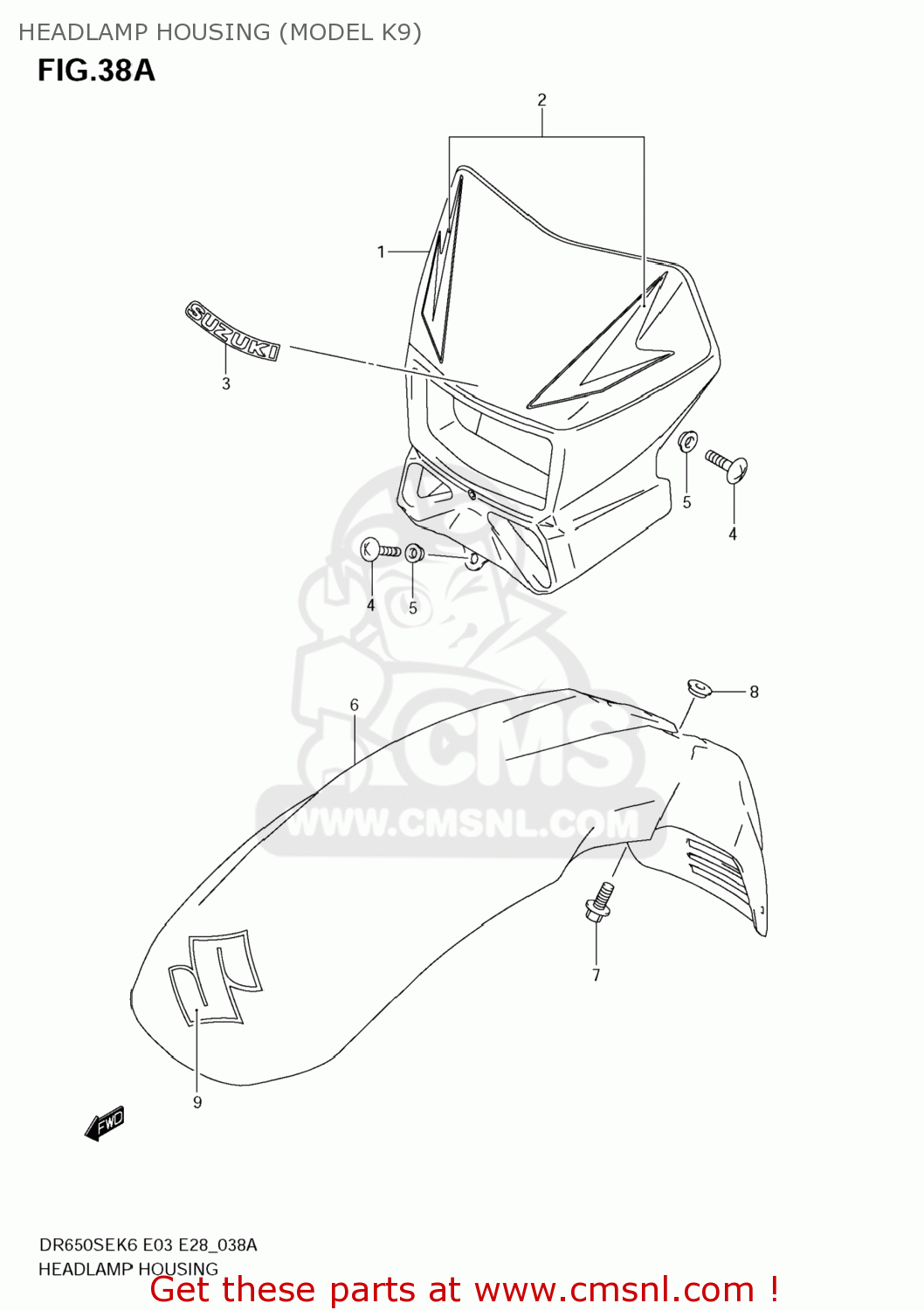

Headlamp housing (model k9) diagram DR650SE 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5181129F50019
ref: 1-1

COVER,HEADLAMP

€ 54.50

1-2

5181129F5030H
ref: 1-2

COVER,HEADLAMP

€ 61.50

2-1

6872032E00GJF
ref: 2-1

TAPE SET,HEADLAMP HOUSING

€ 20.50

2-2

6872032E00GJE
ref: 2-2

TAPE SET,HEADLAMP HOUSING

€ 20.50

6828101H00YD8
ref: 3

EMBLEM,SUZUKI

€ 7.50

021420612A
ref: 4

SCREW

€ 2.00

0916906071
ref: 5

WASHER

€ 2.50

6-1

5311113E00019
ref: 6-1

FENDER,FR

€ 70.50

6-2

5311113E0030H
ref: 6-2

FENDER,FR

€ 43.00

0911606170
ref: 7

BOLT(6X16)

€ 3.00

0916906073
ref: 8

WASHER

€ 4.00

6815107G10YD8
ref: 9

EMBLEM,S

€ 10.50

HEADLAMP HOUSING (MODEL K9)

all assemblies
