CYLINDER
DR650SE 2007 (K7) USA (E03)

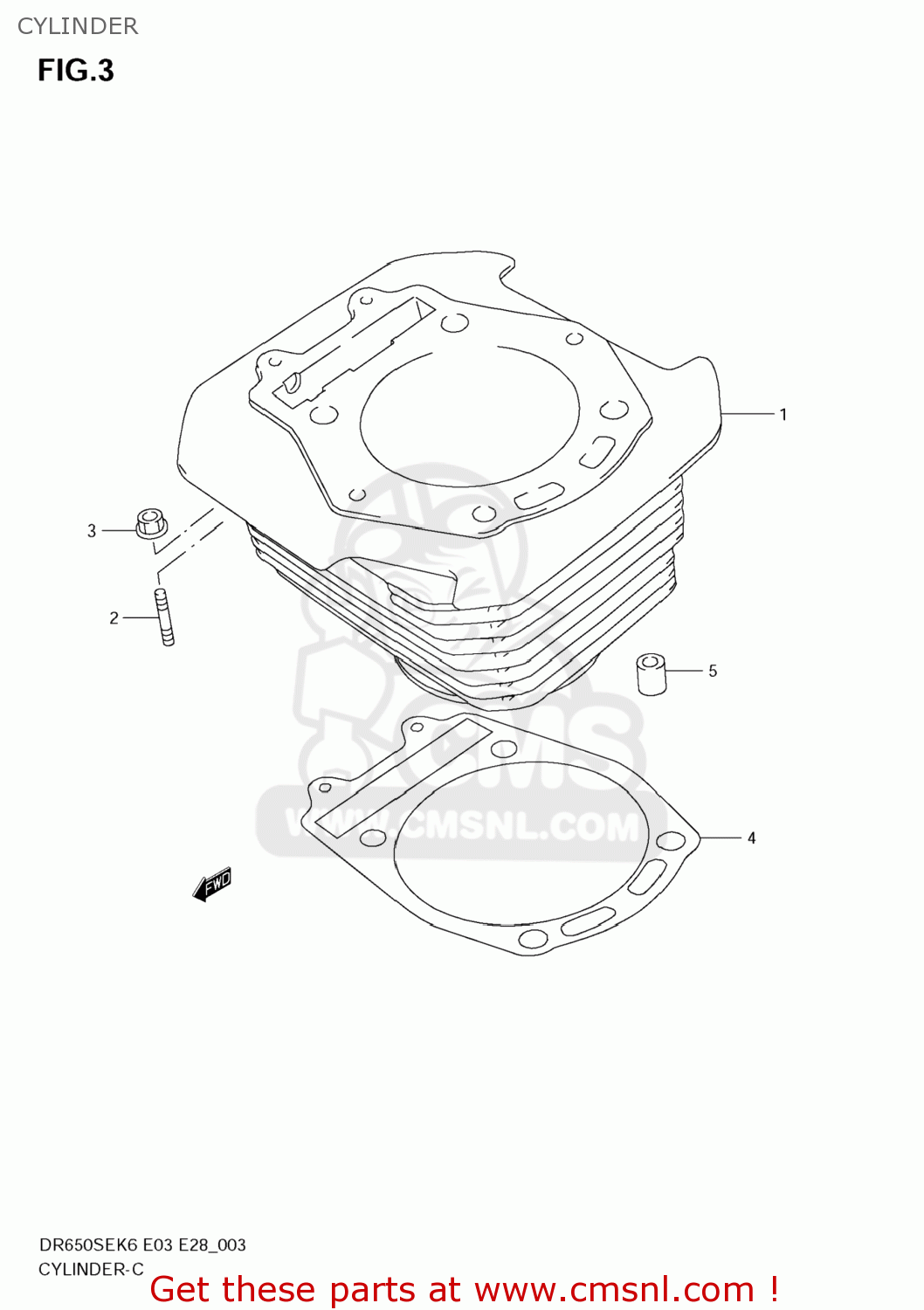

Cylinder diagram DR650SE 2007 (K7) USA (E03)
CYLINDER DR650SE 2007 (K7) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1121132E100F0
ref: 1
CYLINDER
€ 523.50
2
014210620B
ref: 2
BOLT,STUD
€ 2.00
3
083161006B
ref: 3
NUT
€ 2.50
4
1124104F20
ref: 4
GASKET,CYLINDER (NAS)
€ 17.00
5
0421113189
ref: 5
PIN
€ 2.50
