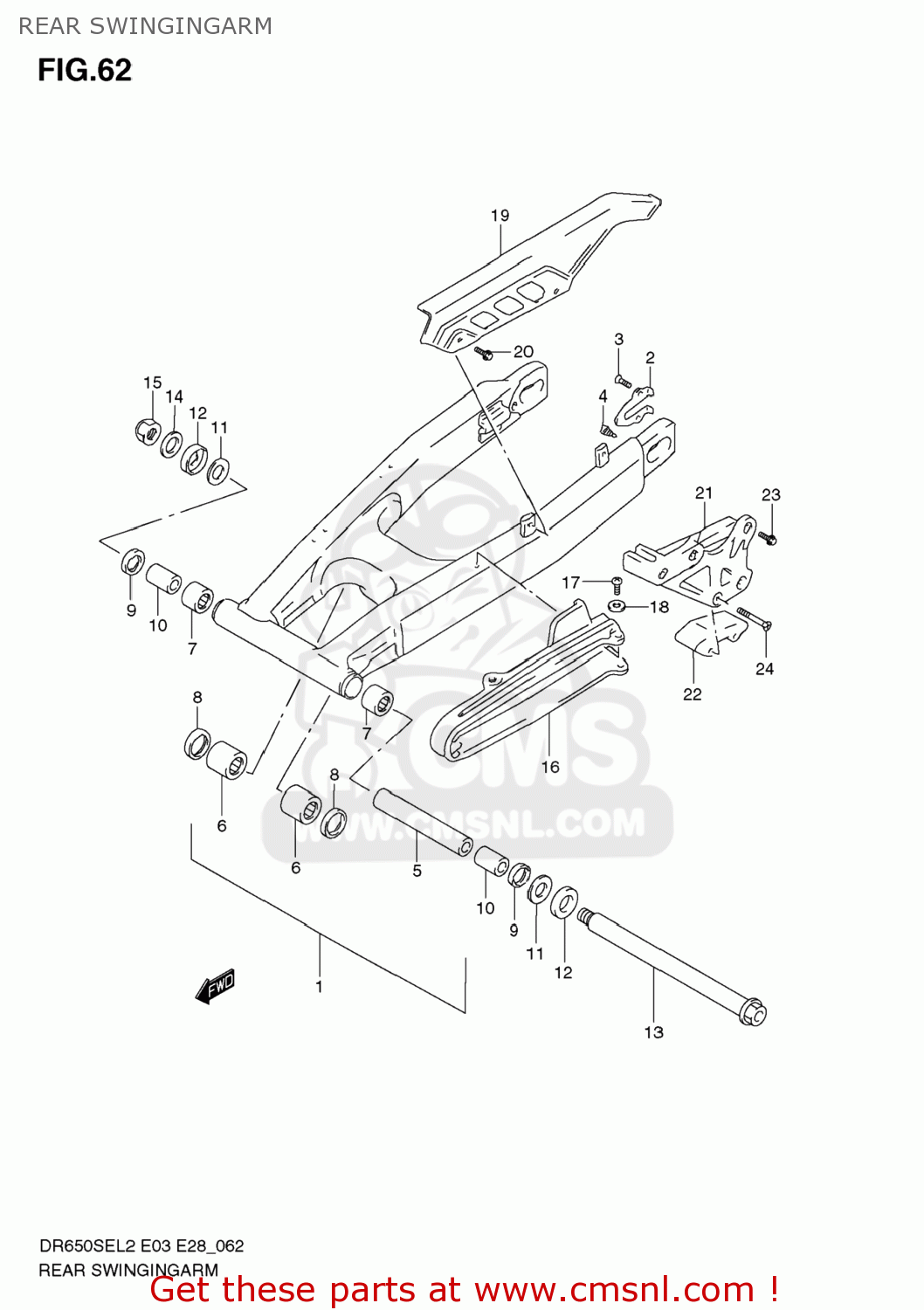

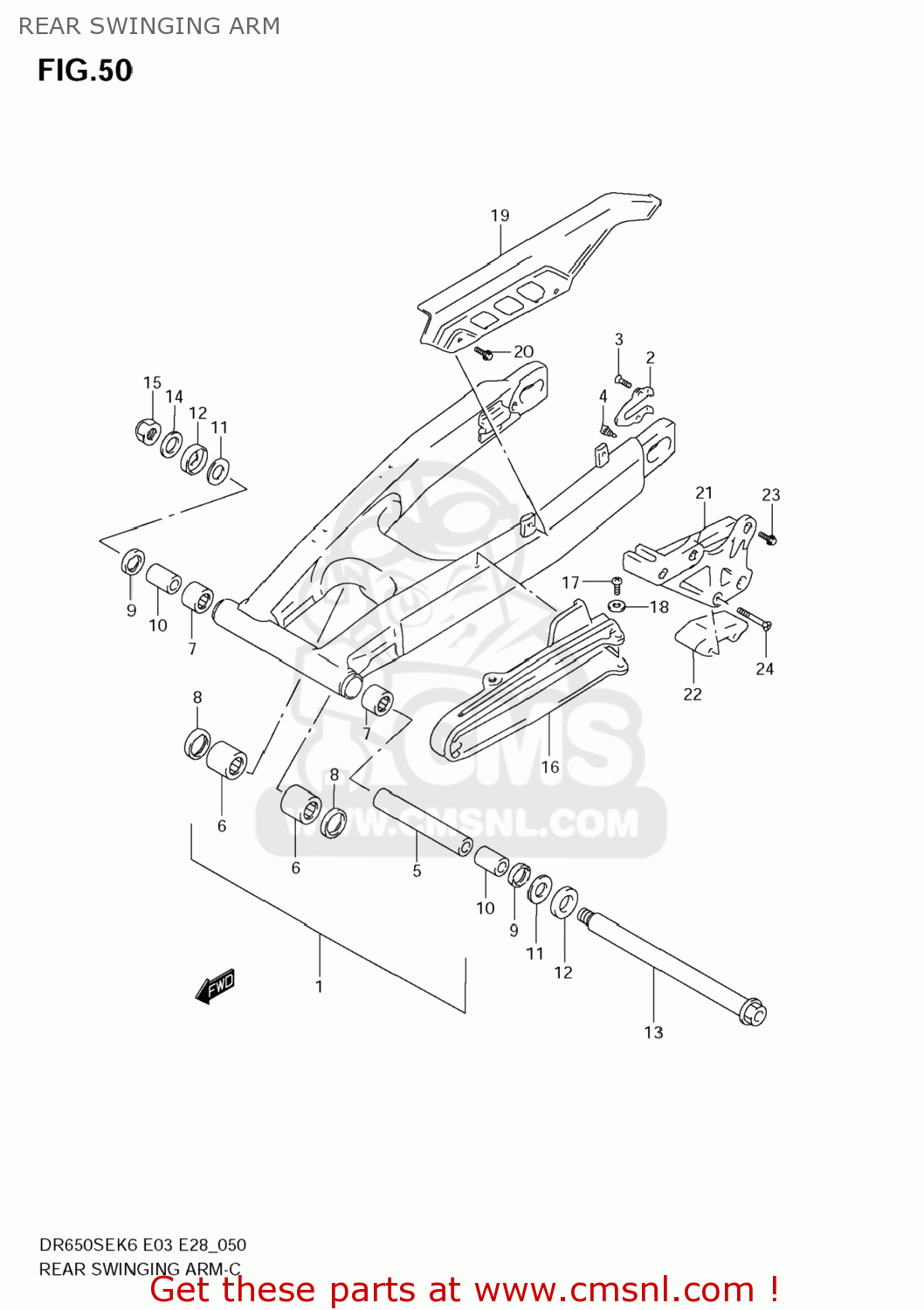

REAR SWINGING ARM

ref

part #

description

quantity

1

6100032E00
ref: 1

SWING ARM ASSEMBLY,REAR

€ 1,048.00

2

6112829E00
ref: 2

PLATE,RR SWING ARM AXLE

€ 8.50

3

0912605009
ref: 3

SCREW(5X8)

€ 2.50

4

6143113E00
ref: 4

STOPPER,CHAIN ADJUSTER

€ 7.00

5

6128232E00
ref: 5

SPACER,SWGARM PIVOT CTR

€ 11.00

6

0926320071
ref: 6

BEARING(20X27X23.5)

€ 21.50

7

0926322017
ref: 7

BEARING(22X29X30)

€ 18.50

8

0928320031
ref: 8

SEAL,OIL(20X27X5)

€ 5.00

9

0928522001
ref: 9

SEAL,OIL(22X29X4)

€ 5.00

10

6125114D00
ref: 10

SPACER,SWGARM PIVOT BRG

€ 11.00

11

0821117341
ref: 11

WASHER

€ 2.00

12

6126228C10
ref: 12

COVER,SWINGINGARM PIVOT

€ 4.50

13

6471108D00
ref: 13

AXLE,RR

€ 74.00

14

083220116B
ref: 14

WASHER

€ 2.00

15

0915916007
ref: 15

NUT

€ 10.50

16

6127313E01
ref: 16

BUFFER,CHAIN TOUCH DEFENSE

€ 30.00

17

021420612B
ref: 17

SCREW

€ 2.00

18

0916906057
ref: 18

WASHER

€ 4.00

19

6131101A03
ref: 19

CASE,CHAIN

€ 33.50

20

0911606096
ref: 20

BOLT(6X10)

€ 2.00

21

6134015E00
ref: 21

GUIDE,CHAIN

€ 39.50

22

6134815E00
ref: 22

DEFENSE,CHAIN GUIDE

€ 14.50

23

015500616B
ref: 23

BOLT

€ 2.50

24

021220650B
ref: 24

SCREW

€ 3.50
