FRONT MASTER CYLINDER

DR650SE 2012 (L2) USA (E03)

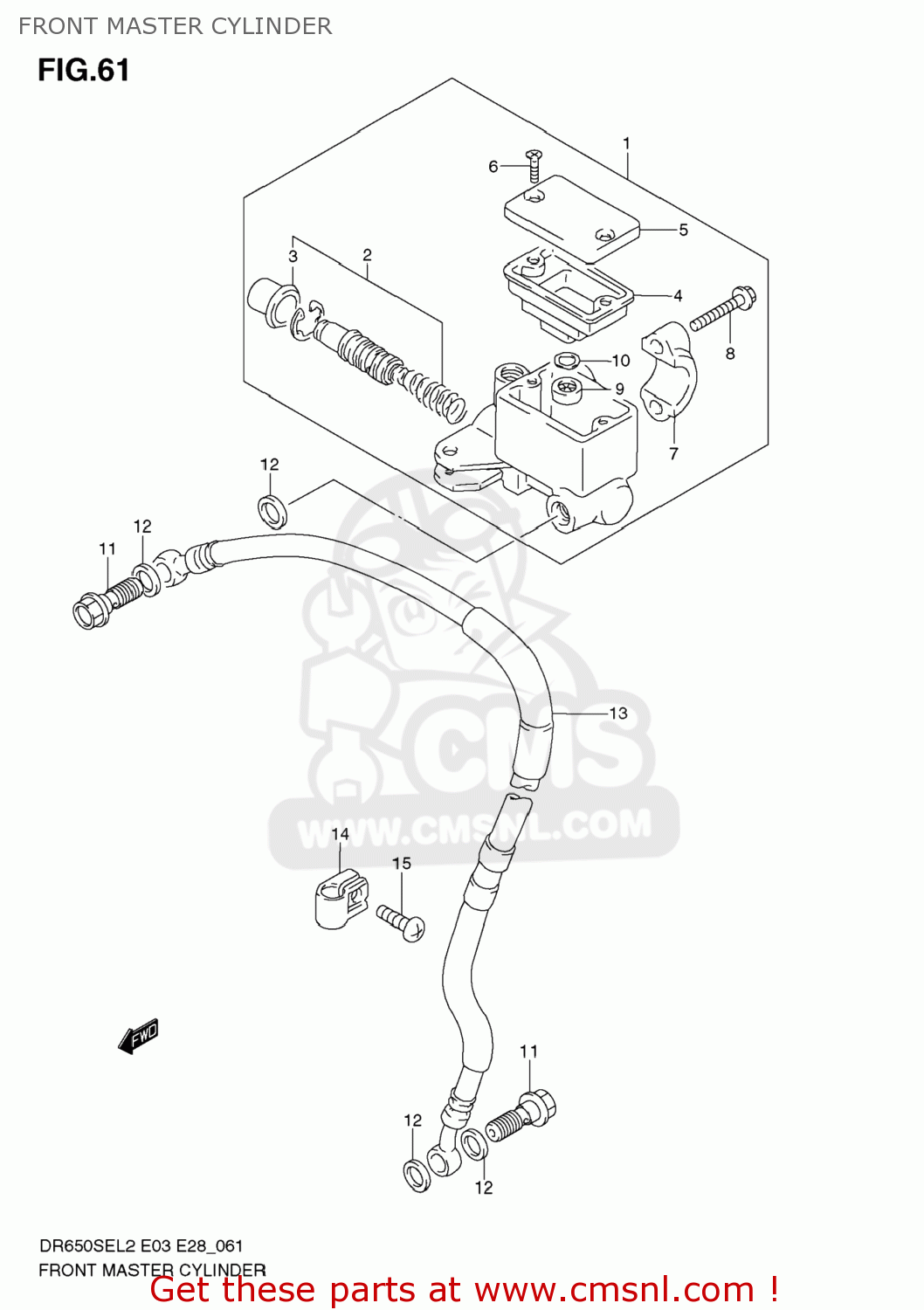

Front master cylinder diagram DR650SE 2012 (L2) USA (E03)

FRONT MASTER CYLINDER DR650SE 2012 (L2) USA (E03)

FRONT MASTER CYLINDER DR650SE 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5960031D01
ref: 1

CYLINDER ASSY,FR MASTER

€ 175.50

2

5960004810
ref: 2

PISTON/CUP SET

€ 37.50

3

5966644300
ref: 3

BOOT

€ 6.00

4

5966744B00
ref: 4

DIAPHRAGM

€ 8.00

5

6966924A01
ref: 5

CAP

€ 12.00

6

6968949300
ref: 6

SCREW

€ 1.50

7

5967136500
ref: 7

HOLDER

€ 10.00

8

5967502FA0
ref: 8

BOLT(6X22)

€ 3.00

9

5974815400
ref: 9

SEPERATOR

€ 7.50

10

5974915400
ref: 10

PLATE

€ 2.00

11

0936010062
ref: 11

BOLT UNION

€ 5.00

12

0916110009
ref: 12

WASHER(10X15X1.5)

€ 2.00

13

5948032E01
ref: 13

HOSE,FR BRAKE

€ 83.00

14

5862107A20
ref: 14

CLAMP,BRAKE HOSE

€ 3.50

15

021420620B
ref: 15

SCREW

€ 2.00

all assemblies
