OIL PUMP

DR650SE 2012 (L2) USA (E03)

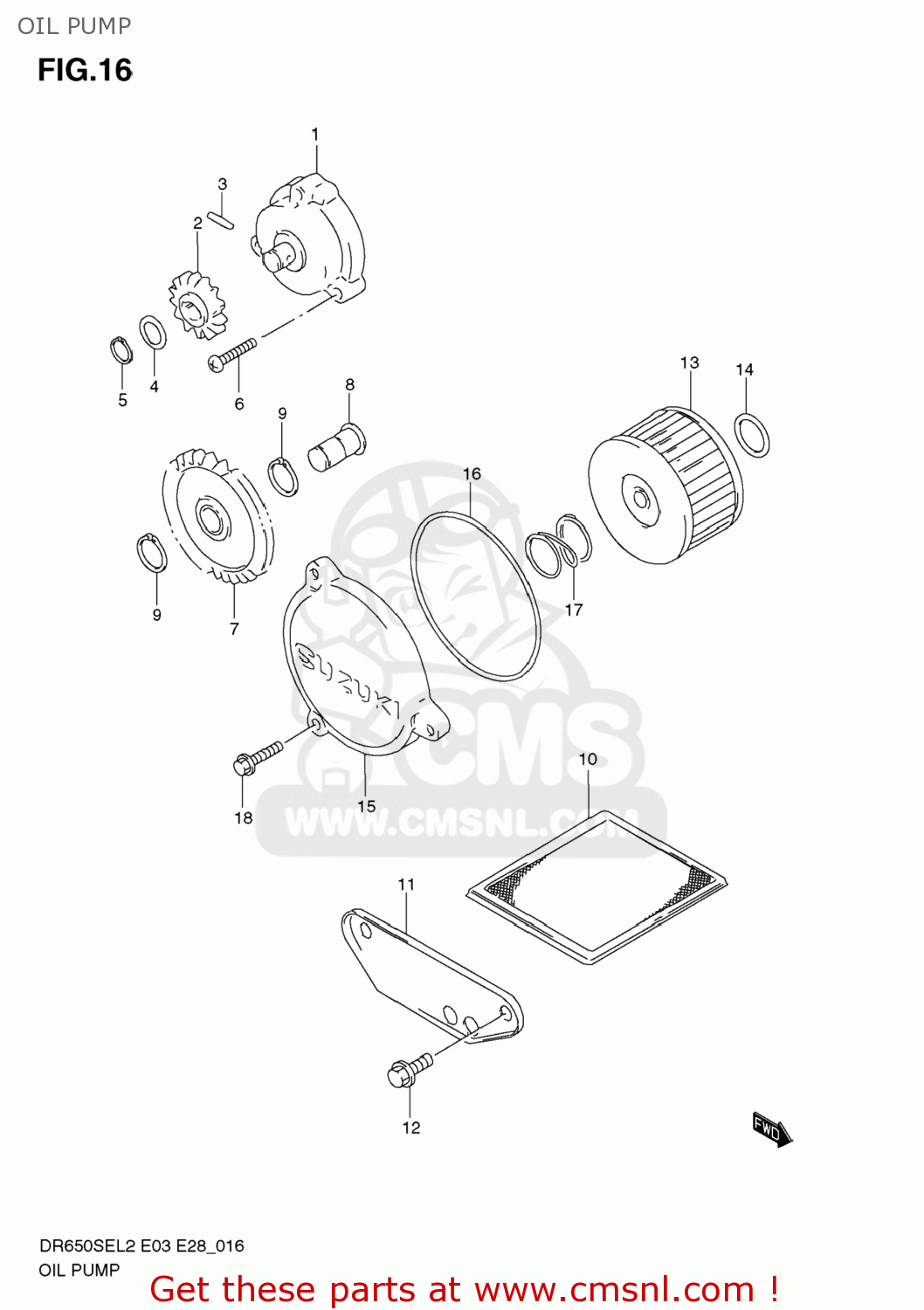

Oil pump diagram DR650SE 2012 (L2) USA (E03)

OIL PUMP DR650SE 2012 (L2) USA (E03)

OIL PUMP DR650SE 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1640032E00
ref: 1

PUMP ASSY,ENGINE OIL

€ 127.00

2

1633132E00
ref: 2

GEAR,ENG OIL PUMP DRIVEN

€ 22.00

3

0926104009
ref: 3

PIN(4X15.8)

€ 1.50

4

0918110186
ref: 4

SHIM(10X20X0.5)

€ 2.00

5

0833131109
ref: 5

CIRCLIP

€ 2.00

6

021120625B
ref: 6

SCREW

€ 1.50

7

1632132E00
ref: 7

GEAR,OIL PUMP DRIVE(NT:30)

€ 18.50

8

1632232E01
ref: 8

SHIFT,ENG OIL PUMP DRIVE GEAR

€ 8.50

9

083313112A
ref: 9

CIRCLIP

€ 2.00

10

1652032E00
ref: 10

STRAINER,ENGINE OIL

€ 11.50

11

1652332E00
ref: 11

CAP,OIL STRAINER

€ 7.50

12

0910306285
ref: 12

BOLT(6X12)

€ 2.50

13

1651037450
ref: 13

FILTER ASSY,ENGINE OIL

€ 7.50

14

0928015007
ref: 14

O RING(D:2.4,ID:15.8)

€ 2.00

15

1651214D00
ref: 15

CAP,OIL FILTER

€ 23.50

16

0928072001
ref: 16

O RING(D:2.4,ID:73)

€ 5.00

17

0944021006
ref: 17

SPRING

€ 2.50

18

0154706167
ref: 18

BOLT

€ 2.00
