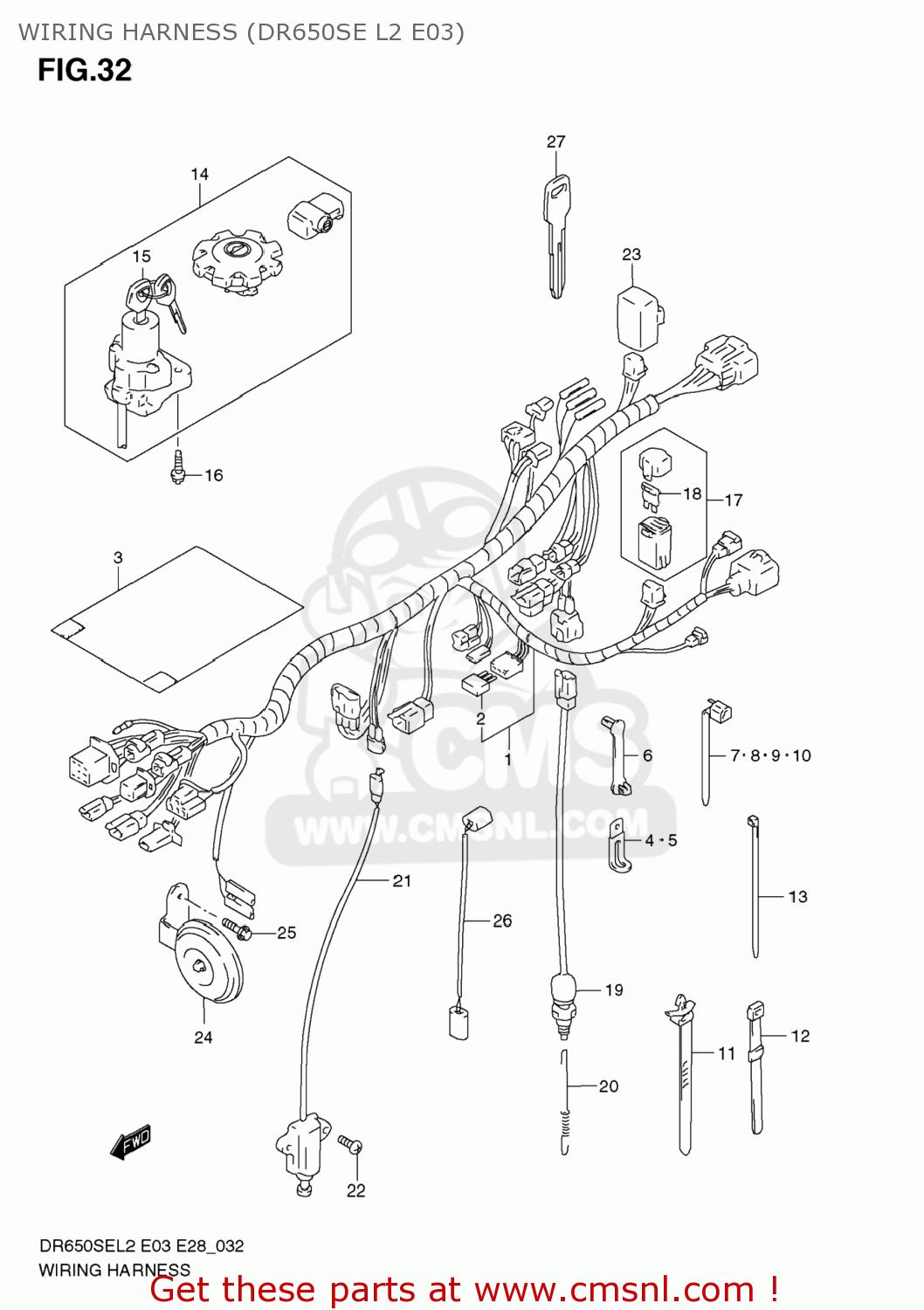

WIRING HARNESS (DR650SE L2 E03)

ref

part #

description

quantity

1

3661032E30
ref: 1

HARNESS,WIRING

€ 450.00

2

3661138A00
ref: 2

DIODE(STANLEY DE8804)

€ 13.00

3

3661815D20
ref: 3

COVER,WIRING HARNESS

€ 12.00

4

0940406429
ref: 4

CLAMP(L:45)

€ 2.50

5

0940408419
ref: 5

CLAMP(L:80)

€ 2.00

6

0940703401
ref: 6

CLAMP(L:33)

€ 3.50

7

0940711401
ref: 7

CLAMP(L:95)

€ 2.50

8

0940714403
ref: 8

CLAMP(L:125)

€ 2.50

9

0940718402
ref: 9

CLAMP(L:165)

€ 2.50

10

0940725401
ref: 10

CLAMP(L:235)

€ 4.00

11

0940711402
ref: 11

CLAMP(L:90)

€ 2.50

12

0940712402
ref: 12

CLAMP(L:120)

€ 3.00

13

0940710404
ref: 13

CLAMP(L:100)

€ 4.00

14

3700004811
ref: 14

LOCK SET

€ 247.00

15

3710004F00
ref: 15

LOCK ASSY,STEERING

€ 143.00

16

0913908016
ref: 16

BOLT(8X20)

€ 3.50

17

3674032E00
ref: 17

BOX ASSY,FUSE

€ 19.50

18

0948110101
ref: 18

FUSE(10A)

€ 2.50

19

3774032E00
ref: 19

SWITCH ASSY,STOP LAMP

€ 21.50

20

0944306016
ref: 20

SPRING

€ 2.50

21

3784044X50
ref: 21

SWITCH ASSY,SIDE STAND

€ 75.50

22

021120616B
ref: 22

SCREW

€ 2.00

23

3874024X50
ref: 23

RELAY ASSY

€ 37.50

24

3850032E00
ref: 24

HORN ASSY

€ 54.50

25

015500612B
ref: 25

BOLT

€ 2.50

26

3685132E00
ref: 26

WIRE,THROTTLE SENSOR

€ 6.50

27

3714633E00
ref: 27

KEY,BLANK

€ 13.00
