GASKET SET

DR650SE 2012 (L2) USA (E03)

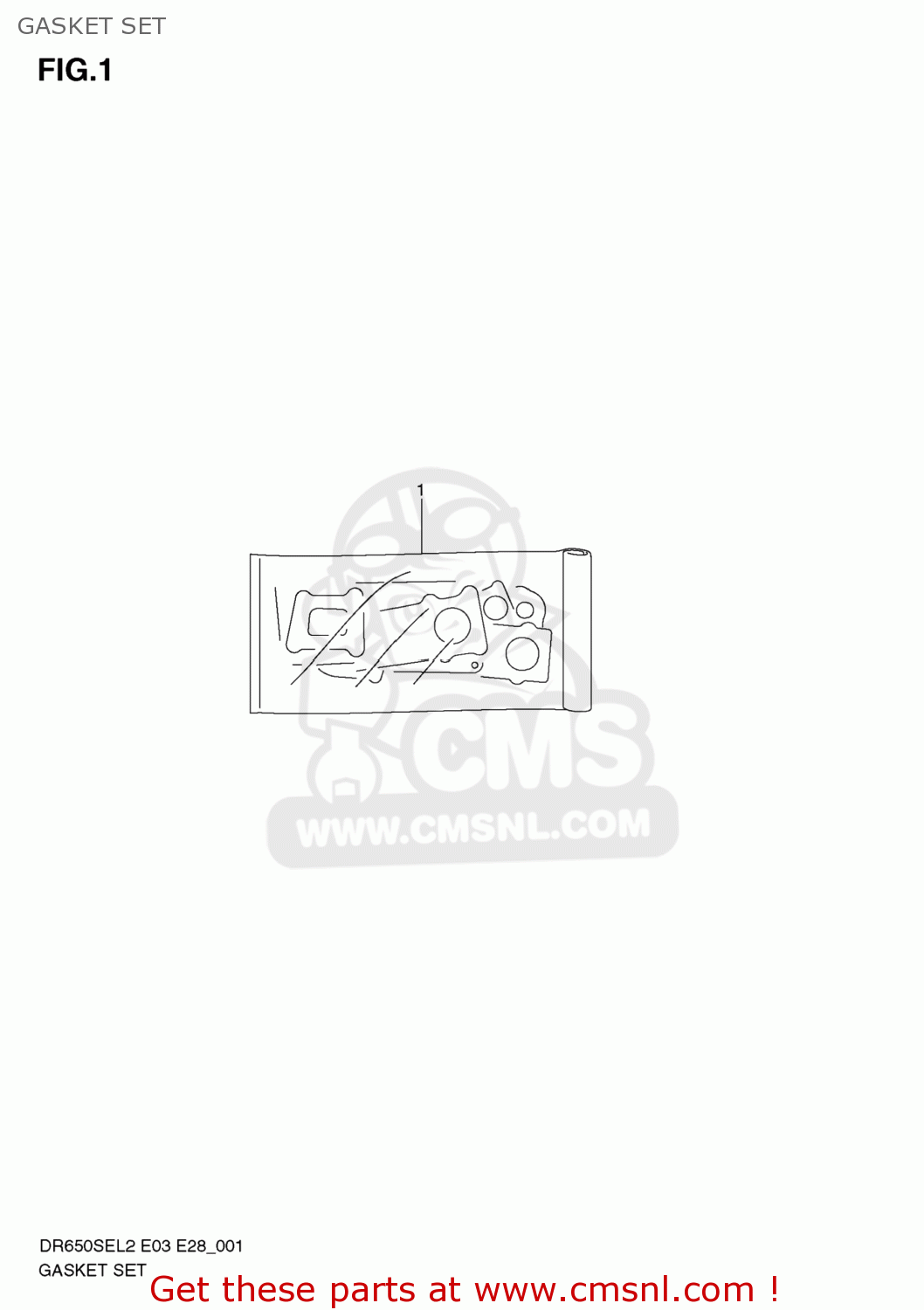

Gasket set diagram DR650SE 2012 (L2) USA (E03)

GASKET SET DR650SE 2012 (L2) USA (E03)

GASKET SET DR650SE 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1140032874
ref: 1

GASKET SET (NAS)

€ 85.50

2

1114132E00
ref: 2

GASKET,CYLINDER HEAD

€ 31.00

3

1117744B01
ref: 3

O RING,INSPECTION CAP

€ 6.00

4

1124104F20
ref: 4

GASKET,CYLINDER (NAS)

€ 17.00

5

1148232E00
ref: 5

GASKET,CLUTCH COVER

€ 17.00

6

1148332E00
ref: 6

GASKET,MAGNETO COVER

€ 14.00

7

1148512D01
ref: 7

GASKET,GEAR SHIFT COVER (NAS)

€ 4.50

8

1283724A10
ref: 8

GASKET,TENSIONER ADJUSTER (NAS)

€ 3.50

9

1418122D01
ref: 9

GASKET,EXHAUST PIPE (NAS)

€ 9.00

10

0928015007
ref: 10

O RING(D:2.4,ID:15.8)

€ 2.00

11

0928017003
ref: 11

O RING(D:3.1,ID:16.8)

€ 2.00

12

0928046002
ref: 12

O RING(D:2.4,ID:45.7)

€ 9.50

13

0928072001
ref: 13

O RING(D:2.4,ID:73)

€ 5.00
