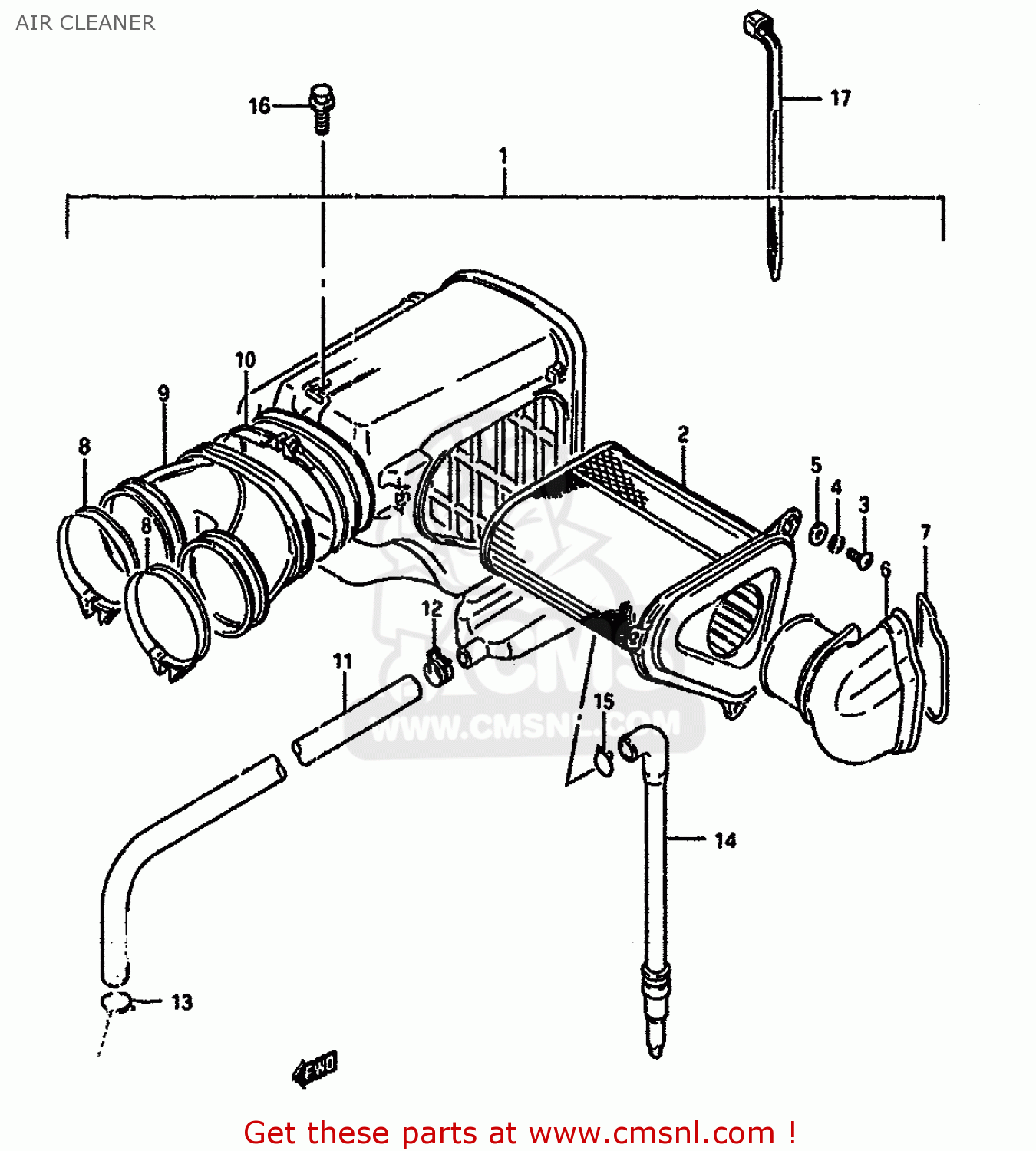

AIR CLEANER

ref

part #

description

quantity

1-1

1370044B00
ref: 1-1
MODEL J

CLEANER ASSY,A

€ 409.00

1-2

1370044B01
ref: 1-2
MODEL K

CLEANER ASSY,AIR

€ 409.00

2

1378044B00
ref: 2

FILTER ASSY

€ 42.00

3

0211205128
ref: 3

SCREW

€ 2.50

4

0832121057
ref: 4

LOCK WASHER

€ 2.00

5

0832221057
ref: 5

WASHER

€ 2.50

6-1

1389144B00
ref: 6-1
MODEL J

TUBE,INLET

€ 26.00

6-2

1389144B01
ref: 6-2
MODEL K

TUBE,INLET

€ 26.00

7

1389444B00
ref: 7

RING

€ 5.50

8

0940266208
ref: 8

CLAMP

€ 6.50

9

1388144B00
ref: 9

TUBE,AIR CLEANER OUTLET

€ 37.00

10

1382644B00
ref: 10

CLAMP

€ 7.50

11

1385100650
ref: 11

TUBE,BREATHER

€ 30.00

12

1382443400
ref: 12

CLIP

€ 2.00

13

0940114301
ref: 13

CLIP

€ 2.00

14

1387021217
ref: 14

TUBE,DRAIN

€ 16.50

15

1382400A00
ref: 15

CLIP

€ 2.50

16

0151706167
ref: 16

BOLT 6X16

€ 1.50

17

0940718402
ref: 17

CLAMP(L:165)

€ 2.50

all assemblies
