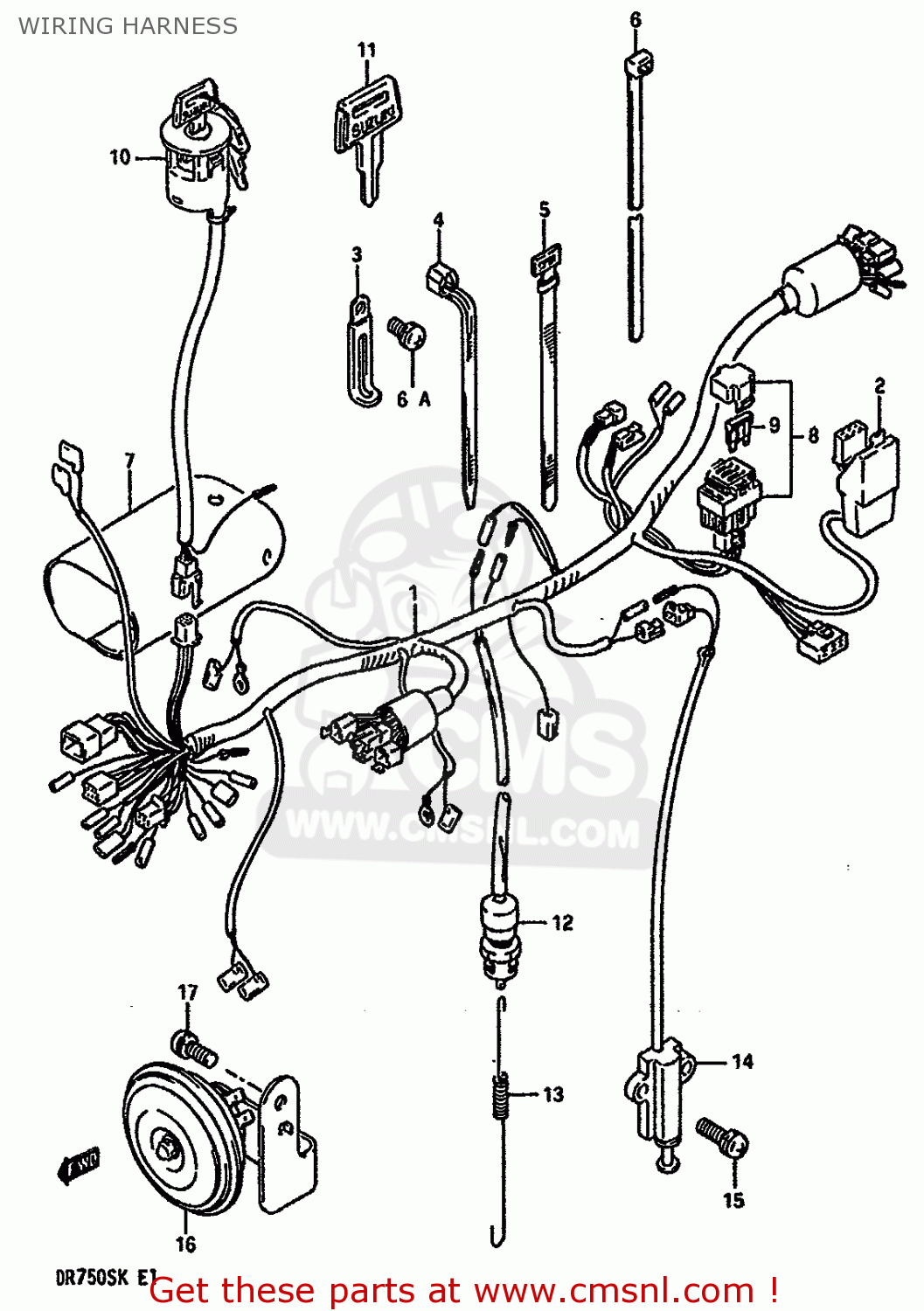

WIRING HARNESS

ref

part #

description

quantity

1-1

3661044B00
ref: 1-1
MODEL J

HARNESS,WIRING

€ 180.00

1-2

3661044B10
ref: 1-2
MODEL K

HARNESS,WIRING

€ 175.00

2

3298044B00
ref: 2

COVER,DECOMPRESSION CONTROL UNIT

€ 5.50

3-1

0940408201
ref: 3-1
MODEL J

CLAMP

€ 3.00

3-2

0940408201
ref: 3-2
MODEL K

CLAMP

€ 3.00

3-3

0940408402
ref: 3-3
MODEL K

CLAMP

€ 3.50

3-4

0940406401
ref: 3-4
MODEL K

CLAMP L:35

€ 2.50

3-5

0940406415
ref: 3-5
MODEL K

CLAMP

€ 3.00

3-6

0940406419
ref: 3-6
MODEL J

CLAMP

€ 2.50

4

0940714401
ref: 4
MODEL J

CLAMP

€ 3.00

5-1

0940714403
ref: 5-1
MODEL J

CLAMP(L:125)

€ 2.50

5-2

0940714403
ref: 5-2
MODEL K

CLAMP(L:125)

€ 2.50

5-3

0940718402
ref: 5-3
MODEL J

CLAMP(L:165)

€ 2.50

5-4

0940718402
ref: 5-4
MODEL K

CLAMP(L:165)

€ 2.50

5-5

0940725401
ref: 5-5
MODEL J

CLAMP(L:235)

€ 4.00

5-6

0940725401
ref: 5-6
MODEL K

CLAMP(L:235)

€ 4.00

6

0940730401
ref: 6

CLAMP(L:300)

€ 4.50

6A

0211236105
ref: 6A
MODEL K

SCREW

€ 1.50

7

3661844B10
ref: 7
MODEL J

COVER,WIRING HARNESS

€ 10.00

8

3674004701
ref: 8

BOX ASSY,FUSE

€ 16.00

9

0948115101
ref: 9

FUSE(15A)

€ 1.50

10

3711044B00
ref: 10

SWITCH ASSY,IGNITION

€ 72.00

11

3714649300
ref: 11
OPT

KEY,BLANK

€ 13.00

12

3774014A00
ref: 12

SWITCH ASSEMBLY,STOP LAMP

€ 22.00

13-1

0944306076
ref: 13-1
L:161,MODEL J

SPRING

€ 6.00

13-2

0944306012
ref: 13-2
L:70,MODEL K

SPRING

€ 3.00

14

3784044A10
ref: 14

SWITCH ASSEMBLY,SIDE STAND

€ 75.50

15

0211236205
ref: 15

SCREW

€ 2.00

16-1

3850044B00
ref: 16-1
MODEL J

HORN ASSY

€ 48.00

16-2

3850044B10
ref: 16-2
MODEL K

HORN ASSEMBLY

€ 48.00

17

0211236125
ref: 17

SCREW

€ 2.00

all assemblies
