MAGNETO

DR750SU 1989 (K) GERMANY (E22)

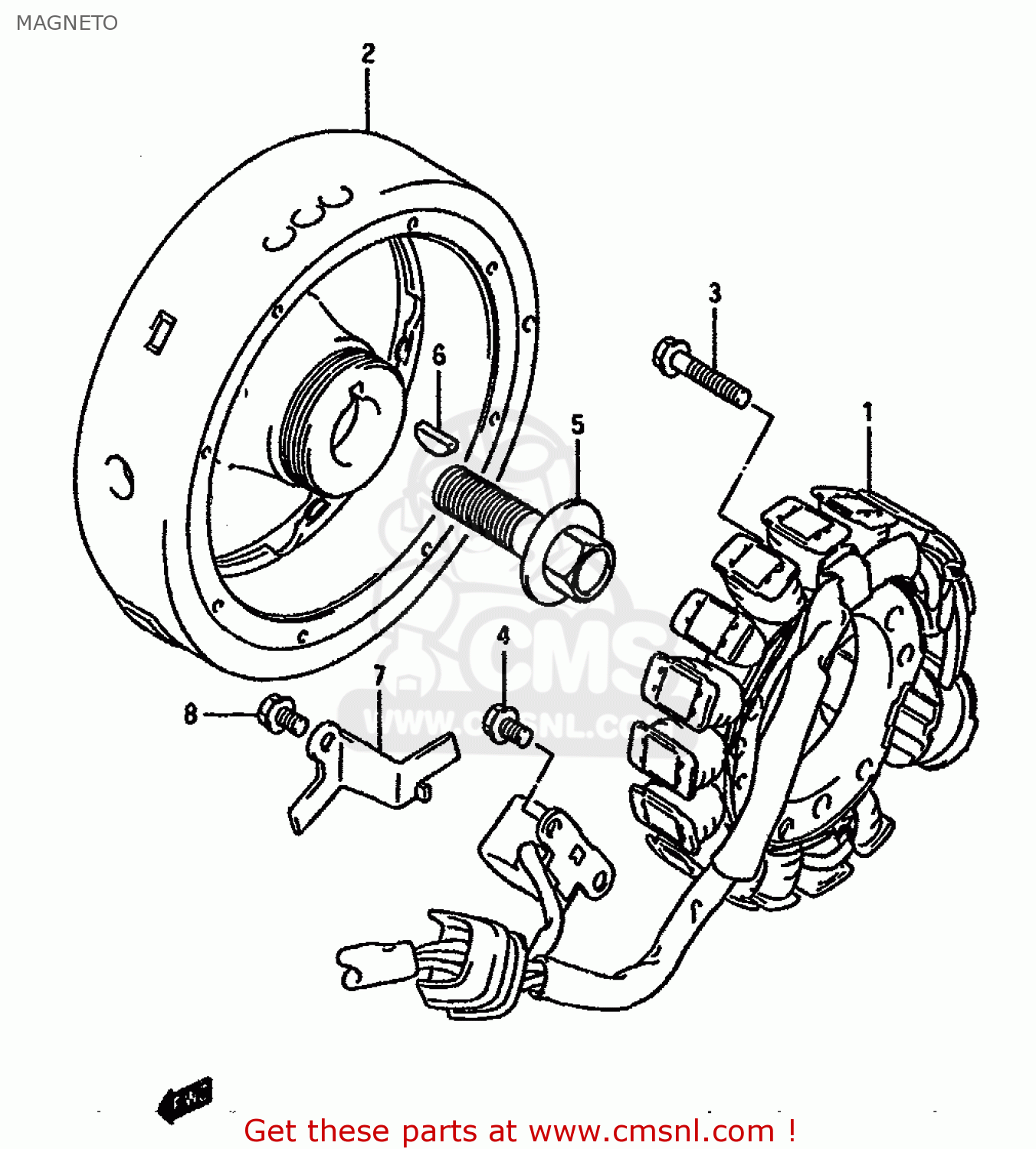

Magneto diagram DR750SU 1989 (K) GERMANY (E22)

MAGNETO DR750SU 1989 (K) GERMANY (E22)
MAGNETO DR750SU 1989 (K) GERMANY (E22)
MAGNETO DR750SU 1989 (K) GERMANY (E22)
prices are in EUR
ref
part #
description
quantity
1
3210144B00
ref: 1
STATOR ASSY
€ 713.00
2
3210244B00
ref: 2
ROTOR
3210244B00
€ 902.00
3
0154706257
ref: 3
BOLT
0154706257
€ 2.50
4
0154705107
ref: 4
BOLT
€ 1.50
5
0910314001
ref: 5
BOLT(14X43)
0910314001
€ 7.00
6
0942005007
ref: 6
KEY
0942005007
€ 3.00
7
3237144B00
ref: 7
CLAMP,MAGNETO LEAD WIRE
€ 3.00
8
0154705107
ref: 8
BOLT
€ 1.50
