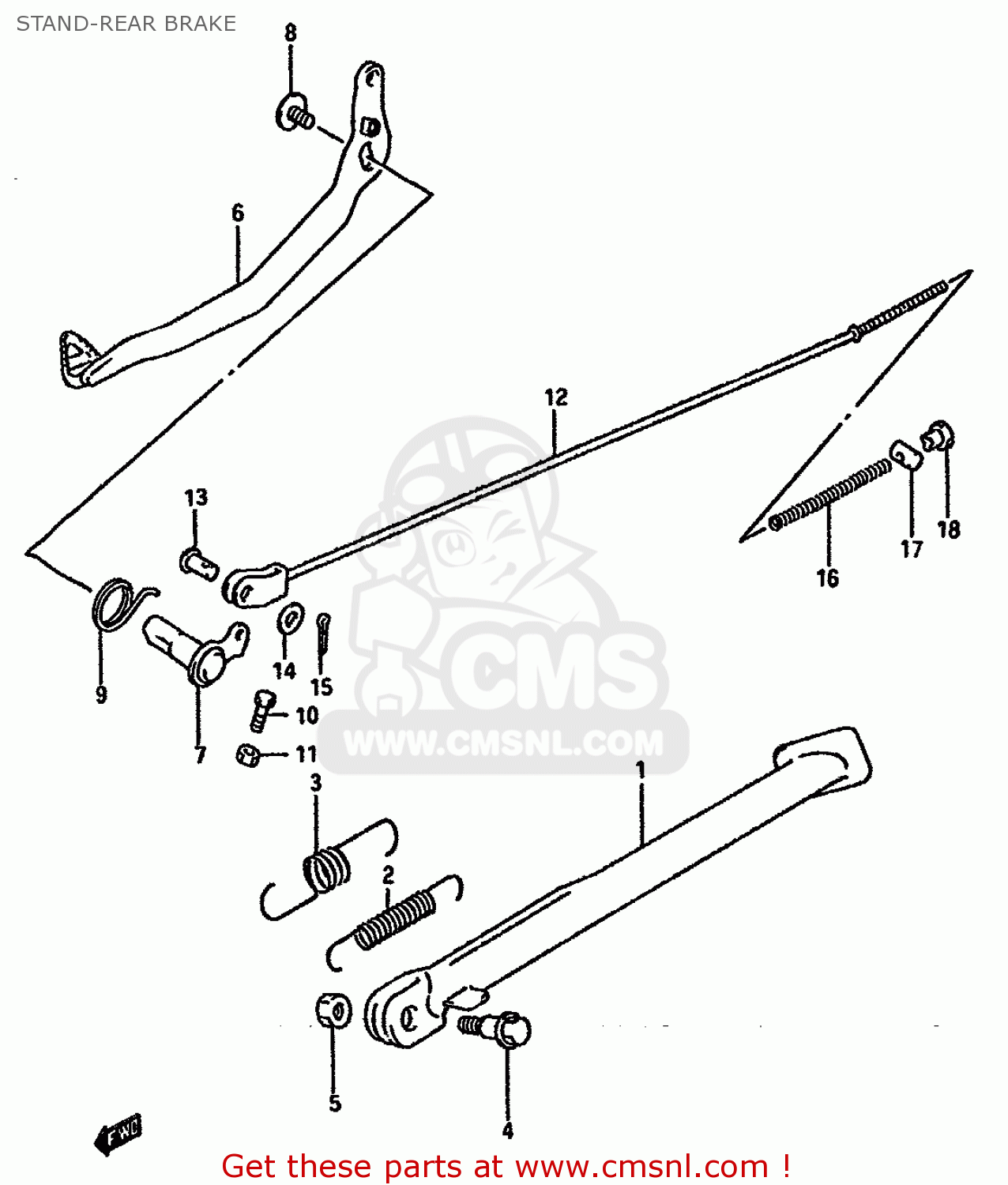

STAND-REAR BRAKE

ref

part #

description

quantity

1-1

4231044B0037F
ref: 1-1
MODEL J

STAND,PROP (ORANGE)

€ 97.50

1-2

4231044B0034S
ref: 1-2
MODEL J

STAND,PROP (BLUE)

€ 97.50

1-3

4231044B01019
ref: 1-3
MODEL K

STAND,PROP (BLACK)

€ 97.50

2

0944315041
ref: 2

SPRING

€ 18.50

3

0944322010
ref: 3

SPRING

€ 7.00

4

0911110048
ref: 4

BOLT(10X33.5)

€ 4.00

5

0831022107
ref: 5

NUT

€ 2.50

6-1

4311044B00
ref: 6-1
MODEL J

PEDAL,BRAKE

€ 29.50

6-2

4311044B10
ref: 6-2
MODEL K

PEDAL,BRAKE

€ 39.00

7

4312044B00
ref: 7

ARM,BRAKE PEDAL ROD

€ 18.00

8

0910608050
ref: 8

BOLT 8X14

€ 7.00

9

0944825005
ref: 9

SPRING

€ 3.50

10

0910006009
ref: 10

BOLT(6X23)

€ 1.50

11

0831011067
ref: 11

NUT 6MM

€ 2.50

12

4330044B00
ref: 12
MODEL J

ROD ASSY,REAR BRAKE

€ 18.50

13

0920008055
ref: 13
MODEL J

PIN

€ 4.00

14

0832211088
ref: 14
MODEL J

WASHER

€ 2.00

15

0411120208
ref: 15
MODEL J

PIN 20X20

€ 1.50

16

0944009004
ref: 16
MODEL J

SPRING

€ 2.00

17

0920911002
ref: 17
MODEL J

PIN(11X18)

€ 2.00

18

0915006009
ref: 18
MODEL J

NUT (6MM)

€ 3.50
