AIR CLEANER

DR800S 1993 (P) (E01 E04 E17 E18 E21 E22 E25 E34 E53)

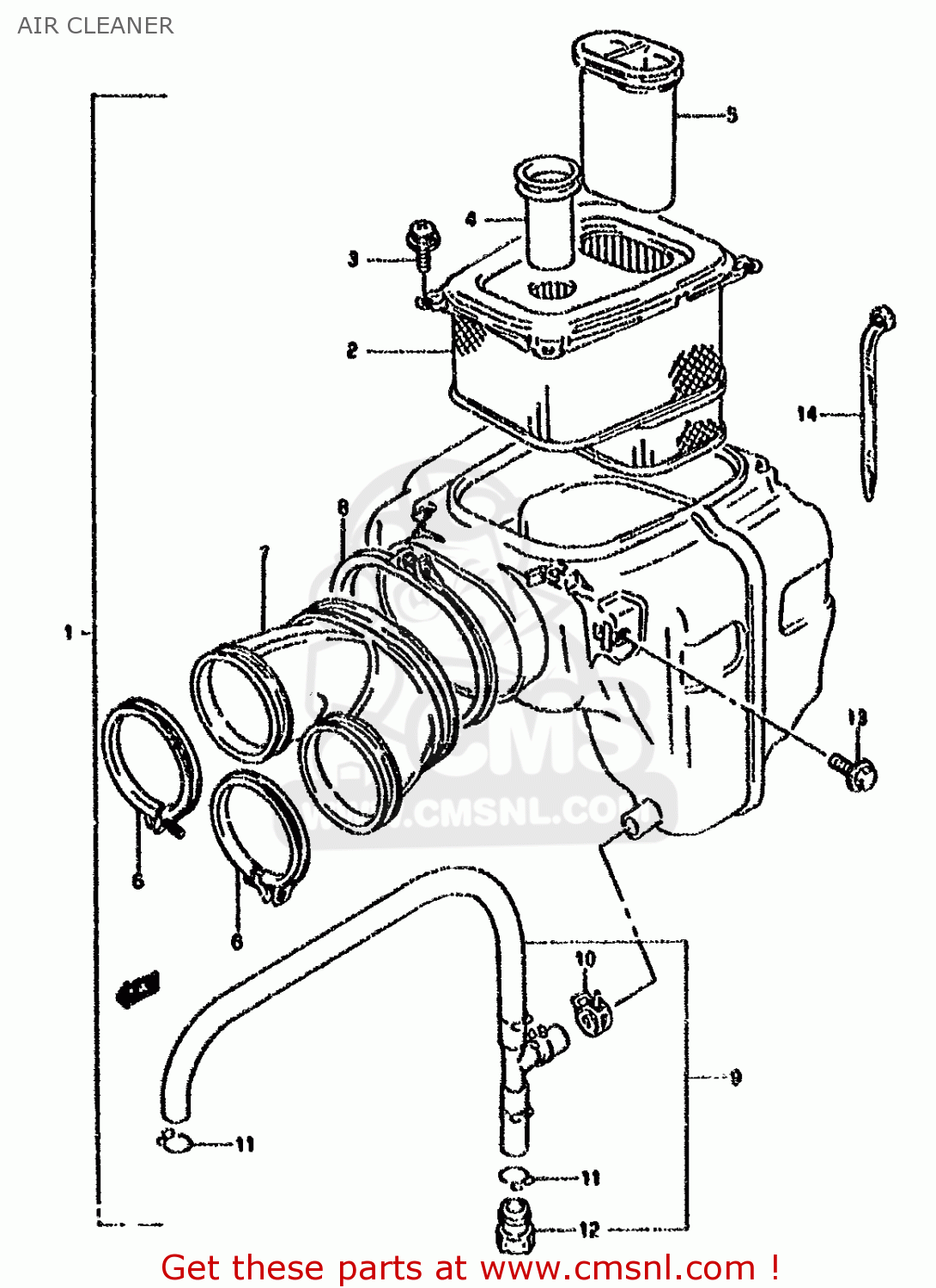

Air cleaner diagram DR800S 1993 (P) (E01 E04 E17 E18 E21 E22 E25 E34 E53)

prices are in EUR

ref

part #

description

quantity

1370031D00
ref: 1

CLEANER ASSY,AIR

€ 279.00

1378031D00
ref: 2

FILTER ASSY

€ 44.50

0211275127
ref: 3

SCREW

€ 2.50

1389231D00
ref: 4

TUBE,INLET NO.2

€ 12.00

1389131D00
ref: 5

TUBE,INLET NO.1

€ 23.50

0940266208
ref: 6

CLAMP

€ 6.50

1388144B00
ref: 7

TUBE,AIR CLEANER OUTLET

€ 37.00

1382644B00
ref: 8

CLAMP

€ 7.50

1385031D00
ref: 9

TUBE, BREATHER

€ 27.00

0940114402
ref: 10

CLIP

€ 2.00

0940114301
ref: 11

CLIP

€ 2.00

1387700190
ref: 12

PLUG

€ 3.50

13-1

0911606003
ref: 13-1
MODEL M/N/P

BOLT

€ 2.00

13-2

0911606024
ref: 13-2
MODEL R/S/T

BOLT(6X16)

€ 2.00

14-1

0940718402
ref: 14-1
MODEL M/N/P/R/S

CLAMP(L:165)

€ 2.50

14-2

0940718403
ref: 14-2
MODEL T

CLAMP L:165

€ 2.50

14-3

0940725401
ref: 14-3

CLAMP(L:235)

€ 4.00
