MAGNETO

DR800S 1993 (P) (E01 E04 E17 E18 E21 E22 E25 E34 E53)

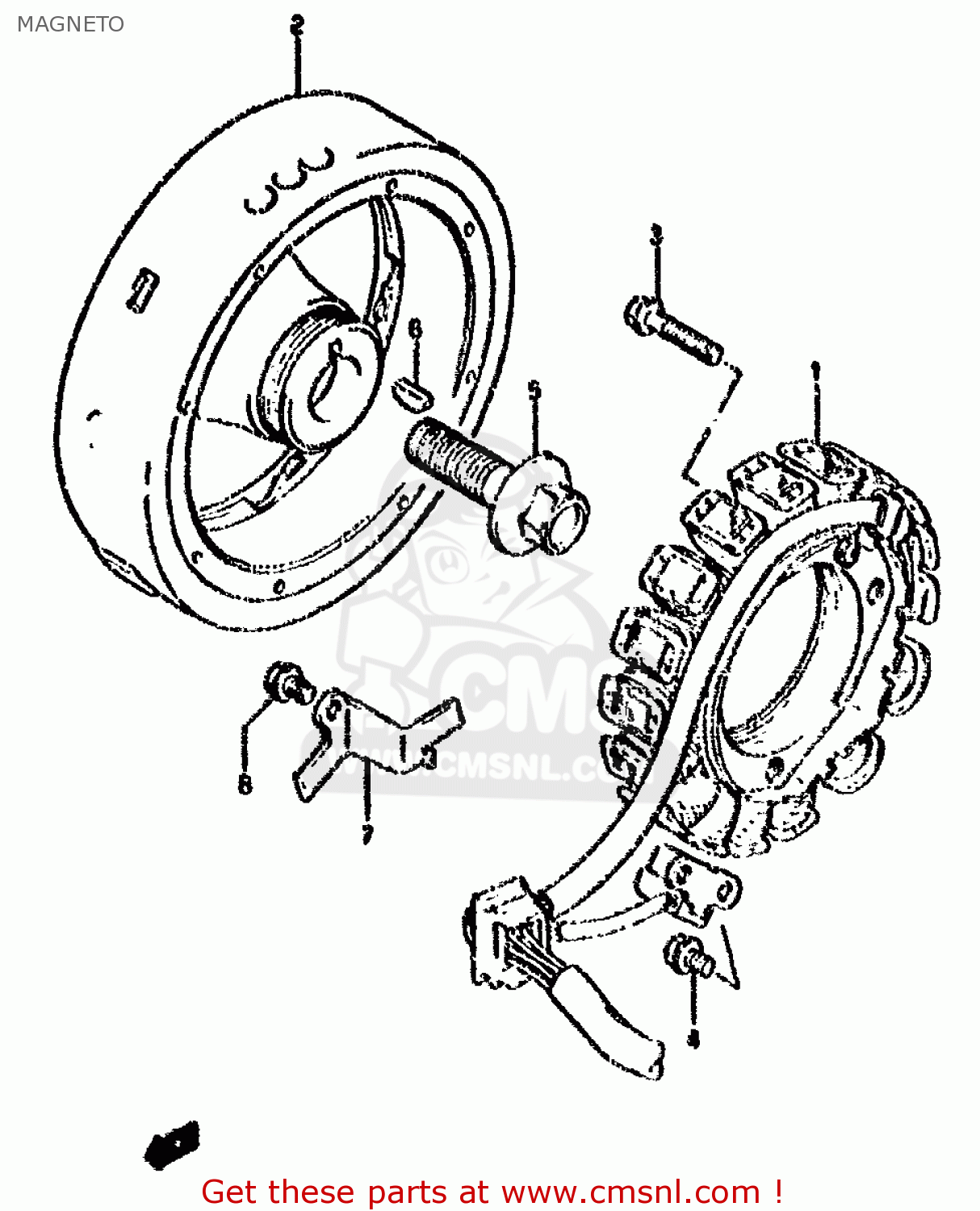

Magneto diagram DR800S 1993 (P) (E01 E04 E17 E18 E21 E22 E25 E34 E53)

MAGNETO DR800S 1993 (P) (E01 E04 E17 E18 E21 E22 E25 E34 E53)

MAGNETO DR800S 1993 (P) (E01 E04 E17 E18 E21 E22 E25 E34 E53)

prices are in EUR

ref

part #

description

quantity

1

3210131D00
ref: 1

STARTER ASSY

€ 805.50

2

3210231D00
ref: 2

ROTOR

€ 805.00

3-1

0154706307
ref: 3-1
MODEL M/N/P/R

BOLT

€ 2.50

3-2

0713006303
ref: 3-2
MODEL S/T

BOLT

€ 3.00

4-1

0154705107
ref: 4-1
MODEL M/N/P

BOLT

€ 1.50

4-2

0154705103
ref: 4-2
MODEL R/S/T

BOLT

€ 2.50

5

0910314001
ref: 5

BOLT(14X43)

€ 7.00

6

0942005007
ref: 6

KEY

€ 3.00

7

3237144B00
ref: 7

CLAMP,MAGNETO LEAD WIRE

€ 3.00

8-1

0154705107
ref: 8-1
MODEL M/N/P

BOLT

€ 1.50

8-2

0154705103
ref: 8-2
MODEL R/S/T

BOLT

€ 2.50
