CYLINDER HEAD

DR800S 1993 (P) (E01 E04 E17 E18 E21 E22 E25 E34 E53)

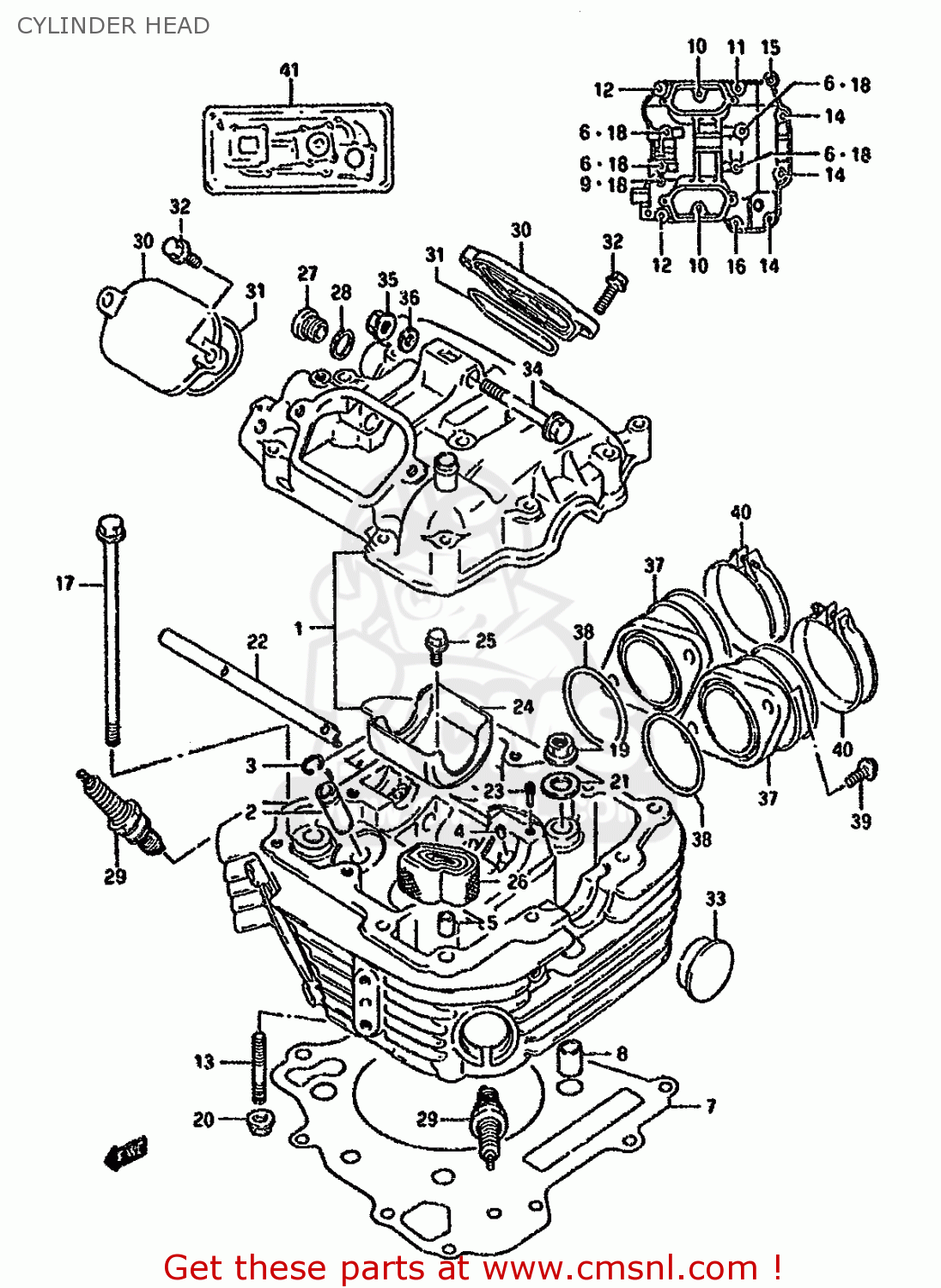

Cylinder head diagram DR800S 1993 (P) (E01 E04 E17 E18 E21 E22 E25 E34 E53)

CYLINDER HEAD DR800S 1993 (P) (E01 E04 E17 E18 E21 E22 E25 E34 E53)
CYLINDER HEAD DR800S 1993 (P) (E01 E04 E17 E18 E21 E22 E25 E34 E53)
CYLINDER HEAD DR800S 1993 (P) (E01 E04 E17 E18 E21 E22 E25 E34 E53)
prices are in EUR
ref
part #
description
quantity
1-1
1110031D00
ref: 1-1
HEAD ASSY, CYLINDER
1110031D00
€ 775.00
1-2
1110031D10
ref: 1-2
E18,E39
HEAD ASSY,CYLINDER
€ 763.50
2
1111544B70
ref: 2
GUIDE,VALVE
1111544B70
€ 19.00
3
0938110003
ref: 3
RING,SNAP
0938110003
€ 2.50
4
1118043410
ref: 4
JET,OIL GALLERY
1118043410
€ 10.50
5
0920608001
ref: 5
PIN(6.2X8X11)
0920608001
€ 2.00
6
0910306102
ref: 6
BOLT(6X55)
0910306102
€ 2.50
7
1114144B01
ref: 7
GASKET,CYLINDER HEAD (NAS)
1114144B01
€ 54.00
8
0421113189
ref: 8
-09206-13001
PIN
0421113189
€ 2.50
9-1
0155006167
ref: 9-1
MODEL M/N/P
BOLT
0155006167
€ 1.50
9-2
0155006163
ref: 9-2
MODEL R/S/T
BOLT
0155006163
€ 2.50
10-1
0155006257
ref: 10-1
MODEL M/N/P
BOLT
0155006257
€ 2.50
10-2
0155006253
ref: 10-2
MODEL R/S/T
BOLT
0155006253
€ 2.50
11-1
0155006307
ref: 11-1
MODEL M/N/P
BOLT
0155006307
€ 2.00
11-2
0155006303
ref: 11-2
MODEL R/S/T
BOLT
0155006303
€ 2.50
12-1
0155006357
ref: 12-1
MODEL M/N/P
BOLT
0155006357
€ 2.50
12-2
0155006353
ref: 12-2
MODEL R/S/T
BOLT
0155006353
€ 2.50
13
0910808206
ref: 13
BOLT,STUD(8X31)
0910808206
€ 3.50
14
0910306033
ref: 14
BOLT(6X125)
0910306033
€ 3.50
15
0910306052
ref: 15
BOLT(6X115)
0910306052
€ 5.00
16
0910306067
ref: 16
BOLT(6X105)
0910306067
€ 3.50
17
0910308224
ref: 17
BOLT(8X155)
0910308224
€ 10.00
18
0916806023
ref: 18
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
19-1
0831610107
ref: 19-1
MODEL M/N/P
NUT
0831610107
€ 2.00
19-2
0831610103
ref: 19-2
MODEL R/S/T
NUT
0831610103
€ 2.00
20-1
0831610087
ref: 20-1
MODEL M/N/P
NUT
0831610087
€ 2.50
20-2
0831610083
ref: 20-2
MODEL R/S/T
NUT
0831610083
€ 3.00
21-1
0916010039
ref: 21-1
MODEL M/N/P/R/S
WASHER(10.5X22X2.3)
0916010039
€ 2.50
21-2
0916010060
ref: 21-2
MODEL T
WASHER (10.5X22X2.3)
0916010060
€ 2.50
22
1113131D00
ref: 22
PIPE,CYLINDER HEAD OIL
1113131D00
€ 17.60
23
0913406012
ref: 23
SCREW (L:19.5)
0913406012
€ 3.00
24
1113544B00
ref: 24
PLATE, OIL CHAMBER
€ 8.50
25-1
0155006107
ref: 25-1
MODEL M/N/P
BOLT
0155006107
€ 2.50
25-2
0155006103
ref: 25-2
MODEL R/S/T
BOLT
0155006103
€ 2.50
26
1118644B01
ref: 26
SEPERATOR,OIL
1118644B01
€ 8.50
27
0924814005
ref: 27
PLUG,14X12
0924814005
€ 5.00
28
0916814002
ref: 28
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
29-1
0948200330
ref: 29-1
PLUG,SPARK(DPR9EA-9)
0948200330
€ 4.00
29-2
0948200334
ref: 29-2
OPT
PLUG,SPARK(DPR8EA-9)
€ 4.00
30
1117544B00
ref: 30
CAP,INSPECTION
1117544B00
€ 14.50
31
1117744B00
ref: 31
O-RING,INSPECTION CAP
1117744B00
€ 6.00
32-1
0155006207
ref: 32-1
MODEL M/N/P
BOLT
0155006207
€ 2.50
32-2
0155006203
ref: 32-2
MODEL R/S/T
BOLT
0155006203
€ 2.50
33
0924130004
ref: 33
PLUG(OD:30)
0924130004
€ 6.50
34-1
0910308267
ref: 34-1
MODEL M/N/P
BOLT,ENGINE MOUNTING (L:55)
€ 3.50
34-2
0910308332
ref: 34-2
MODEL R/S/T
BOLT(8X53)
0910308332
€ 3.50
35
0831931085
ref: 35
NUT
€ 2.50
36
0832101083
ref: 36
LOCK WASHER
0832101083
€ 2.50
37
1311044B00
ref: 37
PIPECOMP,INT
€ 36.50
38
0928040010
ref: 38
O RING(D:2.4,ID:39.7)
0928040010
€ 3.50
39
0211216203
ref: 39
SCREW
0211216203
€ 2.50
40
0940252208
ref: 40
CLAMP
0940252208
€ 5.50
41-1
1140144832
ref: 41-1
MODEL M/N/P/R/S
GASKET SET
€ 129.50
41-2
1140131810
ref: 41-2
MODEL T
GASKET SET
€ 104.50
