CRANKCASE COVER

DR800S 1993 (P) (E01 E04 E17 E18 E21 E22 E25 E34 E53)

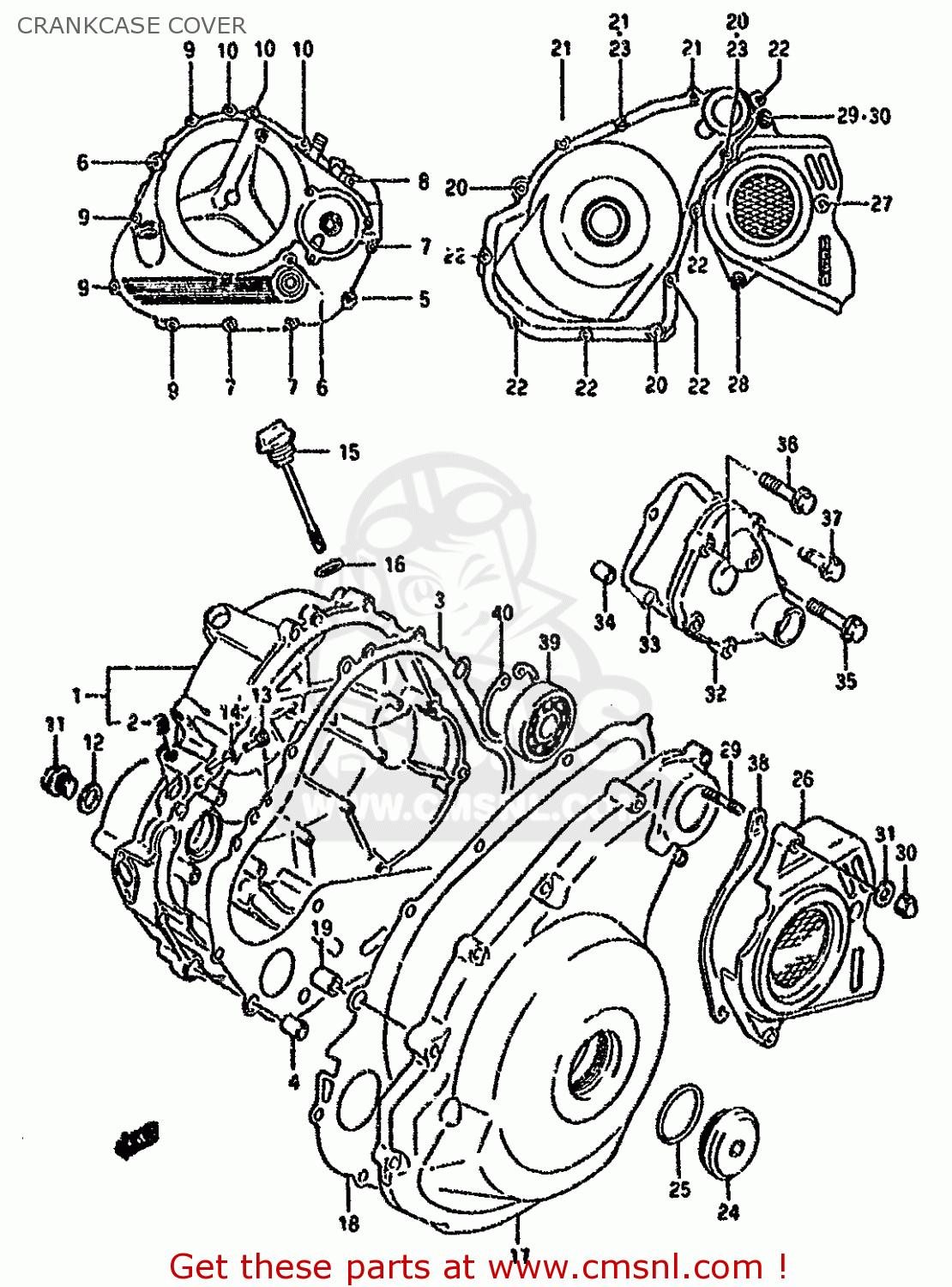

Crankcase cover diagram DR800S 1993 (P) (E01 E04 E17 E18 E21 E22 E25 E34 E53)

CRANKCASE COVER DR800S 1993 (P) (E01 E04 E17 E18 E21 E22 E25 E34 E53)
CRANKCASE COVER DR800S 1993 (P) (E01 E04 E17 E18 E21 E22 E25 E34 E53)
CRANKCASE COVER DR800S 1993 (P) (E01 E04 E17 E18 E21 E22 E25 E34 E53)
prices are in EUR
ref
part #
description
quantity
1
1134044B0220H
ref: 1
COVER,CLUTCH
1134044B0220H
€ 375.00
2-1
0924605001
ref: 2-1
MODEL M/N/P/R/S
PLUG
0924605001
€ 3.50
2-2
0924605006
ref: 2-2
MODEL T
PLUG(1/8PT,H:5.5)
€ 3.50
3
1148244B10
ref: 3
GASKET,CLUTCH COVER (NAS)
1148244B10
€ 48.50
4
0421113189
ref: 4
-09206-13001
PIN
0421113189
€ 2.50
5
0154706607
ref: 5
BOLT
0154706607
€ 2.50
6
0154706507
ref: 6
BOLT
0154706507
€ 2.50
7
0154706457
ref: 7
BOLT
0154706457
€ 2.50
8
0154706407
ref: 8
BOLT
0154706407
€ 2.50
9
0154706307
ref: 9
BOLT
0154706307
€ 2.50
10
0154706257
ref: 10
BOLT
0154706257
€ 2.50
11
0924714015
ref: 11
PLUG(14X12)
0924714015
€ 2.50
12
0916814002
ref: 12
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
13
0949336003
ref: 13
JET
€ 9.00
14
0928004004
ref: 14
O RING(D:1.2,ID:4)
0928004004
€ 2.00
15
1197044B30
ref: 15
GAUGE,OIL LEVEL
1197044B30
€ 19.50
16
0928017003
ref: 16
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
17
1135144B1120H
ref: 17
COVER, MAGNETO
€ 149.50
18
1148344B11
ref: 18
GASKET,MAGNETO COVER (NAS)
1148344B11
€ 68.50
19
0421113189
ref: 19
-09206-13001
PIN
0421113189
€ 2.50
20
0154706457
ref: 20
BOLT
0154706457
€ 2.50
21
0154706357
ref: 21
BOLT
0154706357
€ 2.50
22
0154706257
ref: 22
BOLT
0154706257
€ 2.50
23-1
0916806023
ref: 23-1
MODEL M/N/P
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
23-2
0916806024
ref: 23-2
MODEL R/S/T
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
24
092593601620H
ref: 24
PLUG(SILVER)
092593601620H
€ 10.50
25
0928033004
ref: 25
O RING(D:3.1,ID:32.7)
0928033004
€ 2.50
26
1136044B0020H
ref: 26
COVER,ENGINE SPROCKET
1136044B0020H
€ 51.50
27
0154706307
ref: 27
BOLT
0154706307
€ 2.50
28
0154706257
ref: 28
BOLT
0154706257
€ 2.50
29
0910806107
ref: 29
BOLT,STUD
€ 4.00
30
0831310067
ref: 30
NUT
0831310067
€ 2.00
31
0832201067
ref: 31
WASHER
0832201067
€ 2.00
32
1137144B0020H
ref: 32
COVER,GEAR SHIFT
1137144B0020H
€ 64.00
33
1148544B10
ref: 33
GASKET,GEAR SHIFT COVER (NAS)
1148544B10
€ 10.00
34
0421109129
ref: 34
PIN
0421109129
€ 2.00
35-1
0154706307
ref: 35-1
MODEL M/N/P
BOLT
0154706307
€ 2.50
35-2
0154706303
ref: 35-2
MODEL R/S/T
BOLT,G/S SWITC
0154706303
€ 3.00
36-1
0154706257
ref: 36-1
MODEL M/N/P
BOLT
0154706257
€ 2.50
36-2
0154706253
ref: 36-2
MODEL R/S/T
SCREW
0154706253
€ 2.50
37-1
0154706167
ref: 37-1
MODEL M/N/P
BOLT
0154706167
€ 2.00
37-2
0154706163
ref: 37-2
MODEL R/S/T
BOLT
0154706163
€ 2.50
38
2764144B01
ref: 38
PLATE,FR CHAIN GUIDE
2764144B01
€ 5.50
39
0926212001
ref: 39
-08110-60010
BEARING(12X28X8)
0926212001
€ 15.00
40
0833141286
ref: 40
CIRCLIP
0833141286
€ 3.50
