Buy Suzuki DR Parts Online


REAR CUSHION LEVER

DR800S 1993 (P) (E01 E04 E17 E18 E21 E22 E25 E34 E53)

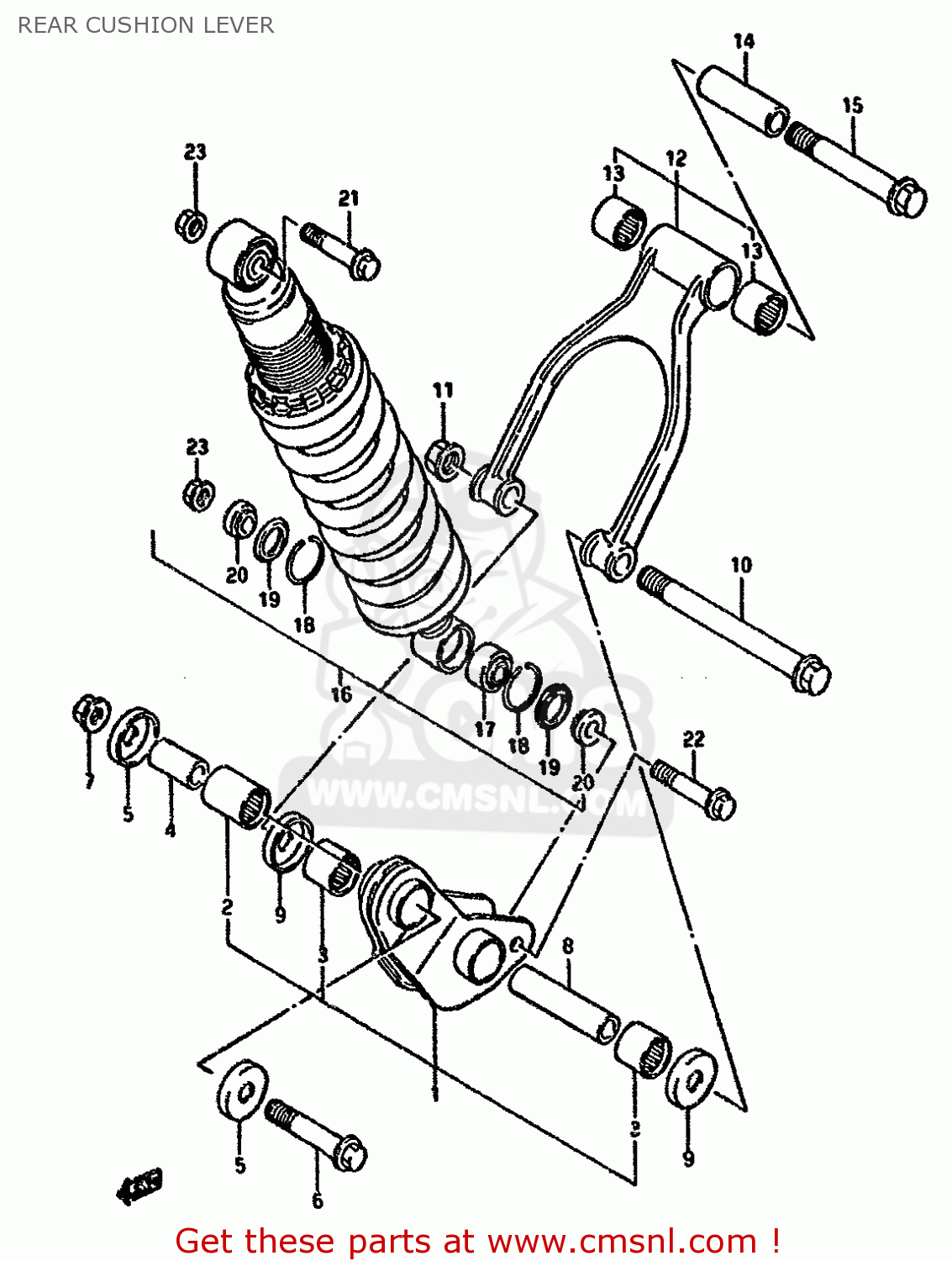

Rear cushion lever diagram DR800S 1993 (P) (E01 E04 E17 E18 E21 E22 E25 E34 E53)

REAR CUSHION LEVER DR800S 1993 (P) (E01 E04 E17 E18 E21 E22 E25 E34 E53)
REAR CUSHION LEVER DR800S 1993 (P) (E01 E04 E17 E18 E21 E22 E25 E34 E53)
REAR CUSHION LEVER DR800S 1993 (P) (E01 E04 E17 E18 E21 E22 E25 E34 E53)
prices are in EUR
ref
part #
description
quantity
1
6260044810
ref: 1
LEVER SET, REAR CUSHION
€ 154.50
2
0926320073
ref: 2
BEARING(20X27X30)
0926320073
€ 24.50
3
0926320071
ref: 3
BEARING(20X27X23.5)
0926320071
€ 21.50
4
6231744B00
ref: 4
SPACER,RR CUSHION LEVER FR
6231744B00
€ 14.00
5
6262408D00
ref: 5
SEAL,RR CUSHION LEVER FR DUST
6262408D00
€ 13.50
6
6265800B20
ref: 6
BOLT,RR CUSHION LEVER FR
6265800B20
€ 8.50
7
0831931128
ref: 7
NUT 12MM
0831931128
€ 4.00
8
0918014013
ref: 8
SPACER (14X20X78)
0918014013
€ 20.00
9
6262408D10
ref: 9
SEAL,RR CUSHION LEVER CTR DUST
6262408D10
€ 19.50
10
6262244B00
ref: 10
BOLT,RR CUSHION ROD LWR
6262244B00
€ 17.00
11
0831931148
ref: 11
NUT
0831931148
€ 9.00
12
6260044821
ref: 12
ROD SET,REAR CUSHION,LEFT
6260044821
€ 211.50
13
0926320071
ref: 13
BEARING(20X27X23.5)
0926320071
€ 21.50
14
0918014015
ref: 14
SPACER (14X20X63)
0918014015
€ 14.50
15
6262144B00
ref: 15
BOLT,RR CUSHION ROD UPR
6262144B00
€ 14.00
16-1
6210031D0028W
ref: 16-1
MODEL M/N
ABSORBER ASSY,REAR SHOCK (WHITE)
€ 524.00
16-2
6210031D00019
ref: 16-2
MODEL P/R/S/T
ABSORBER ASSY,RR SHOCK
€ 750.50
17
6217500B00
ref: 17
BEARING,RR CUSHION LEVER
6217500B00
€ 66.00
18
6265734A01
ref: 18
RING,STOPPER
6265734A01
€ 1.50
19
6222614520
ref: 19
SEAL,DUST RR SHOCK ABSORBER
6222614520
€ 12.50
20
6268414520
ref: 20
COLLAR
6268414520
€ 7.00
21
0910310064
ref: 21
BOLT(10X50)
0910310064
€ 4.50
22
0910310101
ref: 22
BOLT(10X54)
0910310101
€ 3.00
23
0915910058
ref: 23
NUT
0915910058
€ 4.00
