BATTERY (MODEL T)

DR800S 1994 (R) (E04 E18 E21 E22 E34 E53)

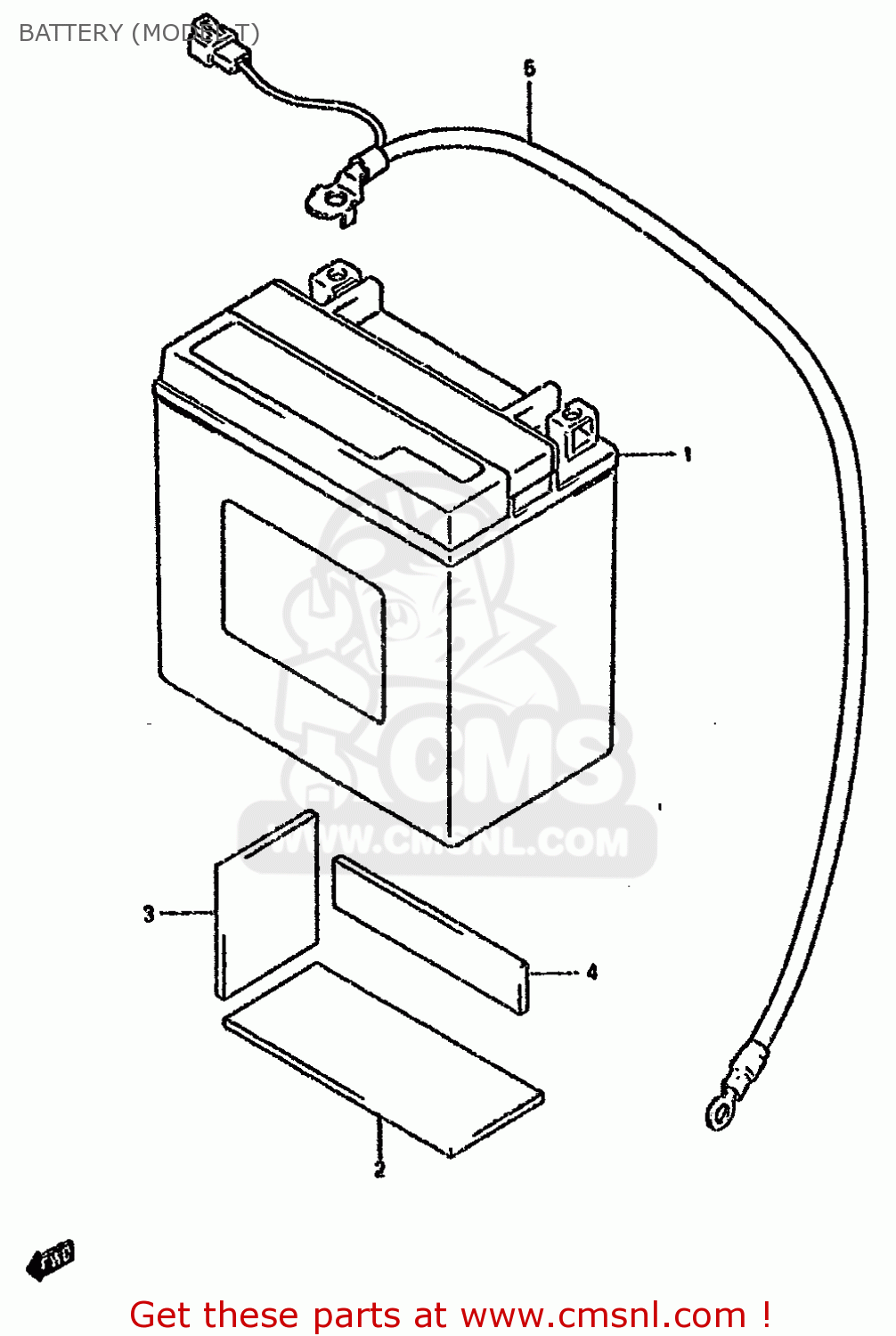

Battery (model t) diagram DR800S 1994 (R) (E04 E18 E21 E22 E34 E53)

prices are in EUR

ref

part #

description

quantity

3361026D10
ref: 1

BATTERY ASSY (12V) YTX14-BS

€ 116.50

3365137000
ref: 2
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3365137000
ref: 3
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3365137000
ref: 4
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3386031D00
ref: 5

WIRE,BATTERY MINUS LEAD

€ 22.50

3365229100
ref: 4
-33651-37000

PROTECTOR,20X9

€ 5.00

3386031D00
ref: 5

WIRE,BATTERY MINUS LEAD

€ 22.50
