MUFFLER (MODEL N/P/R/S/T)

DR800S 1994 (R) (E04 E18 E21 E22 E34 E53)

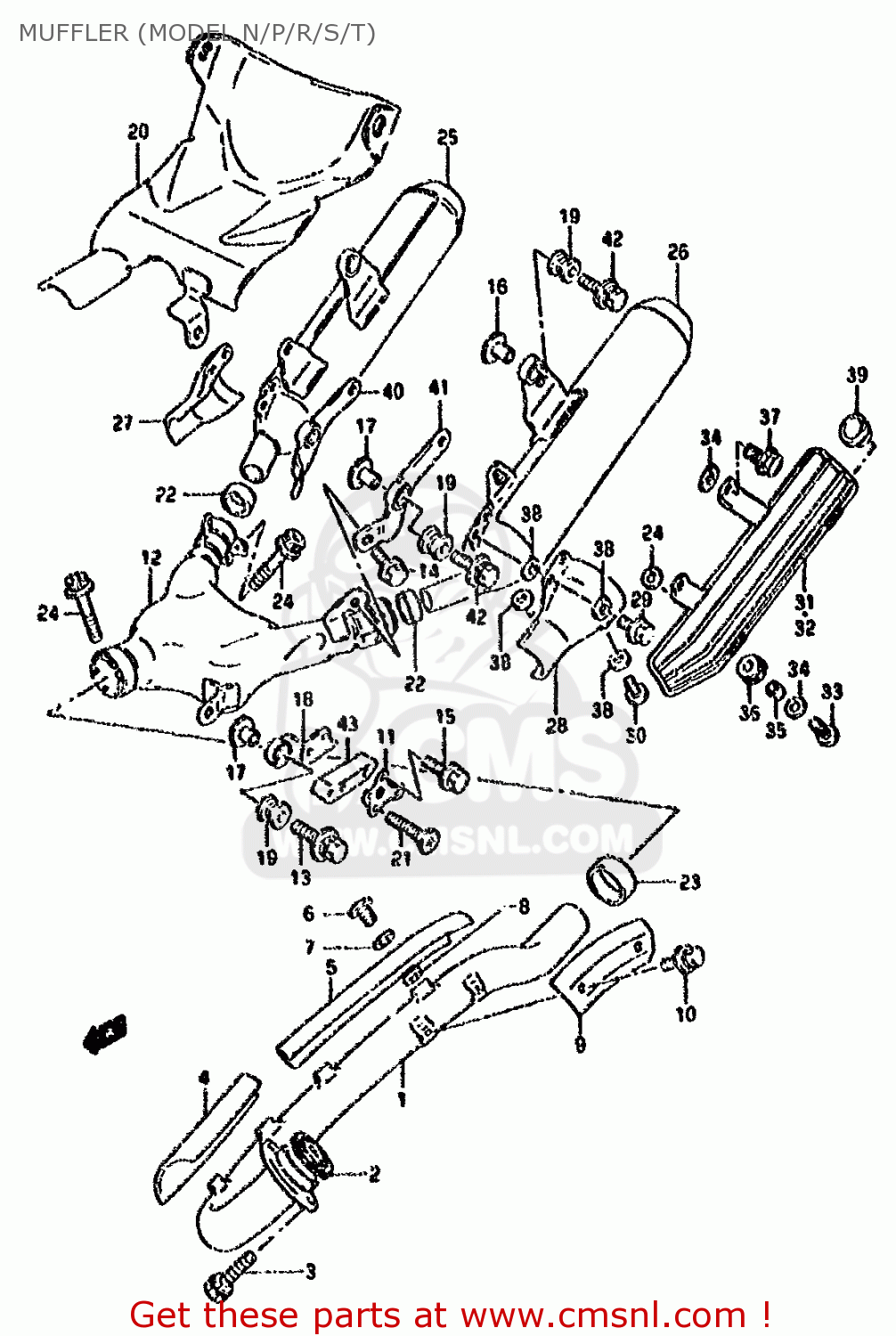

Muffler (model n/p/r/s/t) diagram DR800S 1994 (R) (E04 E18 E21 E22 E34 E53)

MUFFLER (MODEL N/P/R/S/T) DR800S 1994 (R) (E04 E18 E21 E22 E34 E53)
MUFFLER (MODEL N/P/R/S/T) DR800S 1994 (R) (E04 E18 E21 E22 E34 E53)
MUFFLER (MODEL N/P/R/S/T) DR800S 1994 (R) (E04 E18 E21 E22 E34 E53)
prices are in EUR
ref
part #
description
quantity
1-1
1415031D00
ref: 1-1
MODEL N/P/R/S
PIPE COMP,EXH
1415031D00
€ 309.00
1-2
1415031D10
ref: 1-2
MODEL T
PIPE,EXHAUST
€ 309.00
2-1
1418144B00
ref: 2-1
MODEL N/P/R/S
GASKET,EXHAUST PIPE (NAS)
1418144B00
€ 8.00
2-2
1410131D00
ref: 2-2
MODEL T
GASKET,EXHAUST PIPE
€ 0.00
3
0157008253
ref: 3
BOLT
€ 2.50
4
1418031D00
ref: 4
COVER,EXHAUST PIPE
€ 25.00
5
1418044B20
ref: 5
COVER,EXHAUST PIPE
1418044B20
€ 37.00
6
0913906076
ref: 6
SCREW(6X10)
0913906076
€ 2.50
7
0916006082
ref: 7
WASHER(6.5X13X1.0)
0916006082
€ 1.50
8
0916806121
ref: 8
GASKET(5.8X13X1.8) (NAS)
0916806121
€ 3.00
9
1478244B01
ref: 9
PLATE,HEAT GUARD
€ 12.50
10
0158006103
ref: 10
BOLT
€ 2.00
11
1475131D00
ref: 11
PLATE,MANF GUARD
1475131D00
€ 4.50
12
1421031D00
ref: 12
BODY,MANF
1421031D00
€ 471.00
13
0911808145
ref: 13
BOLT(8X40)
0911808145
€ 7.50
14
0910310256
ref: 14
BOLT (10X20)
€ 3.00
15
0155006163
ref: 15
BOLT
0155006163
€ 2.50
16
0918008151
ref: 16
SPACER(8.6X12X17.5)
0918008151
€ 6.00
17
0918008168
ref: 17
SPACER(8.6X12X20)
0918008168
€ 8.00
18
1474531D02
ref: 18
BRACKET,MANIFOLD SUPPORT
€ 22.00
19
0932012043
ref: 19
CUSHION
0932012043
€ 8.00
20
1473031D00
ref: 20
GUARD,MANF HEAT
1473031D00
€ 141.50
21
0212206353
ref: 21
SCREW
€ 2.00
22-1
1477114D00
ref: 22-1
MODEL N/P/R/S
CONNECTOR,MUFFLER JOINT
1477114D00
€ 19.50
22-2
1477113E00
ref: 22-2
MODEL T
CONNECTOR,MUFFLER
1477113E00
€ 12.00
23-1
1477144B00
ref: 23-1
MODEL N/P/R/S
CONNECTOR,MUFFLER
1477144B00
€ 19.50
23-2
1477146E00
ref: 23-2
MODEL T
CONNECTOR,MUFFLER
1477146E00
€ 13.50
24
0910308222
ref: 24
BOLT(8X40)
0910308222
€ 3.00
25
1430531D50
ref: 25
MUFFLER,R
€ 599.50
26
1430631D50
ref: 26
MUFFLER,L
€ 571.50
27
1478631D10
ref: 27
COVER,MUFFLER FR,R
1478631D10
€ 42.00
28
1479631D10
ref: 28
COVER,MUFFLER FR,L
1479631D10
€ 38.50
29
0155006123
ref: 29
BOLT
0155006123
€ 2.50
30
0913906076
ref: 30
SCREW(6X10)
0913906076
€ 2.50
31
1471031D50
ref: 31
GUARD,LEG,R
1471031D50
€ 77.00
32
1472031D50
ref: 32
GUARD,LEG,L
€ 79.00
33
0913906067
ref: 33
SCREW(6X16)
0913906067
€ 3.00
34
0916006028
ref: 34
WASHER(6.5X18X1)
0916006028
€ 1.50
35
0918006011
ref: 35
SPACER (6.1X9X9)
0918006011
€ 2.00
36
0932009021
ref: 36
CUSHION
0932009021
€ 4.00
37-1
0155006107
ref: 37-1
MODEL N/P
BOLT
0155006107
€ 2.50
37-2
0155006103
ref: 37-2
MODEL R/S/T
BOLT
0155006103
€ 2.50
38
0916806121
ref: 38
GASKET(5.8X13X1.8) (NAS)
0916806121
€ 3.00
39
0932110018
ref: 39
CUSHION
0932110018
€ 5.00
40
1476531D00
ref: 40
BRACKET, MUFFLER SUPPORT RH
1476531D00
€ 24.50
41
1477531D00
ref: 41
BRACKET,MUFFLER SUPPORT
1477531D00
€ 23.00
42
0911808145
ref: 42
BOLT(8X40)
0911808145
€ 7.50
43
6134814D00
ref: 43
DEFENSE,CHAIN GUIDE
6134814D00
€ 17.50
