SECOND AIR (E18,E39)

DR800S 1994 (R) (E04 E18 E21 E22 E34 E53)

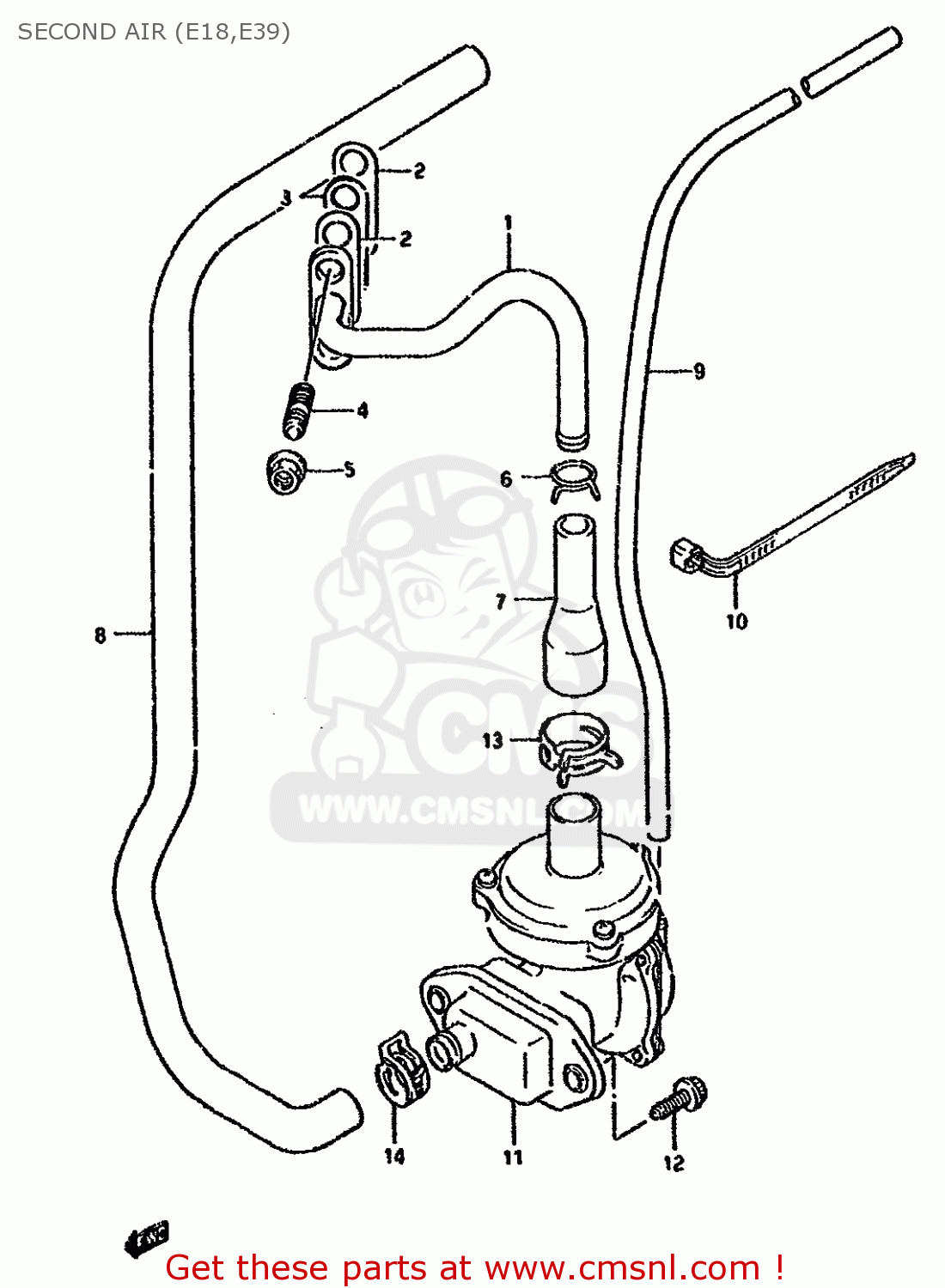

Second air (e18,e39) diagram DR800S 1994 (R) (E04 E18 E21 E22 E34 E53)

prices are in EUR

ref

part #

description

quantity

1842031D00
ref: 1

PIPE,2ND AIR

€ 0.00

1844131D00
ref: 2

GASKET (NA)

€ 6.50

1844231D00
ref: 3

PLATE

€ 0.00

4-1

0142108165
ref: 4-1
MODEL M/N/P

BOLT,STUD

€ 2.00

4-2

0142108163
ref: 4-2
MODEL R/S/T

BOLT

€ 2.00

5-1

0831616085
ref: 5-1
MODEL M/N/P

NUT 8MM

€ 3.00

5-2

0831610083
ref: 5-2
MODEL R/S/T

NUT

€ 3.00

0940115301
ref: 6

CLIP

€ 2.50

1844631D00
ref: 7

HOSE, 2ND AIR

€ 22.00

1844531D00
ref: 8

HOSE, 2ND AIR NO.4

€ 0.00

0935940701600
ref: 9
L:600-550

HOSE(4X7X600)

€ 9.00

10-1

0940714403
ref: 10-1

CLAMP(L:125)

€ 2.50

10-2

0940718402
ref: 10-2
MODEL M/N/P/R/S

CLAMP(L:165)

€ 2.50

10-3

0940718403
ref: 10-3
MODEL T

CLAMP L:165

€ 2.50

10-4

0940725401
ref: 10-4
E18

CLAMP(L:235)

€ 4.00

1845031D00
ref: 11

VALVE ASSY, 2ND AIR REED

€ 0.00

0712006163
ref: 12

BOLT MAGNETO S

€ 2.50

0940123403
ref: 13

CLIP

€ 4.50

0940115404
ref: 14

CLIP

€ 2.50
