HEADLAMP (MODEL R/S/T)

DR800S 1994 (R) (E04 E18 E21 E22 E34 E53)

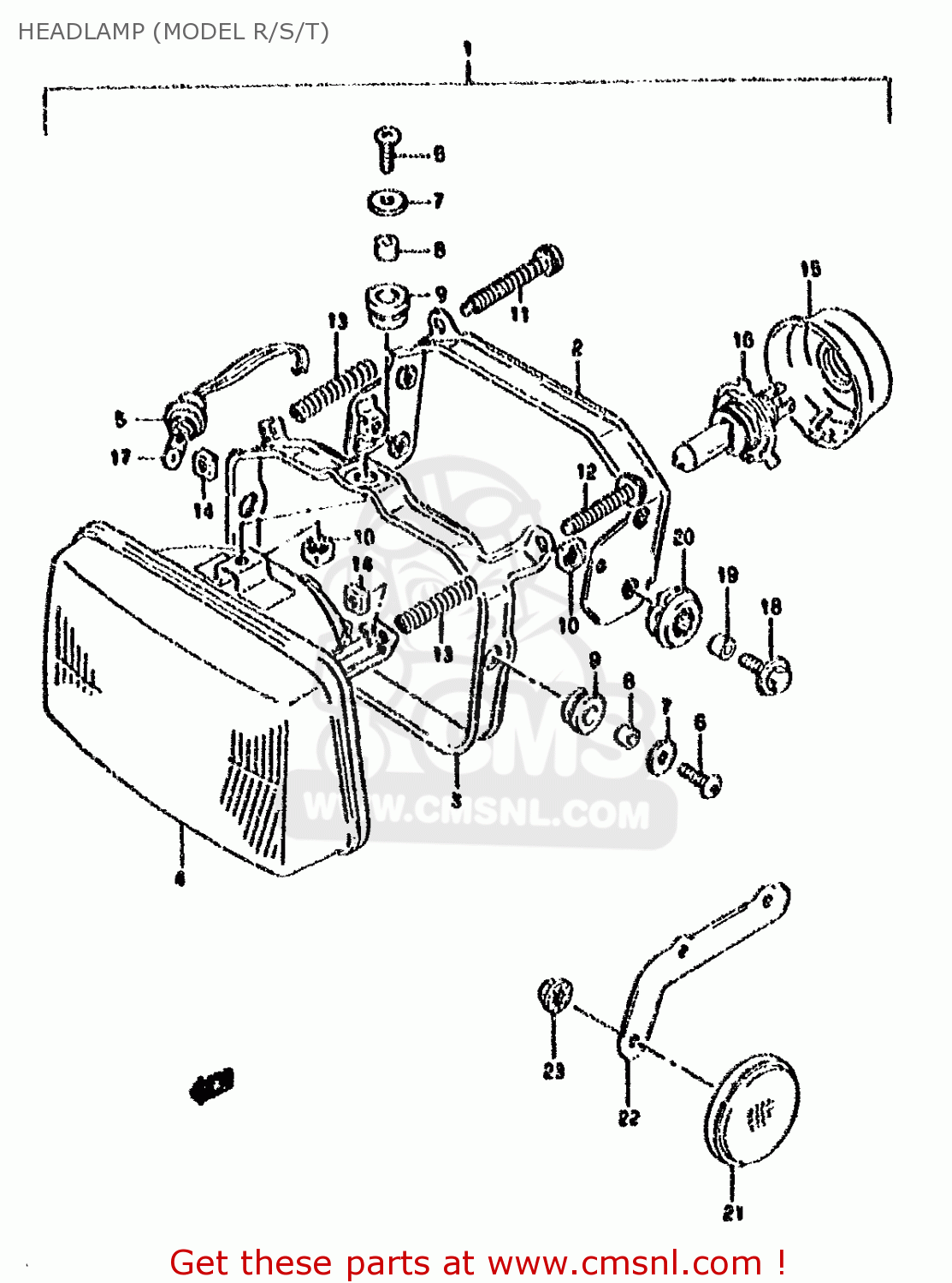

Headlamp (model r/s/t) diagram DR800S 1994 (R) (E04 E18 E21 E22 E34 E53)

HEADLAMP (MODEL R/S/T) DR800S 1994 (R) (E04 E18 E21 E22 E34 E53)
HEADLAMP (MODEL R/S/T) DR800S 1994 (R) (E04 E18 E21 E22 E34 E53)
HEADLAMP (MODEL R/S/T) DR800S 1994 (R) (E04 E18 E21 E22 E34 E53)
prices are in EUR
ref
part #
description
quantity
1
3510031D50999
ref: 1
HEADLAMP ASSY
€ 218.50
2
3514144B01
ref: 2
HOUSING
3514144B01
€ 29.00
3
3513044B01
ref: 3
RING
€ 31.00
4
3512131D00
ref: 4
UNIT ASSY
€ 152.50
5
3611842A60
ref: 5
SOCKET
€ 0.00
6-1
3515131D00
ref: 6-1
MODEL R
SCREW,HEADLAMP ADJUST
€ 2.00
6-2
0211205163
ref: 6-2
MODEL S/T
SCREW
0211205163
€ 2.00
7-1
3513845230
ref: 7-1
MODEL R
WASHER
3513845230
€ 2.00
7-2
0916005003
ref: 7-2
MODEL S/T
WASHER (5.5X18X1)
€ 2.00
8
3513345230
ref: 8
SPACER
3513345230
€ 2.00
9
3513945230
ref: 9
CUSHION
3513945230
€ 1.50
10
3513545900
ref: 10
NUT
3513545900
€ 2.50
11
0211205455
ref: 11
-35151-31D10
SCREW, 5X45
0211205455
€ 4.00
12
0211206553
ref: 12
-35151-31D20
SCREW
0211206553
€ 2.00
13
3515431D00
ref: 13
SPRING,ADJUSTER
3515431D00
€ 4.00
14
3513531D00
ref: 14
NUT
3513531D00
€ 4.00
15
3517301440
ref: 15
COVER,SOCKET
3517301440
€ 10.00
16
0947112060
ref: 16
BULB(12V60/55W,H4)
0947112060
€ 8.00
17
0947112063
ref: 17
BULB(12V4W)
0947112063
€ 6.00
18-1
0911606011
ref: 18-1
MODEL R
BOLT 6X20
€ 2.00
18-2
0911606167
ref: 18-2
MODEL S/T
BOLT(6X20)
0911606167
€ 2.00
19
0918006030
ref: 19
SPACER (6.8X10X10)
0918006030
€ 2.00
20
0932009018
ref: 20
CUSHION
0932009018
€ 2.00
21
3595014A00
ref: 21
E18
REFLECTOR,REFLEX FR
3595014A00
€ 15.00
22
3595631D00
ref: 22
E18
BRACKET
€ 0.00
23
0831620053
ref: 23
E18
NUT
0831620053
€ 2.00
21
3595014A00
ref: 21
E18,E39
REFLECTOR,REFLEX FR
3595014A00
€ 15.00
22
3595631D00
ref: 22
E18,E39
BRACKET
€ 0.00
23
0831626058
ref: 23
E18,E39
NUT 5MM
€ 2.00
