SEAT
DR800S 1994 (R) (E04 E18 E21 E22 E34 E53)

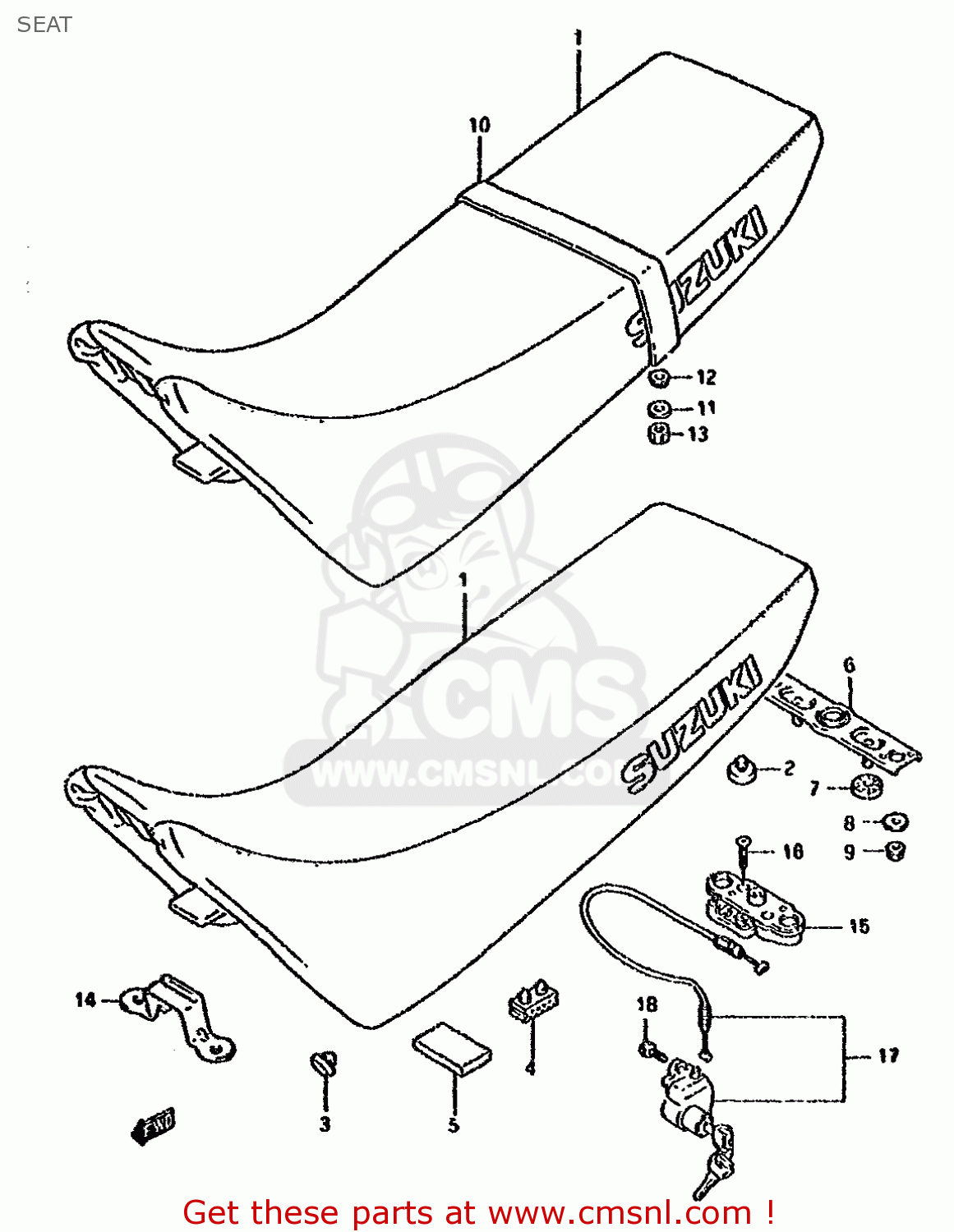

Seat diagram DR800S 1994 (R) (E04 E18 E21 E22 E34 E53)
SEAT DR800S 1994 (R) (E04 E18 E21 E22 E34 E53)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510031D01J03
ref: 1-1
MODEL M/N FOR 22P,1M
SEAT SET
€ 508.00
1-2
4510031D01A4D
ref: 1-2
MODEL R/P/S FOR 33J
SEAT SET (33J)
€ 508.00
1-3
4510031D01J04
ref: 1-3
MODEL M/N/P/R FOR 12
SEAT SET
€ 293.50
1-4
4510031D01D4L
ref: 1-4
MODEL S FOR 1LE
SEAT SET
€ 293.50
1-5
4510031D02A4D
ref: 1-5
MODEL T FOR 33J,Y98
SEAT SET
€ 508.00
1-6
4510031D11L47
ref: 1-6
MODEL N E1 FOR 1MW
SEAT SET
€ 0.00
1-7
4510031D11L48
ref: 1-7
MODEL N E1 FOR 12F
SEAT SET
€ 0.00
1-8
4510031D11B3Y
ref: 1-8
MODEL P E1 FOR 33J
SEAT SET
€ 0.00
1-9
4510031D11L47
ref: 1-9
MODEL P E1 FOR 12F
SEAT SET
€ 0.00
2
0932110012
ref: 2
CUSHION
€ 3.00
3
0932910001
ref: 3
CUSHION
€ 2.50
4
4514931300
ref: 4
CUSHION,SEAT(40X20X15)
€ 2.00
5
4525502100
ref: 5
CUSHION,BATTERY
€ 3.00
6
4521022A00
ref: 6
STRIKER,SEAT LOCK
€ 80.50
7
4521313601
ref: 7
CUSHION,SEAT LOCK(10X22X6)
€ 1.50
8
0821206201
ref: 8
WASHER
€ 1.50
9
0831620063
ref: 9
NUT
€ 2.00
10
4518031D106NF
ref: 10
E1
BAND,SEAT GRIP
€ 0.00
11
0916006006
ref: 11
E1
WASHER
€ 2.00
12
0916906071
ref: 12
E1
WASHER
€ 2.50
13
0831620063
ref: 13
E1
NUT
€ 2.00
14
4511931D00
ref: 14
BRACKET,SEAT FR FOOK
€ 5.50
15
4522020A01
ref: 15
BRACKET,SEAT SUPPORT,RIGHT
€ 79.50
16
0212206303
ref: 16
SCREW
€ 2.00
17
9570031850
ref: 17
LOCK SET, SEAT
€ 95.50
18
0910606075
ref: 18
BOLT(6X12)
€ 2.50
