ELECTRICAL
DR800SU 1993 (P) GERMANY (E22)

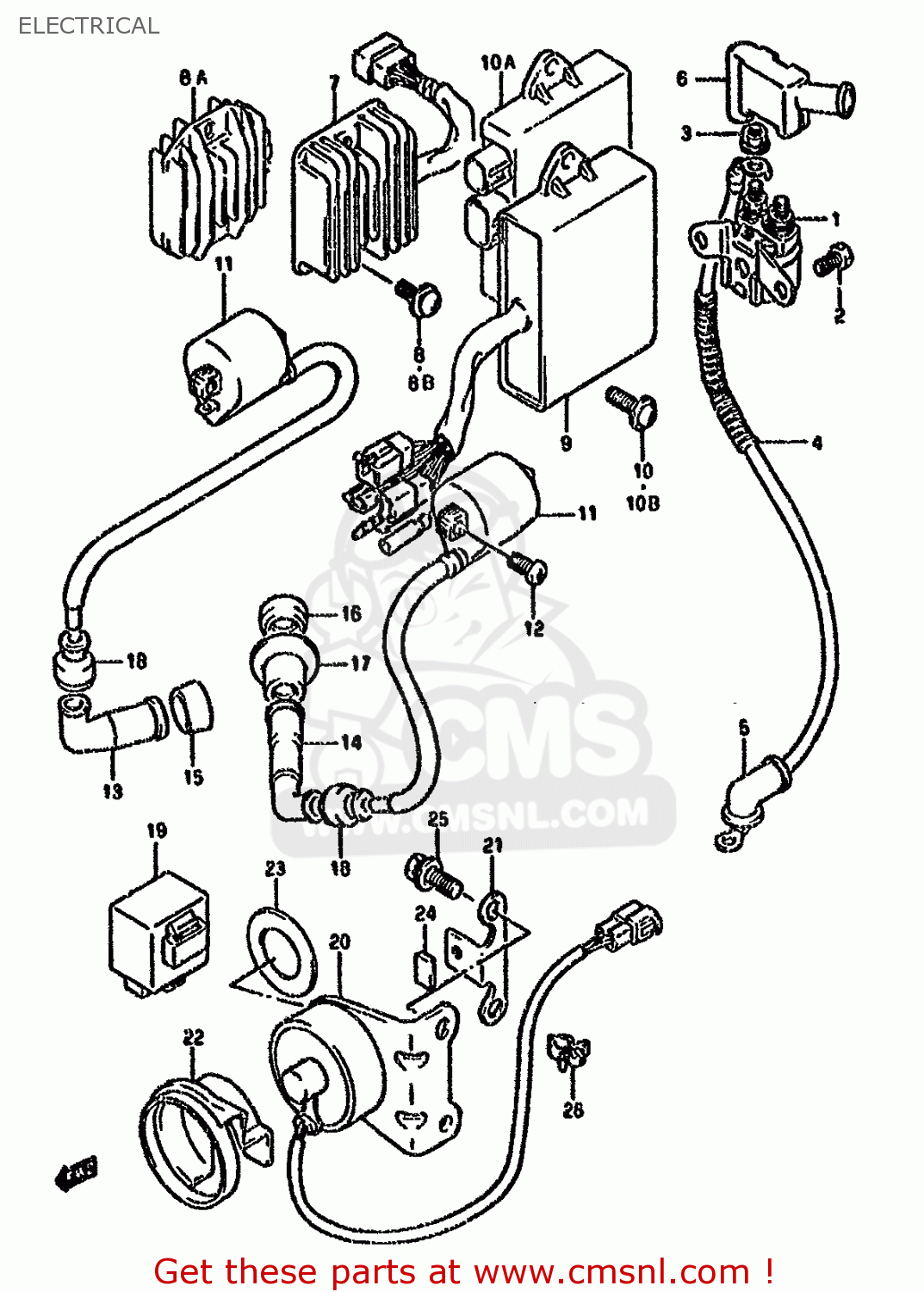

Electrical diagram DR800SU 1993 (P) GERMANY (E22)
ELECTRICAL DR800SU 1993 (P) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
3180049100
ref: 1
RELAY ASSY,STARTING MOTOR
€ 89.00
2-1
0110406086
ref: 2-1
MODEL M/N/P
BOLT
€ 2.50
2-2
0910006157
ref: 2-2
MODEL R/S/T
BOLT(6X8)
€ 2.50
3
0836135066
ref: 3
NUT
€ 2.00
4
3381031D00
ref: 4
WIRE,STARTER MOTOR LEAD
€ 24.50
5
3186148B10
ref: 5
CAP,STARTER MOTOR LEAD
€ 4.50
6
3186131D00
ref: 6
CAP, STARTER RELAY
€ 4.00
7
3280034A01
ref: 7
MODEL M/N/P/R/S-3280
RECTIFIER ASSY
€ 194.50
8-1
0211216166
ref: 8-1
MODEL M/N/P
SCREW
€ 2.50
8-2
0214206163
ref: 8-2
MODEL R/S
SCREW
€ 2.50
8A
3280032E00
ref: 8A
MODEL T
RECTIFIER ASSY
€ 182.50
8B
0214206203
ref: 8B
MODEL T
SCREW
€ 2.00
9
3290031D00
ref: 9
MODEL M/N/P/R/S
UNIT,CDI
€ 387.00
10-1
0215206166
ref: 10-1
MODEL M/N/P
SCREW
€ 2.00
10-2
0211216163
ref: 10-2
MODEL R/S
SCREW
€ 2.00
10A
3290031D10
ref: 10A
MODEL T
CDI UNIT
€ 538.50
10B
0214206163
ref: 10B
MODEL T
SCREW
€ 2.50
11
3341044B00
ref: 11
COIL ASSY,IGNITION
€ 102.50
12-1
0211206206
ref: 12-1
MODEL M/N/P
SCREW
€ 2.00
12-2
0211206203
ref: 12-2
MODEL R/S/T
SCREW, 6X20
€ 2.00
13
3351043010
ref: 13
CAP,SPARK PLUG
€ 11.50
14
3351048B10
ref: 14
CAP,SPARK PLUG
€ 29.50
15
3354124510
ref: 15
SEAL,SPARK PLUG CAP
€ 7.00
16-1
3354127A22
ref: 16-1
MODEL M/N/P
SEAL,SPARK PLUG
€ 7.00
16-2
3354148B00
ref: 16-2
MODEL R/S/T
SEAL,SPARK PLUG
€ 7.00
17
3354344B00
ref: 17
COVER,SPARK PLUG CAP,L
€ 5.50
18
3354238B00
ref: 18
SEAL,HIGH TENSION CORD
€ 4.50
19
3291031D00
ref: 19
CONTROL UNIT,DECOMP
€ 110.50
20
3397031D00
ref: 20
SOLENOID ASSY,DECOMP
€ 153.50
21
3397131D00
ref: 21
STOPPER,DECOMP
€ 3.50
22
3397331D00
ref: 22
COVER DECOMP S
€ 6.50
23
3397231D10
ref: 23
CUSHION,DECOMP
€ 4.50
24
3365219B00
ref: 24
-33972-31D00
CUSHION,BATTERY(80X27X3)
€ 4.50
25-1
0118708205
ref: 25-1
MODEL M/N/P
BOLT
€ 3.50
25-2
0158008203
ref: 25-2
MODEL R/S
BOLT
€ 3.50
25-3
0155008163
ref: 25-3
MODEL T
BOLT
€ 3.00
26
0940800061
ref: 26
CLAMP
€ 2.00
