REAR CUSHION LEVER
DR800SU 1993 (P) GERMANY (E22)

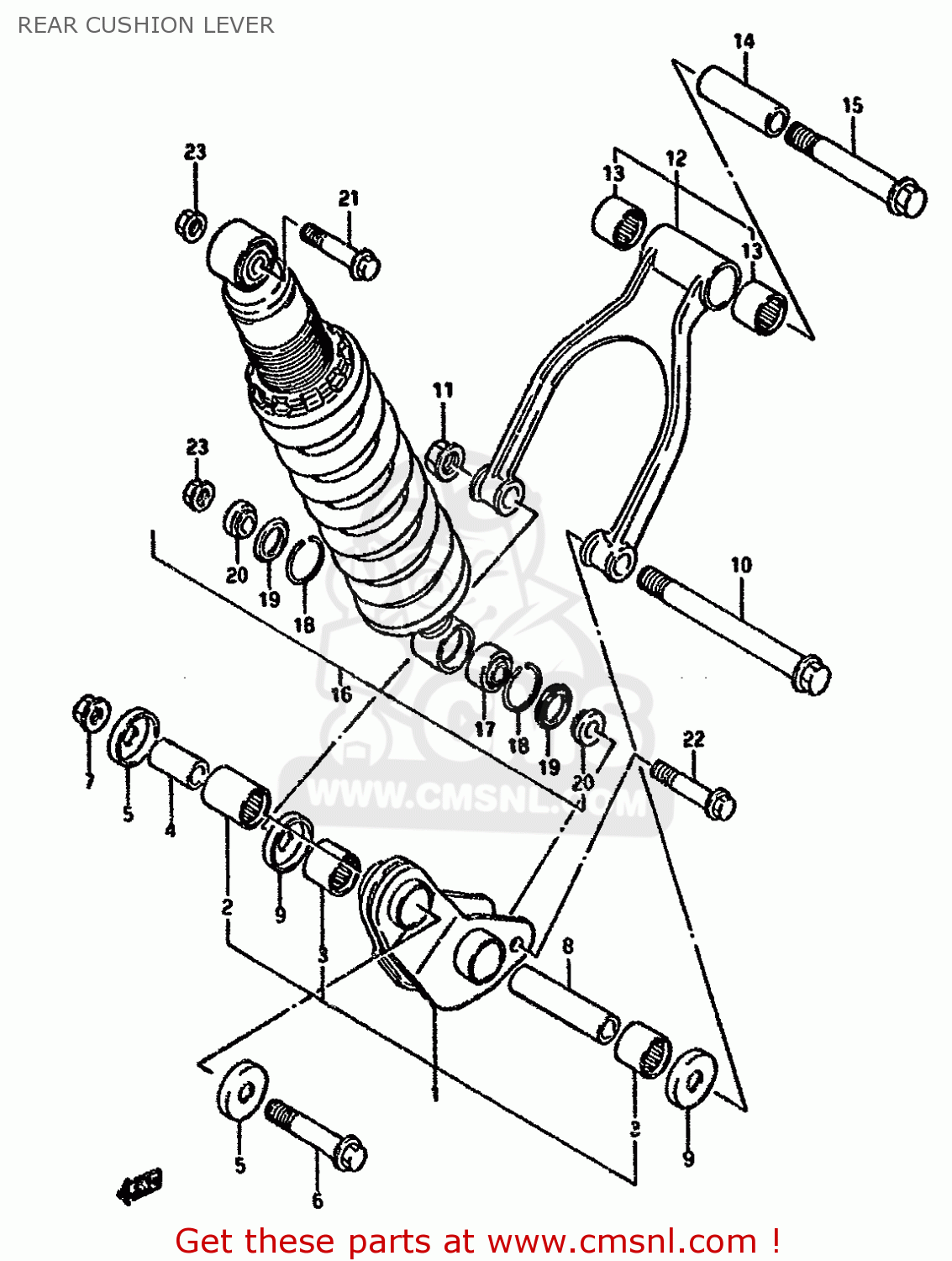

Rear cushion lever diagram DR800SU 1993 (P) GERMANY (E22)
REAR CUSHION LEVER DR800SU 1993 (P) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
6260044810
ref: 1
LEVER SET, REAR CUSHION
€ 154.50
2
0926320073
ref: 2
BEARING(20X27X30)
€ 24.50
3
0926320071
ref: 3
BEARING(20X27X23.5)
€ 21.50
4
6231744B00
ref: 4
SPACER,RR CUSHION LEVER FR
€ 14.00
5
6262408D00
ref: 5
SEAL,RR CUSHION LEVER FR DUST
€ 13.50
6
6265800B20
ref: 6
BOLT,RR CUSHION LEVER FR
€ 8.50
7
0831931128
ref: 7
NUT 12MM
€ 4.00
8
0918014013
ref: 8
SPACER (14X20X78)
€ 20.00
9
6262408D10
ref: 9
SEAL,RR CUSHION LEVER CTR DUST
€ 19.50
10
6262244B00
ref: 10
BOLT,RR CUSHION ROD LWR
€ 17.00
11
0831931148
ref: 11
NUT
€ 9.00
12
6260044821
ref: 12
ROD SET,REAR CUSHION,LEFT
€ 211.50
13
0926320071
ref: 13
BEARING(20X27X23.5)
€ 21.50
14
0918014015
ref: 14
SPACER (14X20X63)
€ 14.50
15
6262144B00
ref: 15
BOLT,RR CUSHION ROD UPR
€ 14.00
16-1
6210031D0028W
ref: 16-1
MODEL M/N
ABSORBER ASSY,REAR SHOCK (WHITE)
€ 524.00
16-2
6210031D00019
ref: 16-2
MODEL P/R/S/T
ABSORBER ASSY,RR SHOCK
€ 750.50
17
6217500B00
ref: 17
BEARING,RR CUSHION LEVER
€ 66.00
18
6265734A01
ref: 18
RING,STOPPER
€ 1.50
19
6222614520
ref: 19
SEAL,DUST RR SHOCK ABSORBER
€ 12.50
20
6268414520
ref: 20
COLLAR
€ 7.00
21
0910310064
ref: 21
BOLT(10X50)
€ 4.50
22
0910310101
ref: 22
BOLT(10X54)
€ 3.00
23
0915910058
ref: 23
NUT
€ 4.00
