Buy Suzuki DR Parts Online


STARTER CLUTCH

DR800SU 1993 (P) GERMANY (E22)

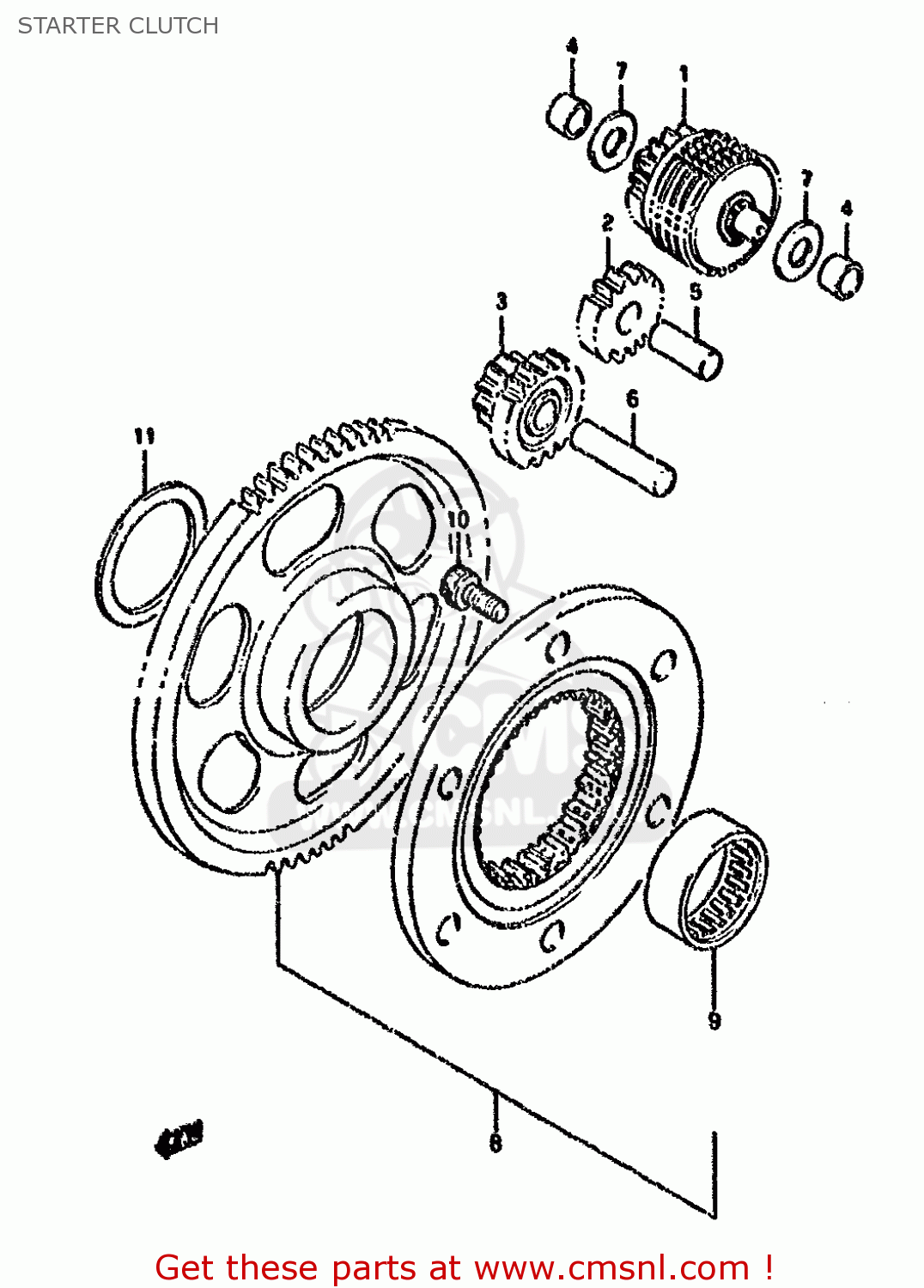

Starter clutch diagram DR800SU 1993 (P) GERMANY (E22)

STARTER CLUTCH DR800SU 1993 (P) GERMANY (E22)
STARTER CLUTCH DR800SU 1993 (P) GERMANY (E22)
STARTER CLUTCH DR800SU 1993 (P) GERMANY (E22)
prices are in EUR
ref
part #
description
quantity
1
1260031D01
ref: 1
LIMITER ASSY,S
€ 182.00
2
1261231D00
ref: 2
NT:14
GEAR,STARTER IDLE NO.2
1261231D00
€ 34.50
3
1261331D00
ref: 3
NT:10/18
GEAR,STARTER IDLE NO.3
€ 58.50
4
1261831D01
ref: 4
BUSH,LIMITER GEAR SHAFT
1261831D01
€ 17.50
5
0920210006
ref: 5
PIN
0920210006
€ 6.50
6
0920210010
ref: 6
PIN
€ 8.50
7
0821110221
ref: 7
WASHER
0821110221
€ 2.50
8
1260044841
ref: 8
CLUTCH SET,STARTER
1260044841
€ 337.50
9
0926335024
ref: 9
BEARING(35X43X18)
0926335024
€ 31.50
10
0713008163
ref: 10
-09106-08043
BOLT
0713008163
€ 3.00
11
0821140523
ref: 11
WASHER
0821140523
€ 6.00
up
