REAR WHEEL
DR800SU 1993 (P) GERMANY (E22)

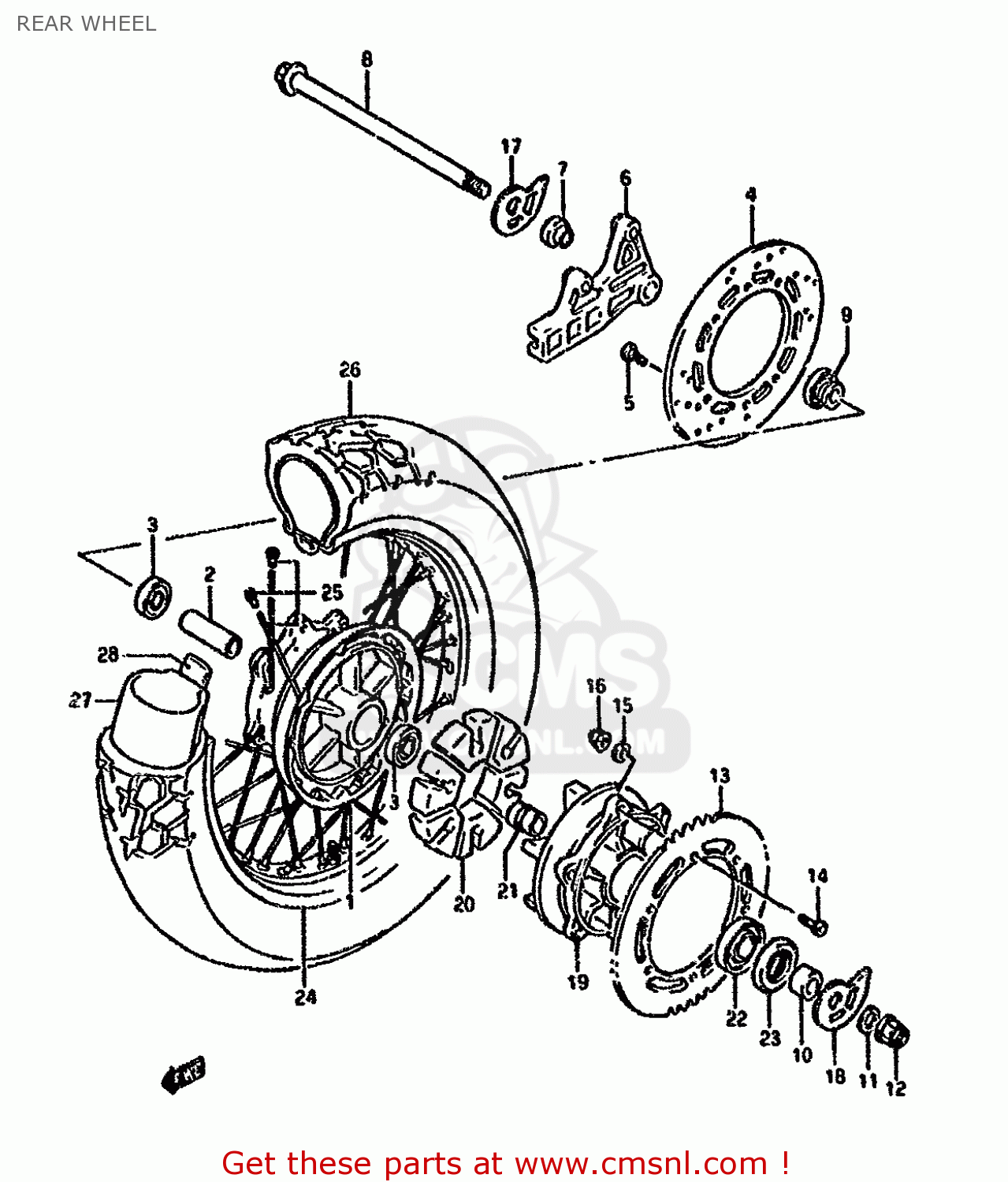

Rear wheel diagram DR800SU 1993 (P) GERMANY (E22)
REAR WHEEL DR800SU 1993 (P) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
6411044B20
ref: 1-1
MODEL M/N/P/R/S
HUB COMP,REAR WHEEL
€ 432.50
1-2
6411131D10
ref: 1-2
MODEL T
HUB,REAR WHEEL
€ 432.50
2
0918017071
ref: 2
SPACER(17.5X25X78)
€ 20.00
3
0812463037
ref: 3
BEARING
€ 18.50
4-1
6921131D00
ref: 4-1
MODEL M/N
DISC,REAR BRAKE (GOLD)
€ 370.00
4-2
6921144B00
ref: 4-2
MODEL P/R/S/T
DISC,RR BRAKE
€ 370.00
5-1
5942103A01
ref: 5-1
MODEL M/N
BOLT,BRAKE DISC
€ 4.00
5-2
5942103A10
ref: 5-2
MODEL P/R/S/T
BOLT,BRAKE DISC
€ 4.00
6
6972131D00
ref: 6
BRACKET,RR CALIPER
€ 106.50
7
0918017096
ref: 7
SPACER (17X21X10)
€ 14.00
8-1
6471131D00
ref: 8-1
MODEL M/N
AXLE, REAR
€ 50.50
8-2
6471131D01
ref: 8-2
MODEL P/R/S/T
AXLE ,REAR
€ 50.50
9
6475038211
ref: 9
SPACER,RR AXLE,L
€ 12.00
10
0918017090
ref: 10
SPACER(17X33X22.4)
€ 14.50
11
0916017013
ref: 11
WASHER (17X30X3.2)
€ 2.00
12
0831931168
ref: 12
NUT
€ 12.50
13-1
6451131D00
ref: 13-1
MODEL M/N/P
SPROCKET,RR(47T)
€ 57.50
13-2
6451131D10
ref: 13-2
MODEL R/S/T
SPROCKET,RR(NT47)
€ 98.50
14
0912008010
ref: 14
BOLT(8X30.5)
€ 2.50
15-1
0832211088
ref: 15-1
MODEL M/N/P
WASHER
€ 2.00
15-2
0832201083
ref: 15-2
MODEL R/S/T
WASHER
€ 1.50
16
0831931087
ref: 16
NUT
€ 2.50
17
6141131D00
ref: 17
ADJUSTER,CHAIN,R
€ 15.00
18
6142131D00
ref: 18
ADJUSTER,CHAIN,L
€ 13.50
19
6461144B20
ref: 19
DRUM,RR SPROCKET
€ 213.00
20
6465144B01
ref: 20
ABSORBER,RR HUB SHOCK
€ 10.50
21
6473331300
ref: 21
RETAINER,RR SPROCKET DRUM
€ 16.50
22
0926225073
ref: 22
BEARING(25X62X17)
€ 21.50
23
0928533001
ref: 23
SEAL,OIL(33X62X7)
€ 20.00
24
6531144B30
ref: 24
RIM,RR WHEEL(17XMT2.50)
€ 377.50
25
6532044B10
ref: 25
SPOKE SET,RR
€ 79.00
26
6511031D00
ref: 26
TIRE,REAR 130/80-17 65
€ 133.00
27
6520049030
ref: 27
TUBE ASSY,WHEEL INNER
€ 43.50
28
6526144B10
ref: 28
PROTECTOR,WHL INR TUBE
€ 4.50
